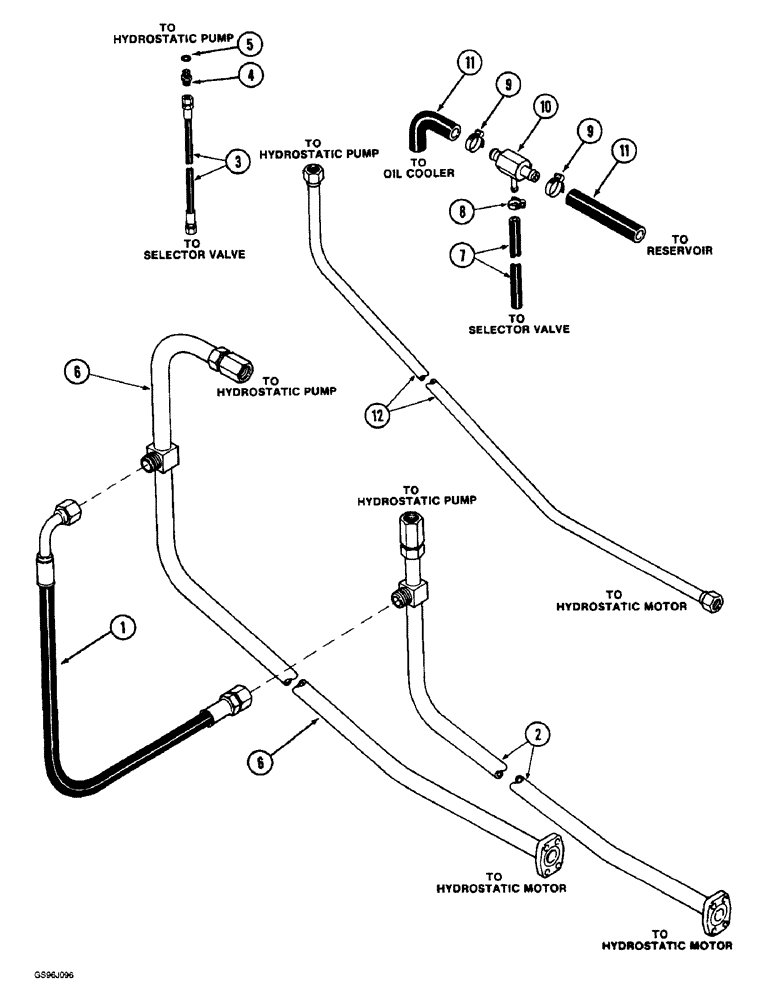

Запчасти Case IH 1660 (5-48) - HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0036301 (04) - STEERING

1

1304931C1

HOSE,19.05mm ID x 762mm L

- valve pressure, 3/4 ID x 30 inch (762 mm) long

2шт.

2

1301422C2

TUBE

- drive forward upper pressure

1шт.

3

32-309

HOSE

- valve pressure, 36 inch (914 mm) long

1шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch thread

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

1301423C2

TUBE

- drive reverse upper pressure

1шт.

7

1315504C1

HOSE

- housing drain, 3/8 ID x 47 inch long

1шт.

8

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

1шт.

9

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

10

196709C1

TEE

- return hose, 3/4 x 3/4 x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - return, 7 inch (178 mm) long, cut from bulk hose 180720C2

1шт.

12

1304937C1

HYD TUBE

TUBE - upper bleed

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 25 foot (7620 mm) roll, sold by the piece

1шт.
