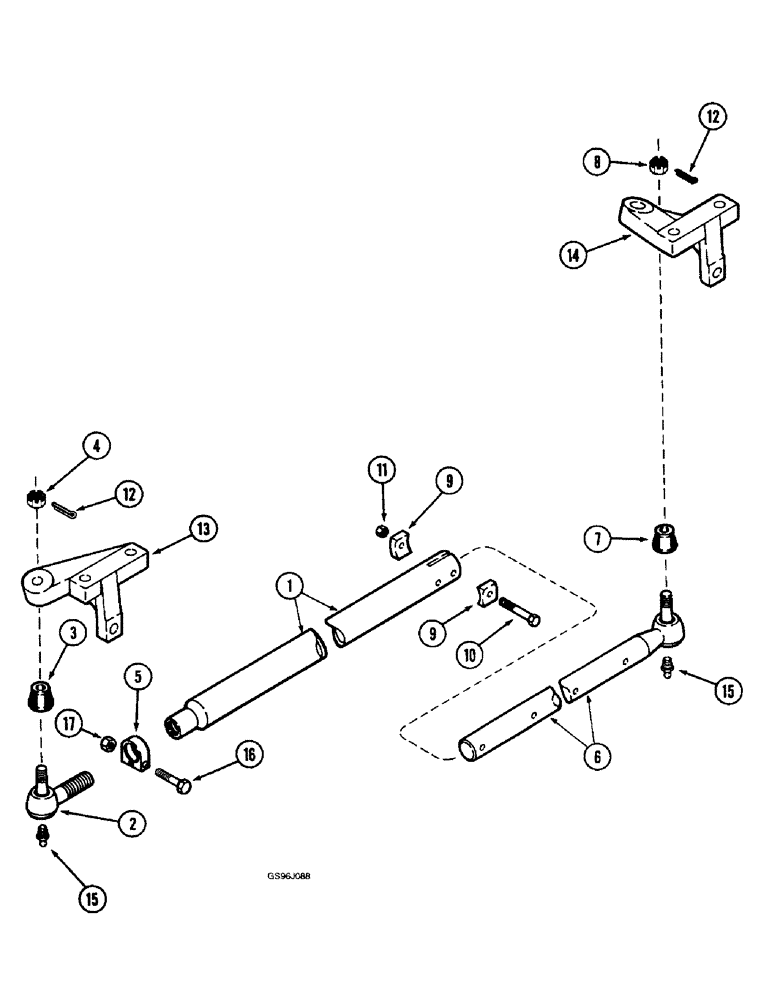

Запчасти Case IH 1660 (5-32) - STEERING TIE ROD, 68 TO 88 INCH ADJUSTABLE AXLE, RICE COMBINE ONLY (04) - STEERING

186603C91

ROD

ASSEMBLY - tie, 68 to 88 inch axle, Includes: Ref. 1 - 4

1шт.

1

180802C1

TUBE,1.533" ID x 68.88" L

- tie rod

1шт.

2

A43376

JOINT

END ASSEMBLY - tie rod, right-hand (Replaces end assembly 180798C91), Includes: Ref. 3 and 4

1шт.

3

A31186

BOOT

SEAL - dust, tie rod end (Replaces seal 180800C1)

1шт.

4

358901R1

SLOTTED NUT

- hex slotted, 5/8 inch NF

1шт.

5

446308C91

CLAMP

ASSEMBLY - tie rod, 1-3/8 inch

1шт.

5

1319476C91

CLAMP

ASSEMBLY - tie rod, 1-1/2 inch, Includes: Ref. 6 and 9

1шт.

6

180803C91

JOINT

END ASSEMBLY - tie rod, left-hand, Includes: Ref. 7 and 8

1шт.

7

A31186

BOOT

SEAL - dust, tie rod end (Replaces seal 180800C1)

1шт.

8

358901R1

SLOTTED NUT

- hex slotted, 5/8 inch NF

1шт.

9

A43369

CLAMP

- (Replaces washer 180586C1)

2шт.

10

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

13

REF

INSTRUCTION

ARM - steering, right-hand, see Fig. 5-26

1шт.

14

REF

INSTRUCTION

ARM - steering, left-hand, see Fig. 5-26

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

16

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

17

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

11

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.
