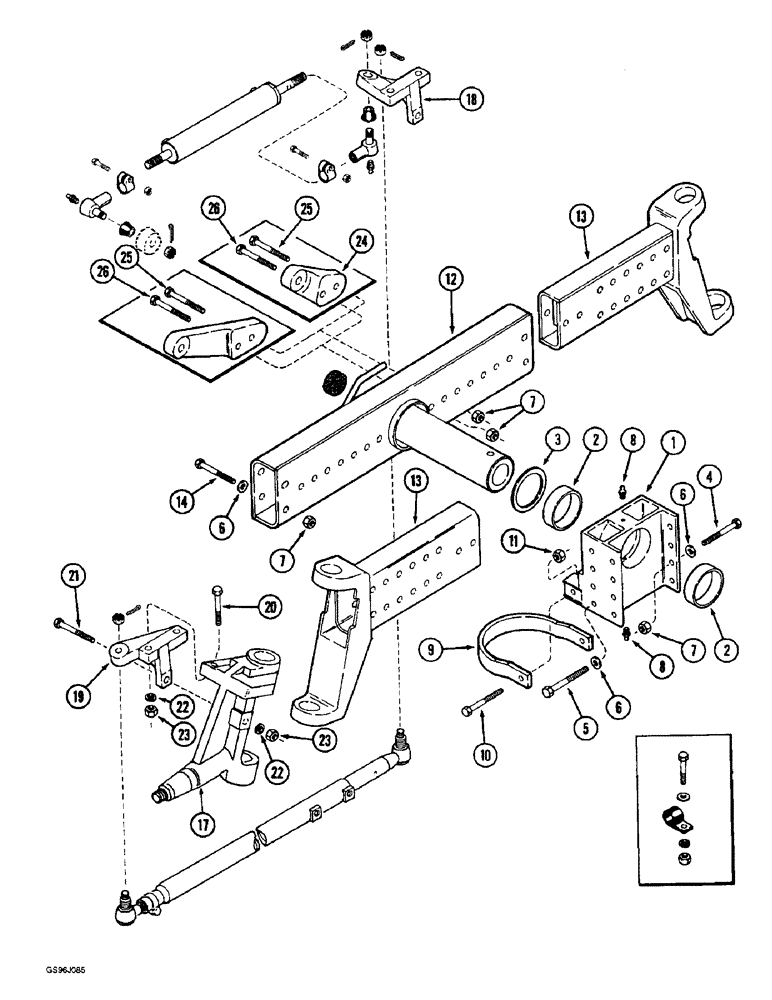

Запчасти Case IH 1660 (5-26) - STEERING AXLE, ADJUSTABLE, RICE COMBINE (04) - STEERING

1

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

2шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

1шт.

4

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

(Replaces bolt 24896R1) Hex, 3/4"-10 x 5", G8

6шт.

5

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

6

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

11шт.

7

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

16шт.

8

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

9

1302625C1

CHANNEL

STRAP - tow

1шт.

10

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

Use with axle 182797C3 Hex, 5/8"-11 x 2 3/4", G8

2шт.

10

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

Use with axle 1302522C2 Hex, 5/8"-11 x 3", G8

2шт.

11

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8, use with axle 182797C3

2шт.

11

1338079C1

FLANGE NUT

- self-locking, hex flange, special, 5/8 inch NC, use with axle 1302522C2

2шт.

12

182797C3

AXLE

- adjustable, 68 to 88 inch

1шт.

12

1302522C3

CENTER AXLE

AXLE - adjustable, 92 to 120 inch

1шт.

13

186595C2

EXTENSION

- axle, 68 to 88 inch, use with 182797C3 axle

2шт.

13

186045C2

EXTENSION ASSY.

EXTENSION - axle, 92 - 120 inch, use with 1302522C2 axle

2шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

15

186598C1

BRACKET

ANCHOR - steering cylinder, 68 to 88 inch axle

1шт.

16

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

2шт.

17

REF

INSTRUCTION

KNUCKLE - steering, see Fig. 5-38

2шт.

18

186641C1

LEVER

ARM - steering, left-hand

1шт.

19

186639C1

LEVER

ARM - steering, right-hand

1шт.

20

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

21

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

23

429-1010

NUT,5/8"-11, G8

6шт.

24

133319A1

SUPPORT

ANCHOR - steering cylinder, 92 to 120 inch axle

1шт.

25

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

26

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.
