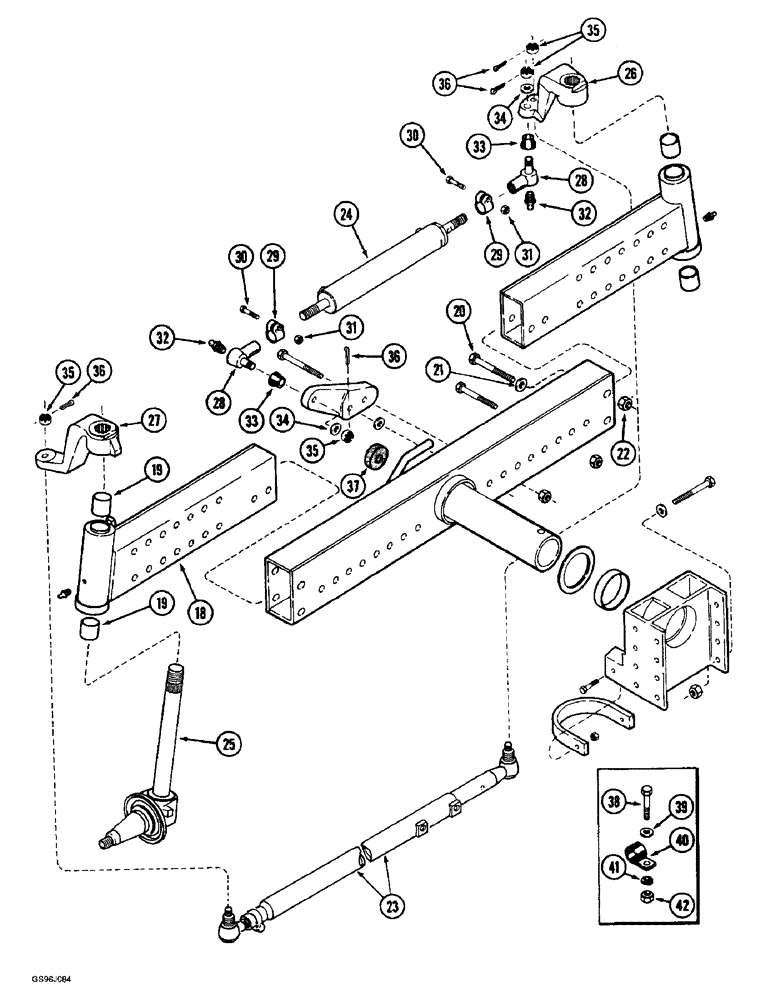

Запчасти Case IH 1660 (5-24) - STEERING AXLE, ADJUSTABLE, EXCEPT POWER GUIDE AXLE, EXCEPT RICE COMBINE (CONTD) (04) - STEERING

18

183455C91

EXTENSION

ASSEMBLY - axle, right-hand, 92 to 120 inch axle, Includes: Ref. 19

1шт.

18

177764C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, right-hand, 67 to 91 inch axle, Includes: Ref. 19

1шт.

18

178489C91

EXTENSION

ASSEMBLY - axle, right-hand, 56 to 68 inch axle, Includes: Ref. 19

1шт.

19

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

2шт.

20

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

1шт.

20

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

21

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

22

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

1шт.

23

REF

INSTRUCTION

ROD ASSEMBLY - tie, parts list Fig. 5-30

1шт.

24

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Fig. 5-12

1шт.

25

1315374C1

STEERING KNUCKLE

KNUCKLE - steering, see Fig. 5-36

1шт.

26

193911C3

ARM

- steering, left-hand

1шт.

27

193912C3

STEERING ARM

- steering, right-hand

1шт.

28

186796C1

BALL JOINT

SOCKET ASSEMBLY - cylinder end, Includes: Ref. 29 - 32

2шт.

29

384371R1

CLAMP

- socket

1шт.

30

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

31

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self locking, 7/16 inch NC (Replaces nut 9413966)

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

33

A41424

SEAL

- socket end (Replaces seal 382562R1)

2шт.

34

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch (Replaces washer 21712R1)

2шт.

35

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF (Replaces nut 125267)

4шт.

36

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

37

167955C2

SEAL

GROMMET - steering hoses

1шт.

38

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

Power steering hoses on 92 - 120 inch axle only.

1шт.

39

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

Power steering hoses on 92 - 120 inch axle only.

1шт.

40

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

Power steering hoses on 92 - 120 inch axle only.

1шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Power steering hoses on 92 - 120 inch axle only.

1шт.

42

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Power steering hoses on 92 - 120 inch axle only.

1шт.

Power steering hoses on 92 - 120 inch axle only.

1шт.
