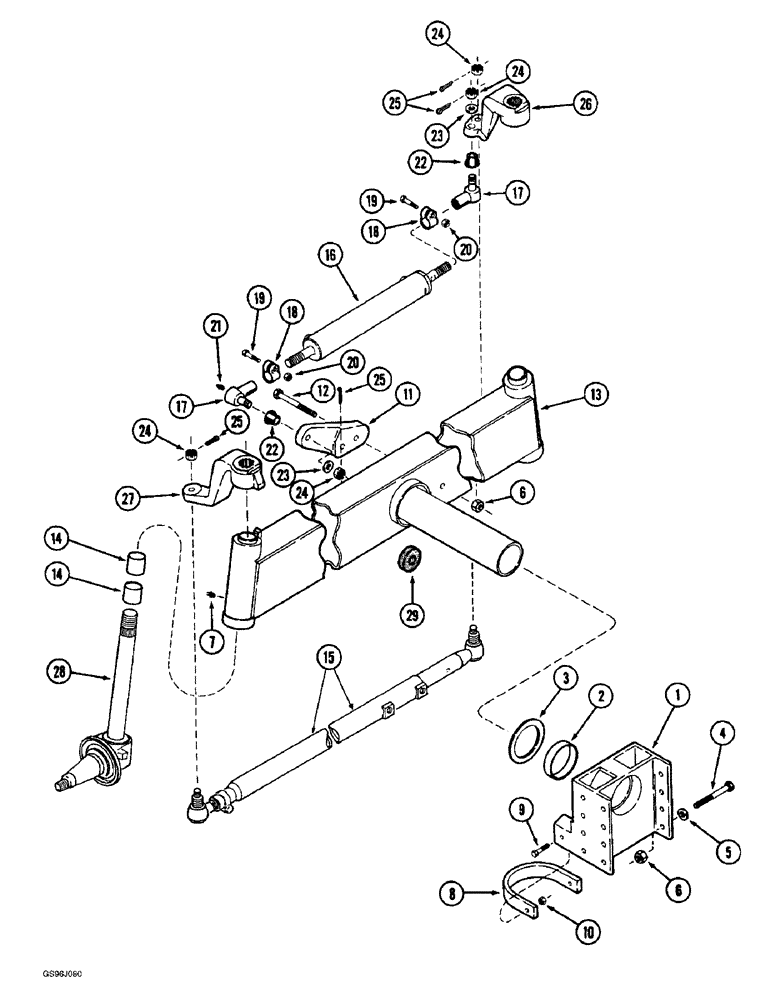

Запчасти Case IH 1660 (5-16) - STEERING AXLE, NONADJUSTABLE AXLE (04) - STEERING

1

177749C92

SUPPORT ASSY.

SUPPORT - axle pivot

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

1шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

1шт.

4

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

(Replaces bolt 24896R1) Hex, 3/4"-10 x 5", G8

8шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

10шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

8

196084C2

CHANNEL

STRAP - tow

1шт.

9

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

10

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

2шт.

11

193917C1

ANCHOR

- steering cylinder

1шт.

12

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

2шт.

13

182798C2

AXLE

ASSEMBLY - steering, grain combine

1шт.

13

1302521C2

AXLE

ASSEMBLY - steering, corn combine, Includes: Ref. 14

1шт.

14

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

4шт.

15

REF

INSTRUCTION

ROD ASSEMBLY - tie, parts list page 5-19

1шт.

16

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list Fig. 5-12

1шт.

17

186796C1

BALL JOINT

SOCKET ASSEMBLY - cylinder end, Includes: Ref. 18 - 21

2шт.

18

384371R1

CLAMP

- socket, Includes: Ref. 19 and 20

1шт.

19

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

20

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self locking, 7/16 inch NC (Replaces nut 9413966)

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

22

A41424

SEAL

- socket end (Replaces seal 382562R1)

2шт.

23

495-81033

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch (Replaces washer 21712R1)

2шт.

24

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex slotted, 5/8 inch NF (Replaces nut 125267)

4шт.

25

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

26

193911C3

ARM

- steering, left-hand

1шт.

27

193912C3

STEERING ARM

- steering, right-hand

1шт.

28

1315374C1

STEERING KNUCKLE

KNUCKLE - steering, see Fig. 5-36

1шт.

29

167955C2

SEAL

GROMMET - steering hose

1шт.
