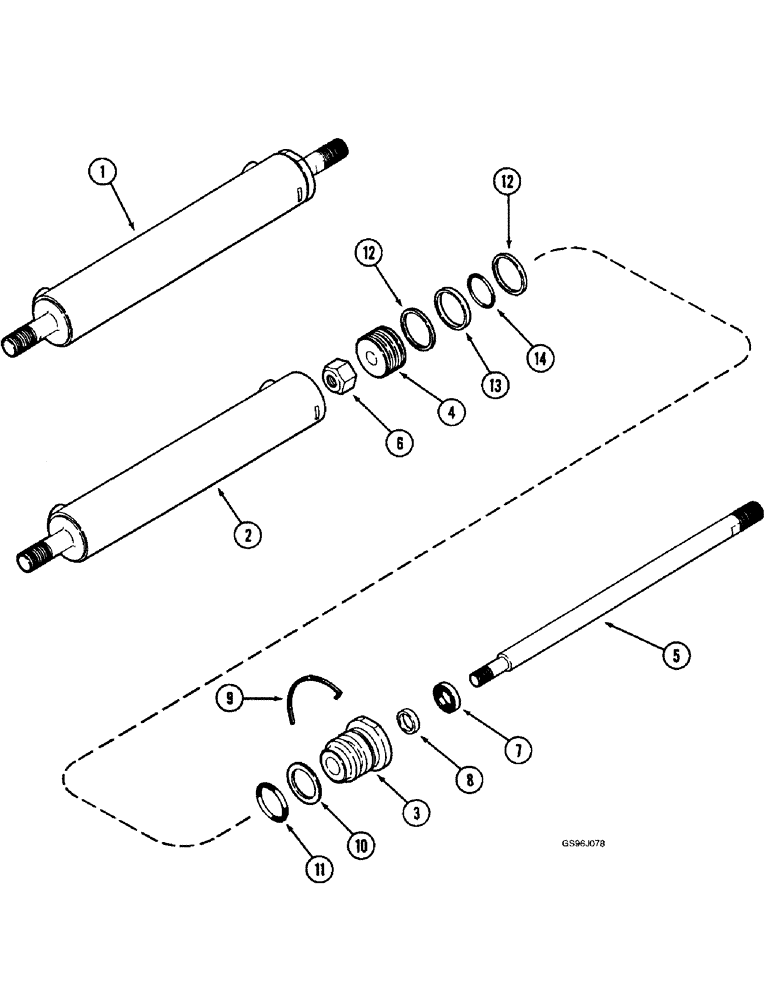

Запчасти Case IH 1660 (5-12) - STEERING CYLINDER ASSEMBLY, COMBINE WITH POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0036301 (04) - STEERING

1

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-1/4 (57) ID x 9 inch (229 mm) stroke, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 127913C93

1шт.

3

127919C1

GLAND

- cylinder, front

1шт.

4

127921C1

PISTON

- cylinder

1шт.

5

127920C2

PISTON ROD

ROD - piston (Replaces rod 127920C1)

1шт.

6

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

Part of Seal Kit, 73661C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod

1шт.

Part of Seal Kit, 73661C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.

Part of Seal Kit, 73661C92

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

Part of Seal Kit, 73661C92

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 x 2-1/4 inch

1шт.

Part of Seal Kit, 73661C92

1шт.

12

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

Part of Seal Kit, 73661C92

1шт.

13

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

Part of Seal Kit, 73661C92

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1-13/16 x 2 inch

1шт.

Part of Seal Kit, 73661C92

1шт.

73661C92

SEAL KIT

KIT - seal, Includes: Ref. 7 - 14

1шт.
