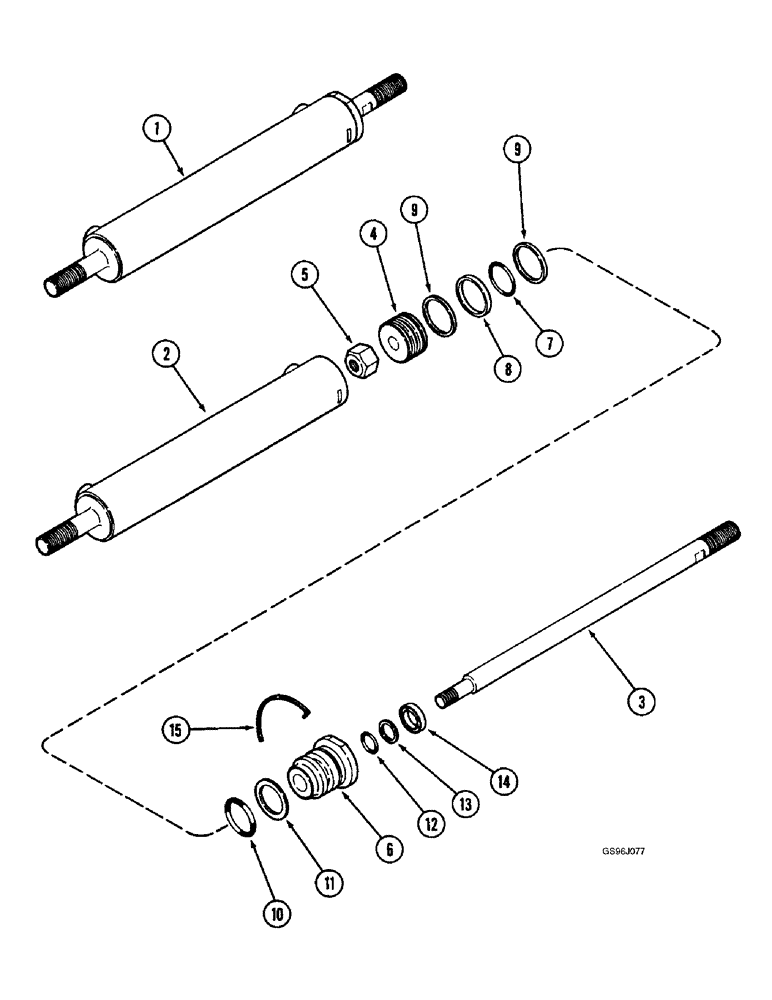

Запчасти Case IH 1660 (5-10) - STEERING CYLINDER ASSEMBLY, COMBINE WITHOUT POWER GUIDE AXLE (04) - STEERING

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 9 inch (229 mm) stroke, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 548247R91

1шт.

3

548251R1

ROD

- piston

1шт.

4

548252R1

PISTON

- cylinder

1шт.

5

232-4609

LOCK NUT,9/16"-18, GC

NUT, LOCK, (Replaces nut 27293R1) 9/16"-18, GC

1шт.

6

548354R1

HEAD

GLAND - cylinder, front

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-9/16 x 1-3/4 inch

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

Part of Seal Kit, P/N 548357R91

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, head

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 7/8 x 1-1/8 inch

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, piston

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

Part of Seal Kit, P/N 548357R91

1шт.

15

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.

548357R91

SEAL KIT

- seal, Includes: Ref. 7 - 15

1шт.
