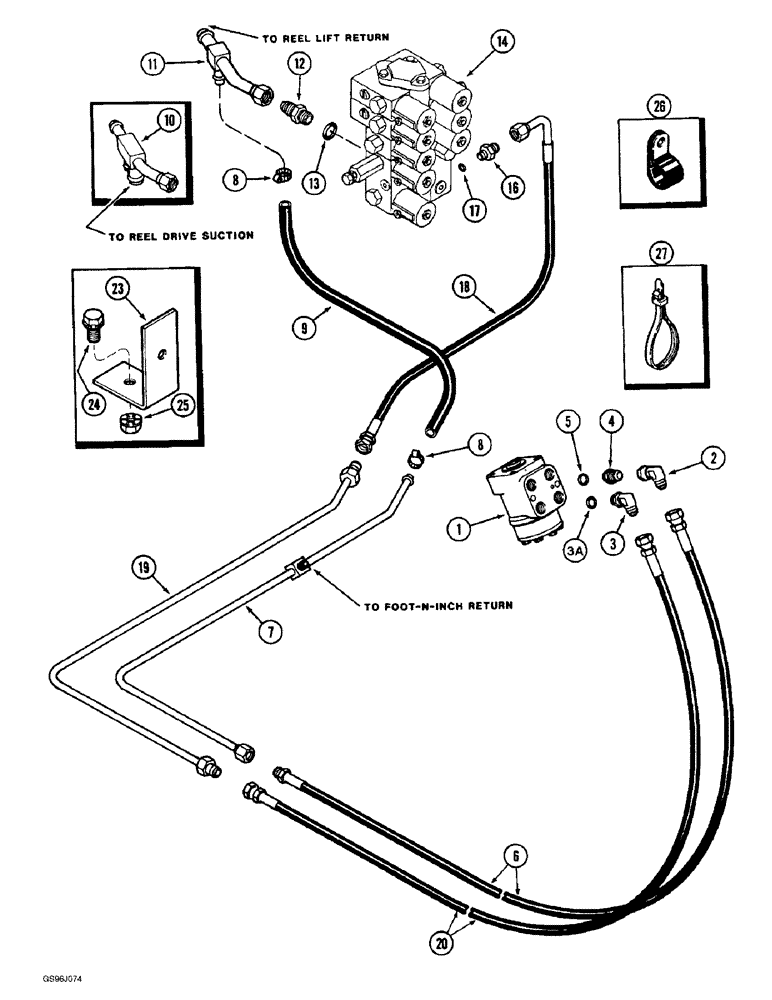

Запчасти Case IH 1660 (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN SYSTEM (04) - STEERING

1

1272798C93

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydrostatic steering, parts list Fig. 5-08

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss, Includes: Ref. 3A

1шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1317939C1

HOSE

- steering hand pump return

1шт.

7

1310764C1

HYD TUBE

TUBE - steering return

1шт.

8

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - steering return, 26 inch (660 mm) long, cut from bulk hose S118466X below

1шт.

10

1310757C1

TUBE

- manifold and steering return

1шт.

11

1310756C1

HYD TUBE,0.75, 0.5" OD, 198, 33 mm Length

TUBE - manifold and steering return, combine with 825 header

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-36

1шт.

16

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 17

1шт.

18

1310755C2

HOSE

- steering pressure

1шт.

19

1310765C1

HYD TUBE

TUBE - steering pressure

1шт.

20

1327580C1

HOSE

- steering hand pump pressure, 40 inch (1016 mm) long

1шт.

23

183899C1

ANGLE

- hand pump hoses

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

26

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

27

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

3шт.

S118466X

LARGE HOSE

HOSE - bulk, 1/2 (13) ID x 300 inch (7620 mm) long, sold by the foot

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
