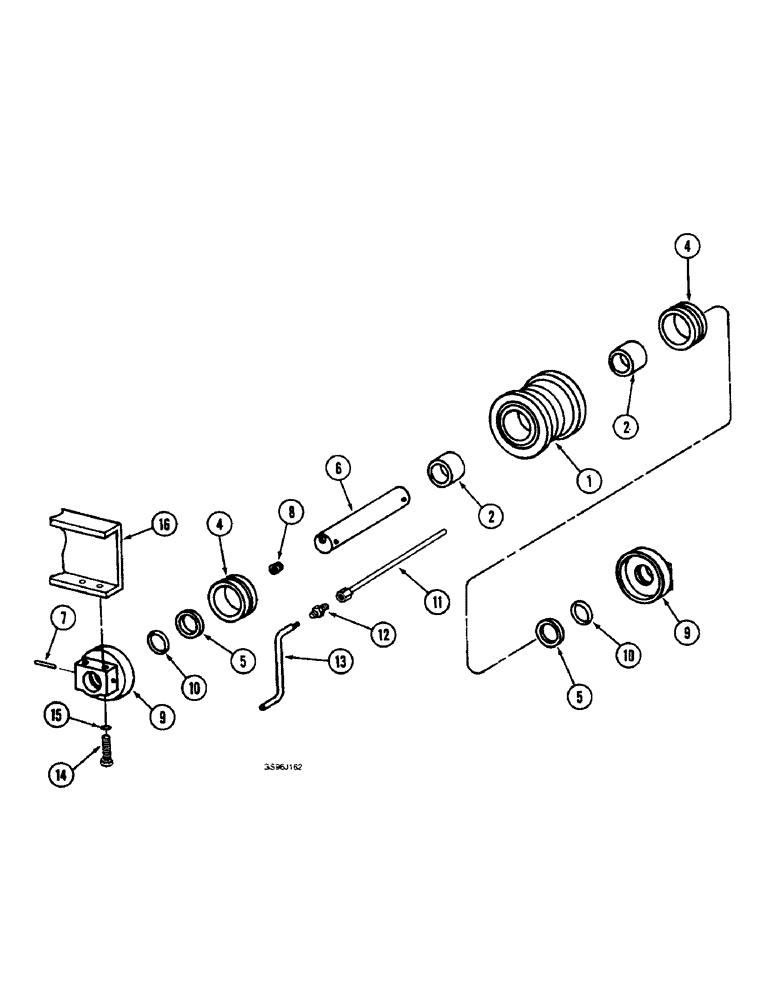

Запчасти Case IH 1660 (6-90) - TRACK ROLLER (03) - POWER TRAIN

621462C94

ROLLER

ASSEMBLY - track, Includes: Ref. 1 - 10

10шт.

1

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track, order roller assembly 621462C94, Includes: Ref. 2

10шт.

2

621458C3

BUSHING

- idler roller

20шт.

4

740915C91

OIL SEAL

KIT - track seal

20шт.

5

621419C1

THRUST WASHER

- thrust

20шт.

6

621459C1

SHAFT

- roller

10шт.

7

38-32424

PIN,3/8" x 1 1/2", Coiled

20шт.

8

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT

10шт.

9

621463C1

HOUSING

BRACKET - shaft support

20шт.

10

655266C1

O-RING,1.734" ID x 0.144" Width

- 1-3/4 ID x 1/8 inch wide

20шт.

11

1330259C1

TUBE,6.78" Length

- lubricator, track

1шт.

12

1330260C1

FITTING

- hex button head

1шт.

13

304910R2

SPECIAL WRENCH

WRENCH - socket plug

1шт.

14

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

40шт.

15

392-21050

LOCK WASHER,1/2"

1/2"

40шт.

16

REF

INSTRUCTION

FRAME ASSEMBLY - track, parts list Fig. 6-82

2шт.
