Запчасти Case IH 1660 (6-88) - TRACK IDLER (03) - POWER TRAIN

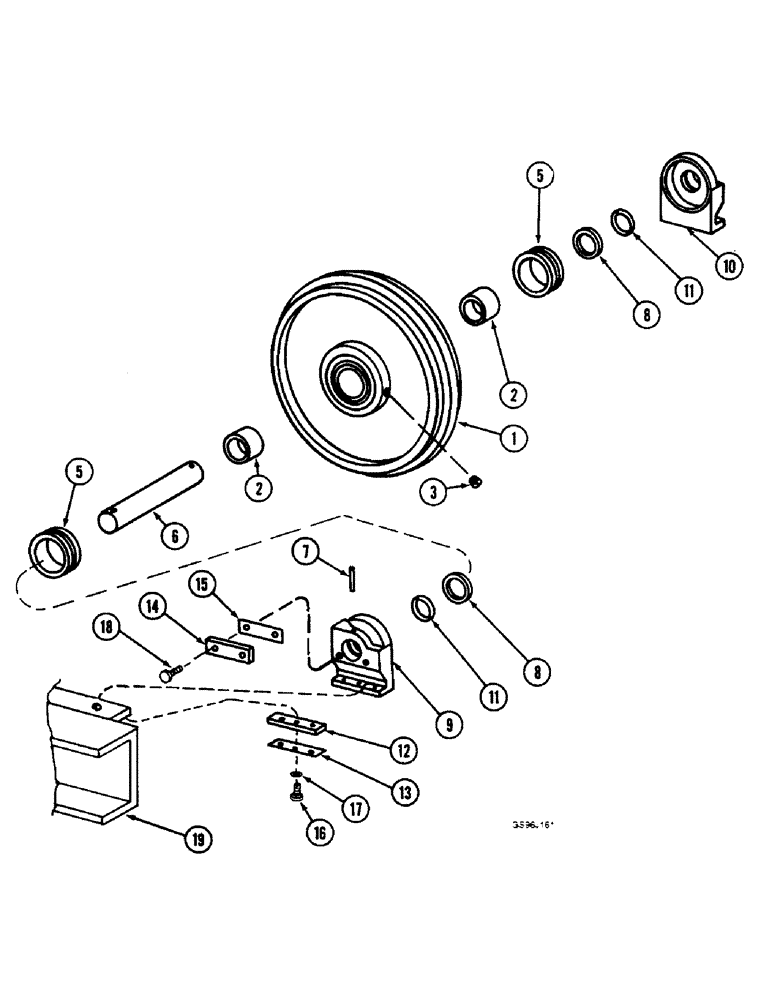

Схема запчастей Case IH 1660 - (6-88) - TRACK IDLER (03) - POWER TRAIN
1
11
15
12
9
10
8
2
6
5
3
11
14
19
8
16
17
18
7
13
5
2

Артикул

Название

Примечание

Количество

621414C93

FRONT IDLER

ROLLER ASSEMBLY - idler, front and rear, Includes: Ref. 1 - 11

4шт.

1

621415C92

ROLLER

ASSEMBLY - idler, Includes: Ref. 2

4шт.

2

621417C4

BEARING

BUSHING - idler roller

8шт.

3

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT

4шт.

5

740915C91

OIL SEAL

KIT - track seal

8шт.

6

621418C1

SHAFT

- idler

4шт.

7

38-32424

PIN,3/8" x 1 1/2", Coiled

8шт.

8

621419C1

THRUST WASHER

- thrust

8шт.

9

621420C1

HOUSING

SUPPORT - roller, left-hand

4шт.

10

621421C1

HOUSING

SUPPORT - roller, right-hand

4шт.

11

655266C1

O-RING,1.734" ID x 0.144" Width

- 1-3/4 ID x 1/8 inch wide

8шт.

12

622044C1

PLATE

BAR - rear idler wear

4шт.

13

621423C1

SHIM

- rear idler support bottom

8шт.

14

621424C1

PLATE

BAR - rear idler side thrust

4шт.

15

621427C1

SHIM

- rear idler support side

12шт.

16

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

24шт.

17

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

24шт.

18

326-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

16шт.

19

REF

INSTRUCTION

FRAME - track, parts list Fig. 6-82

2шт.

Выбрано товаров: 19
