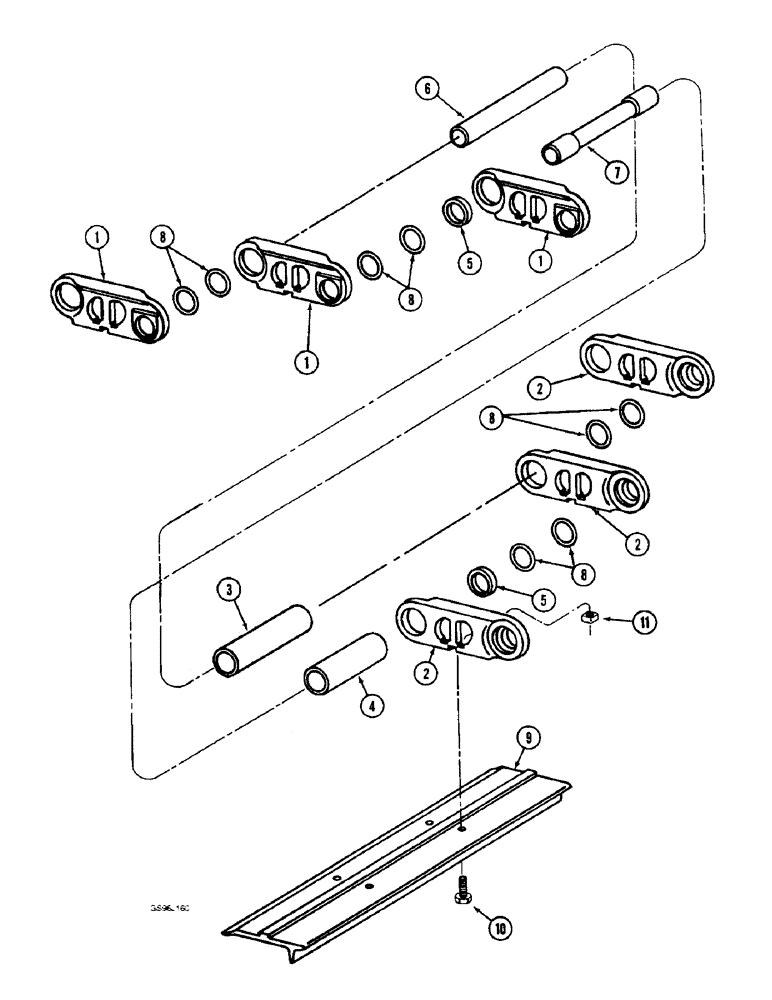

Запчасти Case IH 1660 (6-86) - TRACK CHAIN (03) - POWER TRAIN

196029C91

CHAIN (AG)

CHAIN ASSEMBLY - track, without shoes, 38 links, no longer available as a unit, order components separately, Includes: Ref. 1 - 8

2шт.

1

622150C1

CHAIN (AG)

LINK - track, left-hand

76шт.

2

622151C1

LINK

- track, right-hand

76шт.

3

621296C1

BUSHING

- link

74шт.

4

621297C1

BUSHING

- link, master

2шт.

5

616180C1

SPACER

- master link

4шт.

6

263943R1

PIN

- chain link

2шт.

7

616181C1

PIN

- master link

2шт.

8

616178C1

SPRING WASHER

- seal spring

296шт.

9

4029537R1

SHOE

- track, 20 inch, no longer used, order shoe 196085C1 below

76шт.

9

196085C1

SHOE

- track, 20 inch (Replaces shoe 4029537R1)

76шт.

10

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

304шт.

11

616192C1

NUT

- track shoe bolt

304шт.
