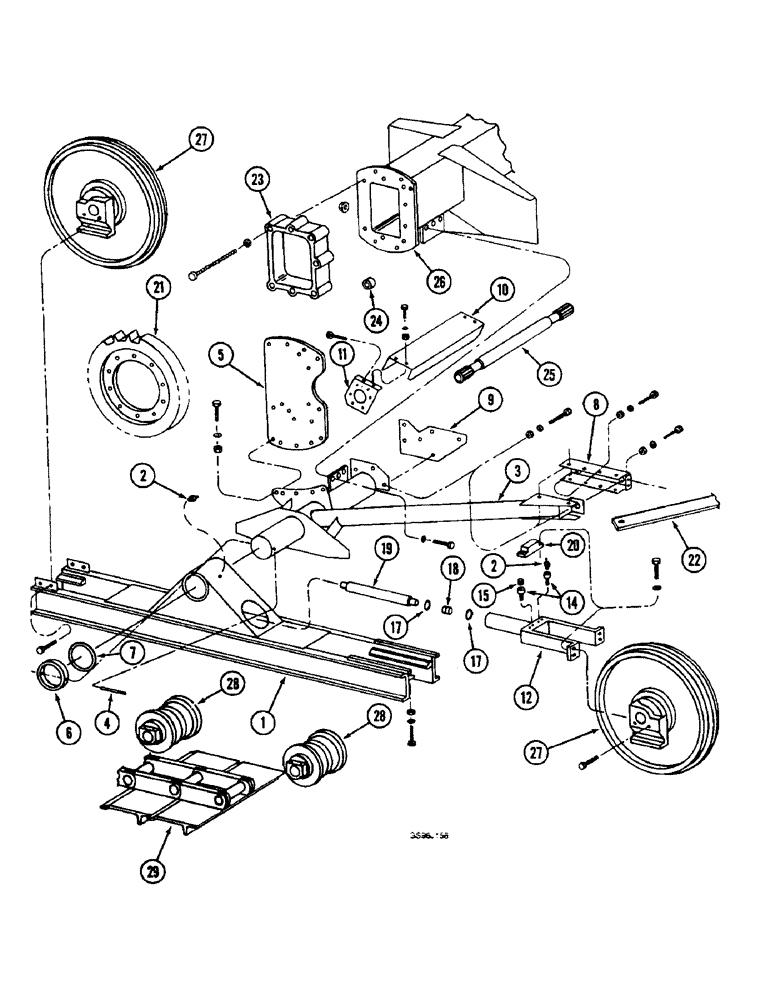

Запчасти Case IH 1660 (6-82) - TRACK (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
196031C1
FRAME
- track, five roller
2шт.
2
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
4шт.
3
188487C1
FRAME
PIVOT - track frame, left-hand
1шт.
3
188488C2
FRAME
PIVOT - track frame, right-hand (Replaces pivot 188488C1)
1шт.
4
23854R1
LOCK PIN,1/2" x 5", Slotted
Pin, 1/2" x 5", Slotted
2шт.
5
186832C1
PLATE
- outer pivot support
2шт.
6
167791C1
SPACER
COLLAR - pivot retainer
2шт.
7
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
- flat, special, track pivot shaft
4шт.
8
188498C1
BRACKET
SUPPORT - pivot rear anchor, left-hand
1шт.
8
188499C1
BRACKET
SUPPORT - pivot rear anchor, right-hand
1шт.
9
186006C1
SUPPORT
- inner pivot, high clearance
2шт.
9
1302371C1
PLATE
SUPPORT - inner pivot, low clearance, left-hand
1шт.
9
1302372C1
PLATE
SUPPORT - inner pivot, low clearance, right-hand
1шт.
10
1338130C1
SHIELD
- axle shaft (Replaces shield 186015C1)
2шт.
11
186016C2
SUPPORT
BRACKET - support, left-hand
1шт.
11
186017C2
SUPPORT
BRACKET - support, right-hand
1шт.
12
621428C1
CLEVIS
FORK - rear idler roller adjustment
2шт.
14
D35287
CHECK VALVE,5/8" - 18
- check (Replaces valve 319628R91)
4шт.
15
50410DA
PLUG
- hex socket, 1/8 inch PT
2шт.
17
622826C91
SEAL
KIT - adjuster seal and scrapper
2шт.
18
622046C1
PISTON
- hydraulic track adjuster
2шт.
19
196030C1
ROD
- track adjuster control
2шт.
20
621430C1
GUARD
SHIELD - track adjuster check
2шт.
21
162343C1
DRIVE SPROCKET
SPROCKET - track drive, 23 tooth
2шт.
22
REF
INSTRUCTION
BAR - separator frame, Fig. 9H-4
2шт.
23
186036C1
SPACER
- drive axle track
2шт.
24
619769R1
SPACER,1" X-Strng Pipe x 3/4"
- drive axle track
2шт.
25
REF
INSTRUCTION
SHAFT - axle, Fig. 6-72
2шт.
26
REF
INSTRUCTION
AXLE - main, see Fig. 6-72
1шт.
27
REF
INSTRUCTION
ROLLER - idler, see Fig. 6-88
4шт.
28
REF
INSTRUCTION
ROLLER - track, see Fig. 6-90
10шт.
29
REF
INSTRUCTION
TRACK - chain, see Fig. 6-86
2шт.
Выбрано товаров: 32
