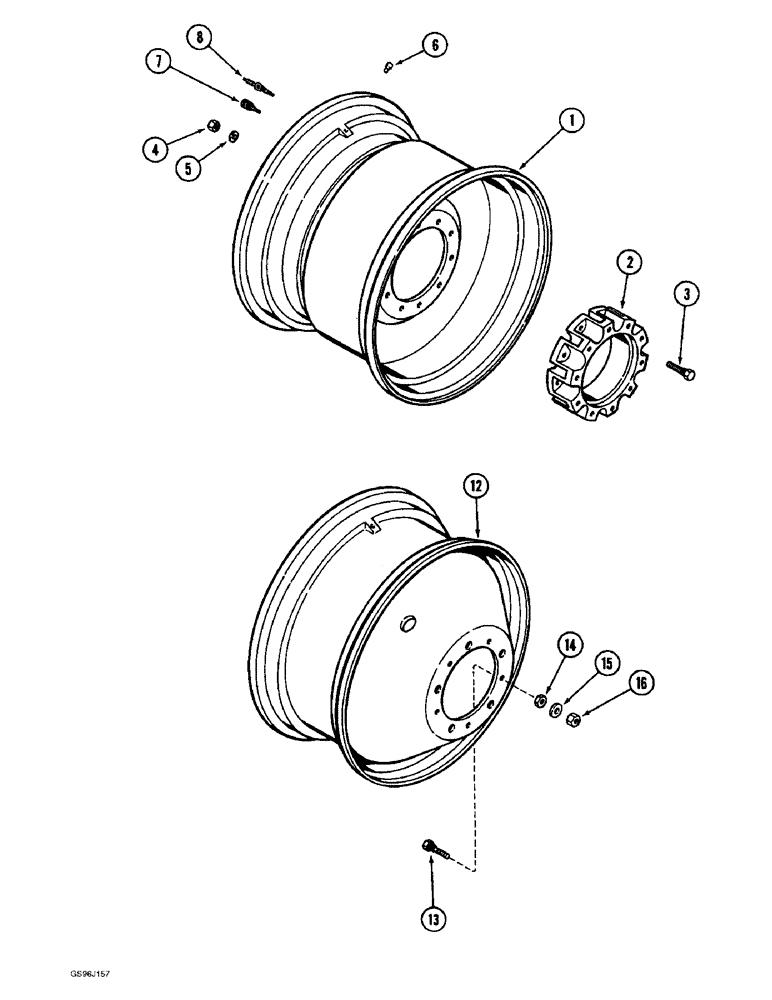

Запчасти Case IH 1660 (6-80) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

1

193599C1

WHEEL ASSY.

WHEEL - drive, for 23.1 x 26 tire

2шт.

1

196197C1

WHEEL ASSY.

WHEEL - drive, for 28L x 26 tire

2шт.

1

194268C2

RIM

WHEEL - drive, for 67 x 34-30 tire

2шт.

1

184482C4

WHEEL

- drive, for 24.5 x 32 tire (Replaces wheels 193666C1 and 184482C3)

2шт.

1

184480C1

RIM

WHEEL - drive, for 30.5L x 32 tire (Replaces wheels 184300C1 and 193667C1)

2шт.

1

196196C2

WHEEL

- drive, for 24.5 x 34 tire

2шт.

2

178912C92

RETAINER

SPACER - wheel, 3-1/2 inch

2шт.

2

188124C91

RETAINER

SPACER - wheel, 2-1/2 inch

2шт.

3

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel, used in spacer only

20шт.

4

329-1112

NUT,3/4"-16, G8

- hex, 3/4 inch NF, grade 8

20шт.

5

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Not used with spacer 13/16" x 1 1/2" x .219", HDN

20шт.

5

184403C1

SPACER

- flat, 13/16 x 2 x 3/8 inch

20шт.

6

417194C1

PLUG

- valve hole, for tubeless tire

2шт.

6

383697R1

PLUG

- valve hole, for tube type tire

2шт.

7

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter

2шт.

8

407184R1

VALVE

- inflation

2шт.

12

184352C1

RIM

WHEEL - drive, dual, 18.4 x 38 inch tire

4шт.

13

184430C1

BOLT

- wheel, dual wheel

20шт.

14

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF, dual wheel

10шт.

15

184403C1

SPACER

- flat, 13/16 x 2 x 3/8 inch, dual wheel

20шт.

16

329-1112

NUT,3/4"-16, G8

- hex, 3/4 inch NF, grade 8, dual wheel

20шт.
