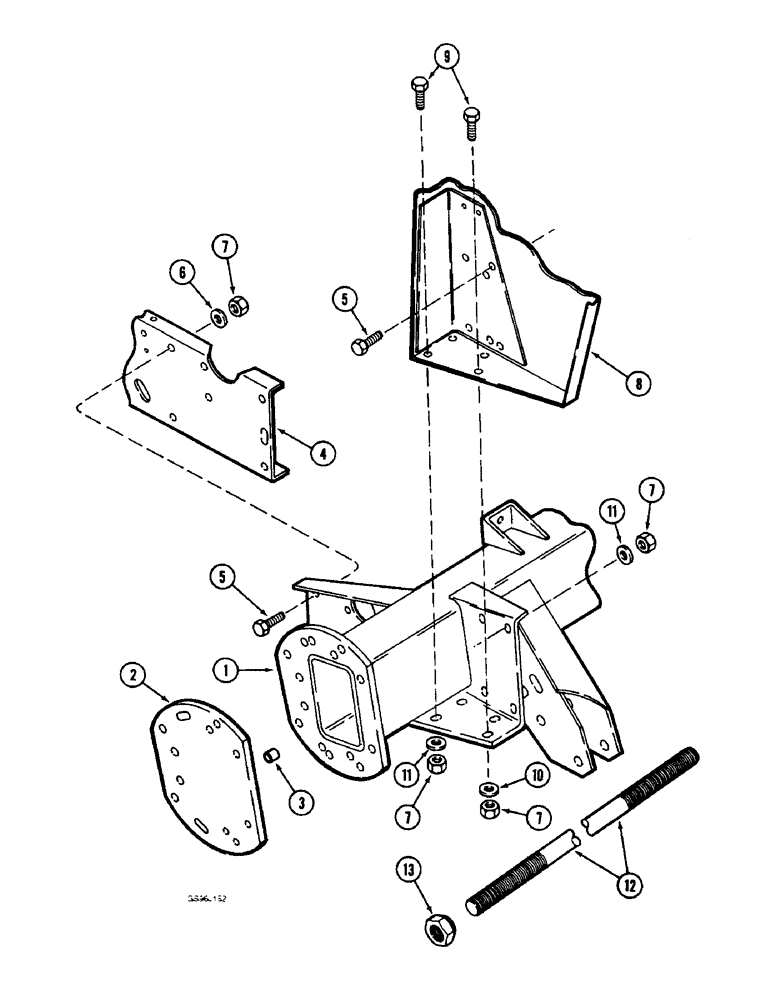

Запчасти Case IH 1660 (6-70) - DRIVE AXLE (03) - POWER TRAIN

1

1302712C1

AXLE

- drive, without gussets

1шт.

1

184451C2

AXLE

- drive, extra wide and dual wheel drive (Replaces axle 184451C1)

1шт.

2

177336C1

COVER

- end plate

2шт.

3

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- tapered

4шт.

4

REF

INSTRUCTION

SUPPORT - separator side, right-hand, Fig. 9H-4

1шт.

5

326-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

22шт.

6

495-81259

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 1/4 inch

14шт.

7

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

30шт.

8

REF

INSTRUCTION

POST - separator front, right-hand, see page 9H-5

1шт.

9

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

8шт.

10

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

4шт.

11

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

12шт.

12

184358C1

ROD

- reinforcement, extension

1шт.

13

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.
