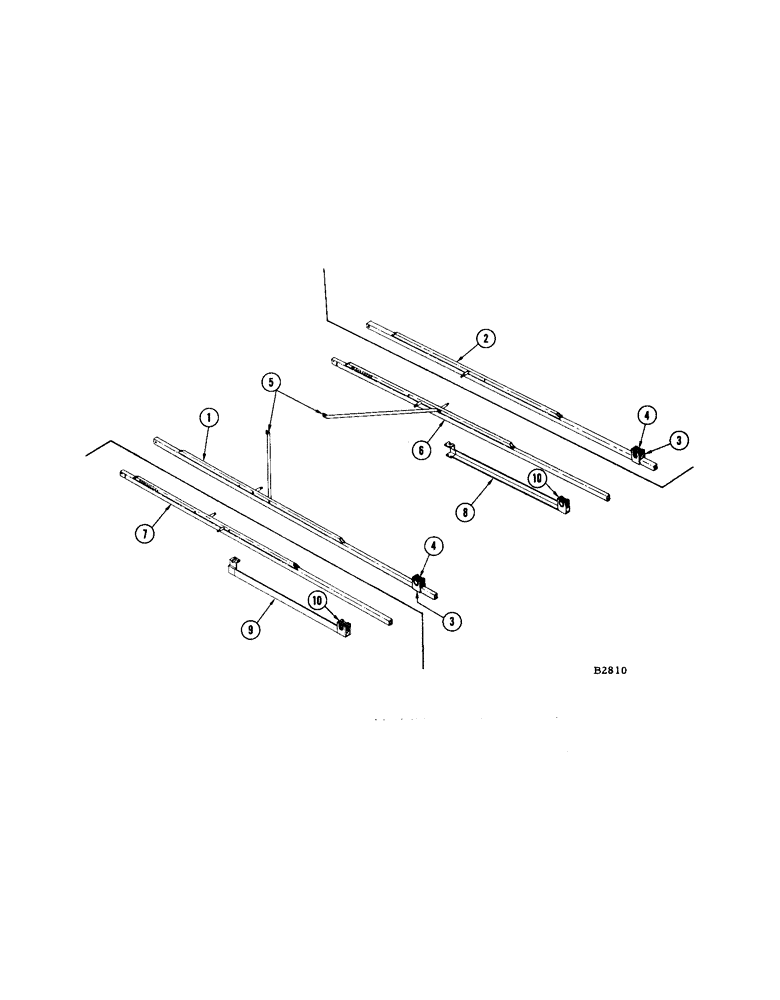

Запчасти Case IH 1660 (014[A]) - REEL SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F88606

ARM - reel, R.H. (14' - 16' - 19' hdr.) Replaces F87390

1шт.

2

F88609

ARM - reel, L.H. (20' hdr.)

1шт.

136-59

COTTER - hairpin, external

1шт.

3

F87400

STRAP - reel bearing, for F88606 or F88609

1шт.

181-810

SCREW - 3/8" x 1-1/2" sq. hd. N.C. cup pt. set

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

4

F4100

BEARING

- reel shaft (wood) for F87400 strap

1шт.

111-126

BOLT,Short NK, 1/4"-20 x 2 1/4", G2

- 1/4" x 2-1/4" rhd. sq. nk.

4шт.

195-518

WASHER,1/4", SAE

2шт.

86625061

NUT,1/4"-20, GB

NUT - 1/4" - 20 N.C. Esna #21-NE-040

4шт.

5

F87398

BRACE - reel arm

2шт.

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

2шт.

195-529

WASHER,7/16", SAE

- 7/16" flat

6шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

129-104

NUT,7/16"-14, G5

2шт.

6

F88607

ARM - reel, L.H. (14' - 16' - 19' hdr.) Replaces F87393

1шт.

F87393

ARM - reel, L.H. (14' - 16' - 19') Replaced by F88607 when exh.

1шт.

7

F88610

ARM - reel, R. H. (20 ft. hdr.)

1шт.

136-59

COTTER - hairpin, external

1шт.

8

F87395

TAKE-UP - belt, reel drive (14" - 16' hdr.)

1шт.

9

F88611

TAKE-UP - belt, reel drive (20 ft. hdr.)

1шт.

111-242

BOLT,Short NK, 5/16"-18 x 4 1/2", G2

- 5/16" x 4-1/2" hrd. sq. nk.

2шт.

231-1445

NUT,5/16"-18, GB

NUT - 5/16" - 18 N.C. Esna #21-NE-058

2шт.

10

F4100

BEARING

- reel shaft (wood) for F87395 or F88611

1шт.

111-126

BOLT,Short NK, 1/4"-20 x 2 1/4", G2

- 1/4" x 2-1/4" rhd. sq. nk.

4шт.

195-518

WASHER,1/4", SAE

4шт.

86625061

NUT,1/4"-20, GB

NUT - 1/4" - 20 Esna #21-NE-048

4шт.
