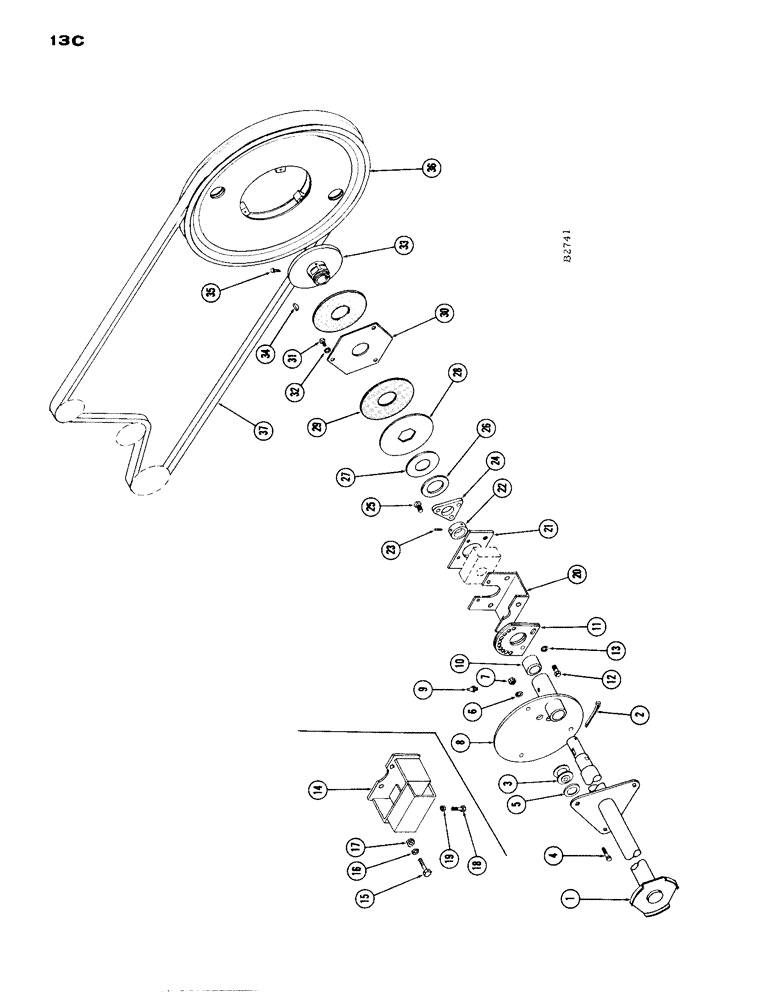

Запчасти Case IH 1660 (013[B]) - HART-CARTER, PICKUP REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F94174

SHAFT - end, driving

1шт.

2

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

3

F53435

BEARING

BALL BEARING - roller

6шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

5

F53438

WASHER - 2-1/4" O.D. x 1-5/8" I.D. spec. flat

6шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

8

F94161

ECCENTRIC - roller frame

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

10

F53443

BEARING - bronze

2шт.

11

F94171

PLATE - adjusting, eccentric

2шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

F94175

BRACKET - adjusting, R.H. eccentric

1шт.

15

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-7

LOCK WASHER,7/16"

2шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

2шт.

18

85-820

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - 1/2" x 1-1/4" N.C. sq. hd. cup pt. set

1шт.

19

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - 1/2" NC hex

1шт.

20

F53459

CHANNEL - eccentric adj. bracket, L.H.

1шт.

21

F53444

PLATE - clamp

1шт.

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

BOLT - 1/4" x 2-3/4" N.C. hex.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

22

F53439

COLLAR

2шт.

23

178-816

SCREW - 3/8" - 24 x 1/4" cup pt. soc. hd. set

4шт.

24

F2187

NUT - adjustment

1шт.

25

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - 1/2" x 1" N.C. sq. hd. cup pt. set

3шт.

26

F53449

WASHER - 3-1/2" O.D. x 2-1/8" I.D. x 1/4" thick

1шт.

27

F53446

WASHER - Belleville spring

5шт.

28

F53447

WASHER - special flat

1шт.

29

F53448

WASHER - friction

2шт.

30

F53445

WASHER - friction plate

1шт.

31

61-510

HEX SOC SCREW,5/16"-18 x 5/8"

SCREW - 5/16" x 5/8" N.C. hex. hd. cap

3шт.

32

92-5

LOCK WASHER,5/16"

3шт.

33

F2188

HUB - slip clutch

1шт.

34

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - 5/16" x 1" Woodruff

1шт.

35

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - 5/16" x 3/8" N.C. soc. hd. set

2шт.

36

F88347

SHEAVE - slip clutch

1шт.

F87403

SHEAVE - std. (see P.17)

1шт.

37

F13577

SCREW

"V" BELT - reel drive

1шт.
