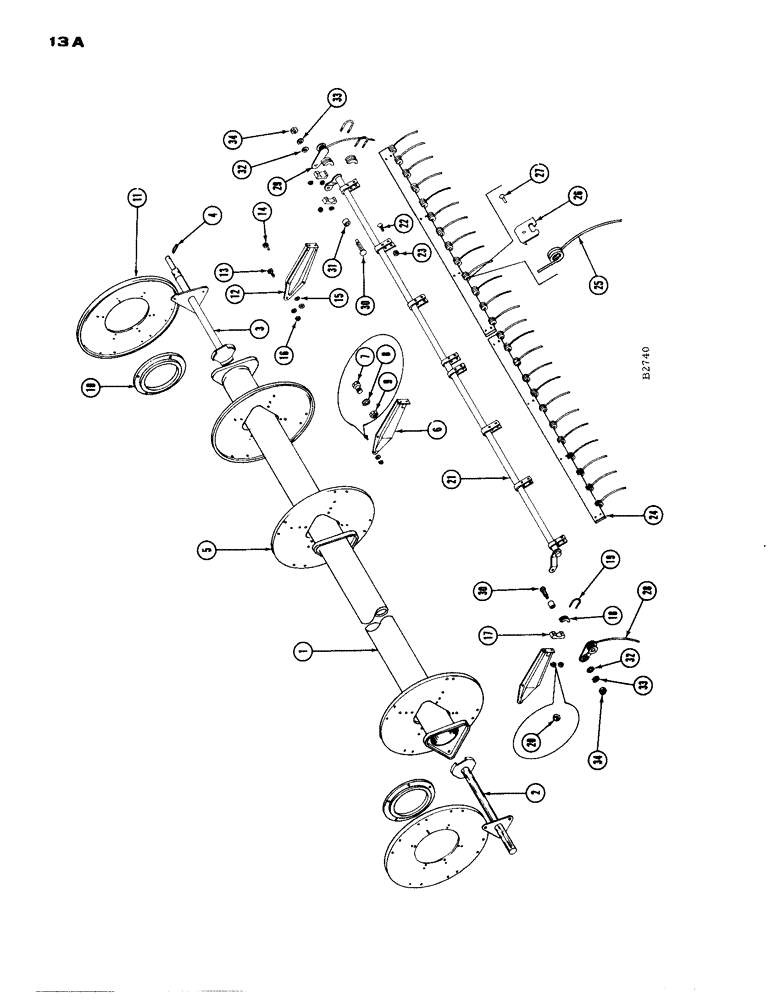

Запчасти Case IH 1660 (013[A]) - HART-CARTER, PICKUP REEL (58) - ATTACHMENTS/HEADERS

1

F94148

SHAFT - center, 14 ft.

1шт.

F94153

SHAFT - center, 16 ft.

1шт.

2

F94168

SHAFT - end, driven

1шт.

3

F94174

SHAFT - end, driving

1шт.

4

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

B18302

WASHER

- special (Not Shown)

2шт.

5

F53431

PLATE - spider, 6 bat

4шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

12-616

BOLT

- 3/8" x 1" rhd. sh. sq. nk.

6шт.

195-25

WASHER,3/8"

- std. flat 3/8"

12шт.

92-6

LOCK WASHER,3/8"

12шт.

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" std.

12шт.

6

F94162

ARM

- reel (Replaces F94159)

24шт.

7

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

72шт.

8

92-5

LOCK WASHER,5/16"

72шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

72шт.

10

F2186

OIL SEAL

CONTROL RING - eccentric

2шт.

11

F53436

SPIDER PLATE - eccentric

2шт.

12

F94162

ARM

REEL ARM - eccentric

12шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

14

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

24шт.

15

92-5

LOCK WASHER,5/16"

36шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

36шт.

17

F53434

BASE

- bearing

36шт.

18

F53433

CAP

- bearing

36шт.

19

F53432

BOLT

"U" BOLT

36шт.

20

131-717

LOCK NUT

NUT - 1/4" N.C. hug lock

72шт.

21

F94152

SHAFT - bat, 14 ft.

6шт.

F94157

SHAFT - bat, 16 ft.

1шт.

22

11-422

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 3/8", G2

BOLT - 1/4" - 20 x 1-3/8" rhd. sq. nk.

1шт.

23

131-2

NUT,1/4"-20, GB

N.C. 1/4"-20, GB

1шт.

24

F94150

BAT

ASSEMBLY - (wood) 48" - outside, 14 ft.

12шт.

F94151

BAT

ASSEMBLY - (wood) 54" - inside, 14 ft.

6шт.

F94155

BAT ASSEMBLY - (wood) 59" - outside, 16 ft.

12шт.

F94156

BAT ASSEMBLY - (wood) 56" - inside, 16 ft.

6шт.

25

F53349

TINE

- bat

1шт.

26

F53348

CLIP - tine

1шт.

27

B17161

RIVET - 3/16" x 1" oval hd. tube. (1 lb. pkg.)

1шт.

28

F94166

FINGER

- auxiliary pickup, R.H.

6шт.

29

F94164

FINGER

- auxiliary pickup, L.H.

6шт.

30

F53437

BOLT - hex. shank, 1/2" x 2-11/16" rhd.

12шт.

31

F53440

SPACER - 13/16" O.D. x 1-1/4" I.D., 11 ga.

12шт.

32

195-29

WASHER,7/16"

- std. 7/16"

12шт.

33

92-8

LOCK WASHER,1/2"

12шт.

34

131-168

LOCK NUT,1/2"-20, GA

LOCKNUT - 1/2" - 20 N.F. Gripco

12шт.
