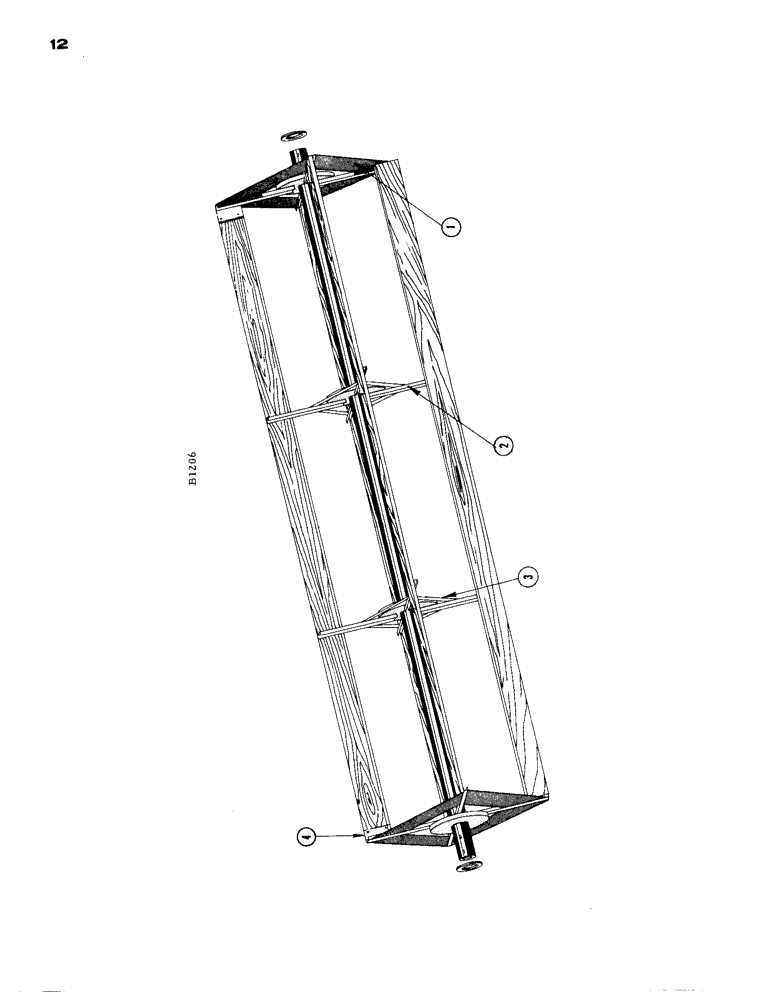

Запчасти Case IH 1660 (012) - REEL CONVERSION KIT, 4 BAT TO 6 BAT, HARRISON PICKUP REEL, FINGER ADJUSTING ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F8463

CLOSURE - reel end

12шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.C. hex.

16шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

16шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

2

F9236

ARM

- reel (14 ft. and 16 ft. headers)

8шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

16шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

16шт.

129-121

NUT,1/4"-28, G5

16шт.

F14047

ARM - reel (19 ft. - 20 ft. header)

10шт.

111-109

BOLT - 1/4" x 1-1/4" rhd. sq. nk. Short NK, 1/4"-20 x 1 1/4", G2

30шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

20шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

50шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

50шт.

3

F9239

STRAP - tie, reel arms (14 ft. and 16 ft. headers)

12шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

129-121

NUT,1/4"-28, G5

4шт.

F9239

STRAP - tie, reel arms (19 ft. - 20 ft. header)

18шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

4

F14906

REINFORCEMENT - reel bat (14 ft. - 16 ft.)

4шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, , and nut (129-101) Short NK, 1/4"-20 x 1", G2

8шт.

F14912

REINFORCEMENT - reel bat (19 ft. - 20 ft. header)

4шт.

111-109

BOLT - 1/4" x 1-1/4" rhd. sq. nk., and nut (129-101) Short NK, 1/4"-20 x 1 1/4", G2

12шт.

F86623M

REEL - 14 ft. pickup (machinery item)

1шт.

F86624M

REEL - 16 ft. pickup (machinery item)

1шт.

F87771M

FINGER ADJUSTING ATTACHMENT - (Machinery Item)

1шт.

F14124

BRACKET - finger adjustment (Not Shown)

2шт.

F14125

PLATE - finger adjusting (Not Shown)

2шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., FINGER ADJUSTING ATTACHMENT

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Finger adjusting attachment 3/8"

6шт.

129-123

NUT,3/8"-24, G5

Finger adjusting attachment 3/8"-24, G5

6шт.
