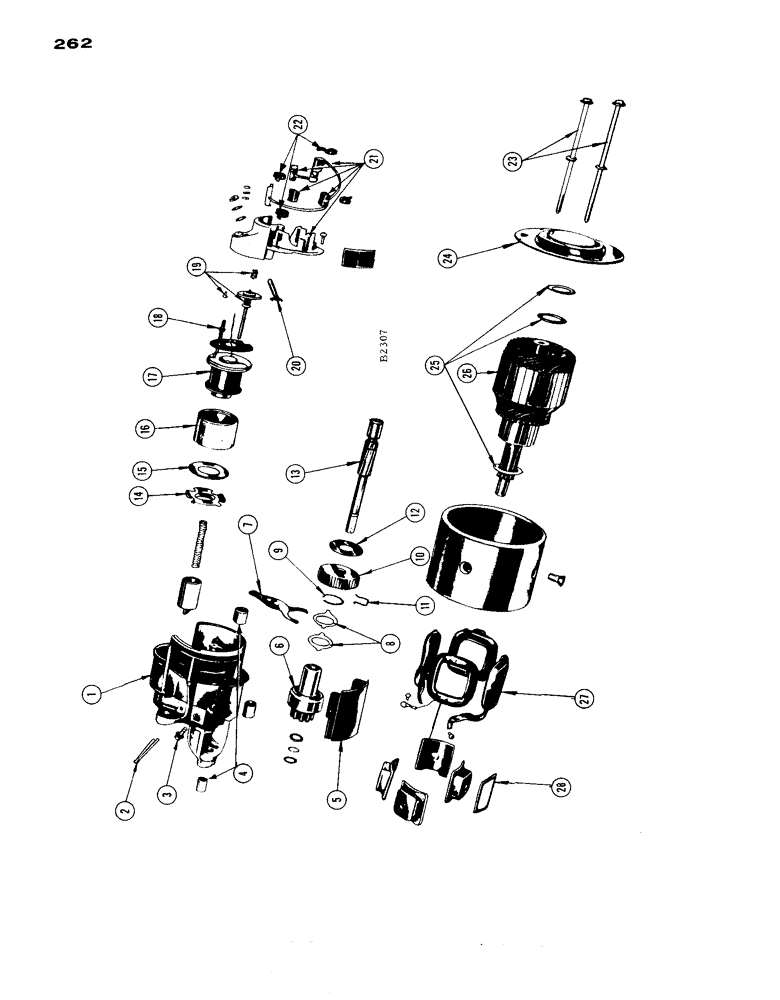

Запчасти Case IH 1660 (262) - STARTING MOTOR (55) - ELECTRICAL SYSTEMS

F86743

MOTOR - starter (Chrysler #2095150)

1шт.

1

A40390

HOUSING - gear

1шт.

2

132-129

PIN

- cotter, 7/32 x 2-1/2"

1шт.

3

A40403

SCREW - with lockwasher, upper mounting assembly

1шт.

4

A40399

BEARING - pinion housing

2шт.

A40397

BEARING - gear housing

1шт.

5

A40391

COVER - gear housing

1шт.

6

A40394

CLUTCH - starter

1шт.

7

A40396

FORK - shifting

1шт.

8

A40416

ACTUATOR

PACKAGE - clutch shifting

1шт.

NSS

NOT SOLD SEPARAT

ACTUATOR - clutch shifting

2шт.

9

A40395

RING - retaining

1шт.

10

A40417

GEAR PACKAGE - pinion shaft

1шт.

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

11

A40392

SNAP RING - gear retaining

1шт.

12

A40418

KIT - pinion shaft thrust washer

1шт.

NSS

NOT SOLD SEPARAT

RING - pinion shaft retaining

2шт.

NS

NOT SERVICED

WASHER - pinion shaft thrust

1шт.

13

A40393

LEVER

SHAFT - pinion

1шт.

A40414

KIT - solenoid repair

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER - solenoid coil

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - solenoid coil

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - solenoid coil

2шт.

17

NSS

NOT SOLD SEPARAT

SOLENOID ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

WASHER - terminal relay stud

1шт.

NSS

NOT SOLD SEPARAT

WASHER - terminal relay stud insulating

1шт.

18

A40421

STUD

KIT - solenoid terminal relay stud (Contains nut, stud and 2 washers)

1шт.

19

A40413

SWITCH

KIT - solenoid, spring and contact

1шт.

NSS

NOT SOLD SEPARAT

CONTACT - solenoid switch

1шт.

NSS

NOT SOLD SEPARAT

SPRING - solenoid switch, outer

1шт.

NSS

NOT SOLD SEPARAT

SPRING - solenoid return

1шт.

20

A40412

KIT - solenoid battery stud and washer (Contains nut, stud and 2 washers)

1шт.

21

A40411

BRUSH and PLATE PACKAGE

1шт.

NSS

NOT SOLD SEPARAT

PLATE - brush holder

1шт.

NSS

NOT SOLD SEPARAT

BRUSH - with terminal (negative)

1шт.

22

A40378

SPRING PACKAGE - brush

1шт.

NSS

NOT SOLD SEPARAT

SPRING - brush

4шт.

23

A40389

RING

SCREW - frame

2шт.

24

A40387

HEAD

1шт.

25

A40415

WASHER KIT - armature thrust (Contains 6 washers)

1шт.

26

A40388

ARMATURE

1шт.

27

A40410

COIL PACKAGE - starter

1шт.

NSS

NOT SOLD SEPARAT

COIL - field series assembly

1шт.

NSS

NOT SOLD SEPARAT

COIL - field shunt assembly

1шт.

28

NSS

NOT SOLD SEPARAT

INSULATOR - field pole

4шт.

NSS

NOT SOLD SEPARAT

RIVET - field series coil ground

1шт.

A40402

STUD

- mounting, lever (Not Shown)

1шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

195-29

WASHER,7/16"

- SAE std. flat 7/16"

1шт.

92-7

LOCK WASHER,7/16"

2шт.
