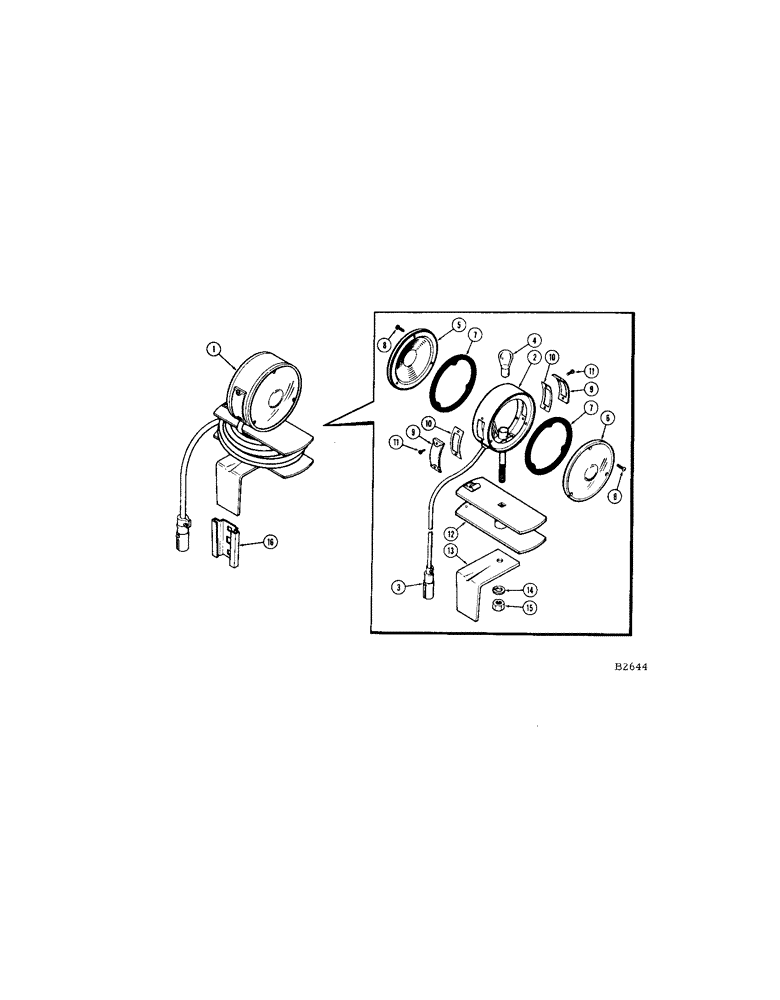

Запчасти Case IH 1660 (188[A]) - WARNING LAMP (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - warning, 12 volt (order A11066M)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - w/cord (order A11066M)

1шт.

3

B50259

PLUG

- (to auxiliary socket)

1шт.

4

33686

BULB

- lamp (21CP)

1шт.

5

B50337

LENS

- lamp (amber)

1шт.

6

B53962

LENS

- lamp (red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens (#6 x 1/2" N.C. rhd.)

6шт.

9

B50328

LENS - lamp, side (clear)

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens (#6 x 5/16" N.C. rhd.)

4шт.

12

B50330

SPOOL ASSEMBLY - lamp cord reel

1шт.

13

B50331

BRACKET - lamp mounting

1шт.

14

92-7

LOCK WASHER,7/16"

1шт.

15

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

16

A8179

SOCKET

- lamp positioning

1шт.

A27213

CONNECTOR - two wire lamp (Not Shown)

1шт.

A27039

CLIP - (11/32" dia.) wire (Not Shown)

4шт.

A27033

CLIP - (5/16" dia.) wire (Not Shown)

1шт.

F8875

WIRE - light switch (current side) to outlet socket (Not Shown)

1шт.
