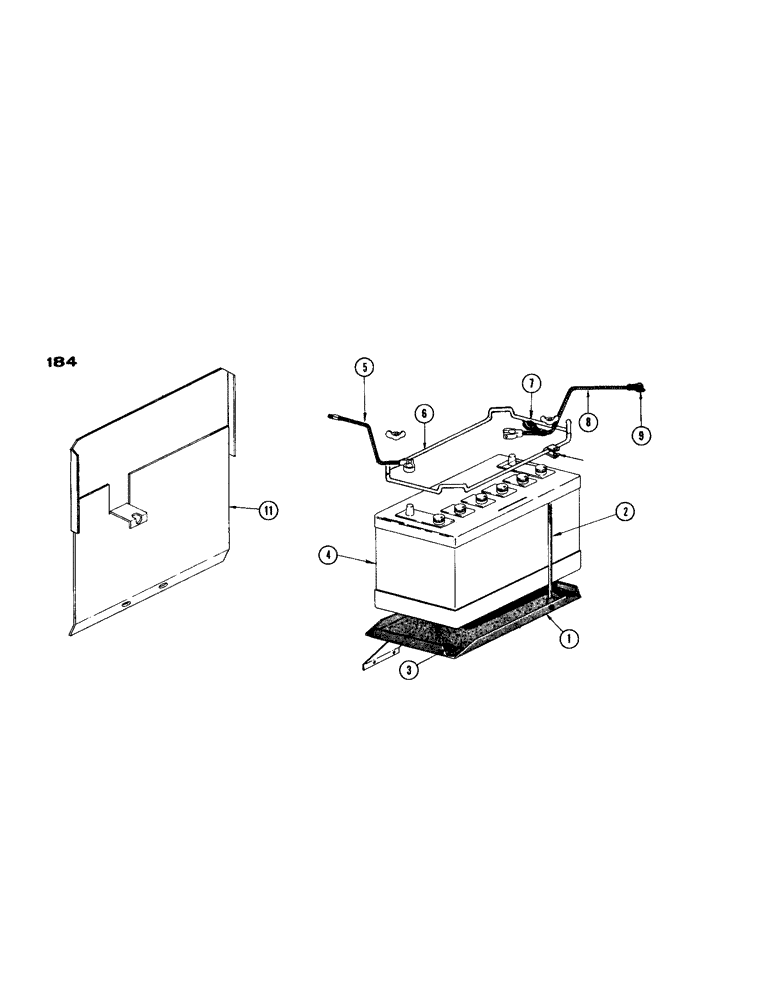

Запчасти Case IH 1660 (184) - BATTERY TRAY, BEFORE S/N 8368001 (55) - ELECTRICAL SYSTEMS

1

F86762

TRAY- battery

1шт.

2

A7368

ROD - hold down

2шт.

49-510

RIVET - 5/16" x 10/16" W.B.

2шт.

129-410

WING NUT,3/8"-16

- 3/8" N.C.

2шт.

3

A7390

PAD - rubber

2шт.

4

D44175

DRY BATTERY

- 12 volt

1шт.

5

A7441

CABLE

- battery ground

1шт.

6

F14452

HOLD DOWN - battery (Replaces A11243)

1шт.

A11243

FRAME - battery clamp (Replaced by F14452 when stocks are exhausted)

1шт.

7

A27072

COVER

- positive terminal

1шт.

8

A20634

CABLE -, Serial Range: battery-starter

1шт.

F13835

CLIP - for A20634 cable (Not Shown)

1шт.

9

A21753

CAP

NIPPLE - (rubber) positive terminal

1шт.

10

A35010

CLIP

- battery hold down

2шт.

11

F88730

SHIELD - heat (Replaces F13227)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

195-21

WASHER,5/16"

- SAE std. flat 5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.
