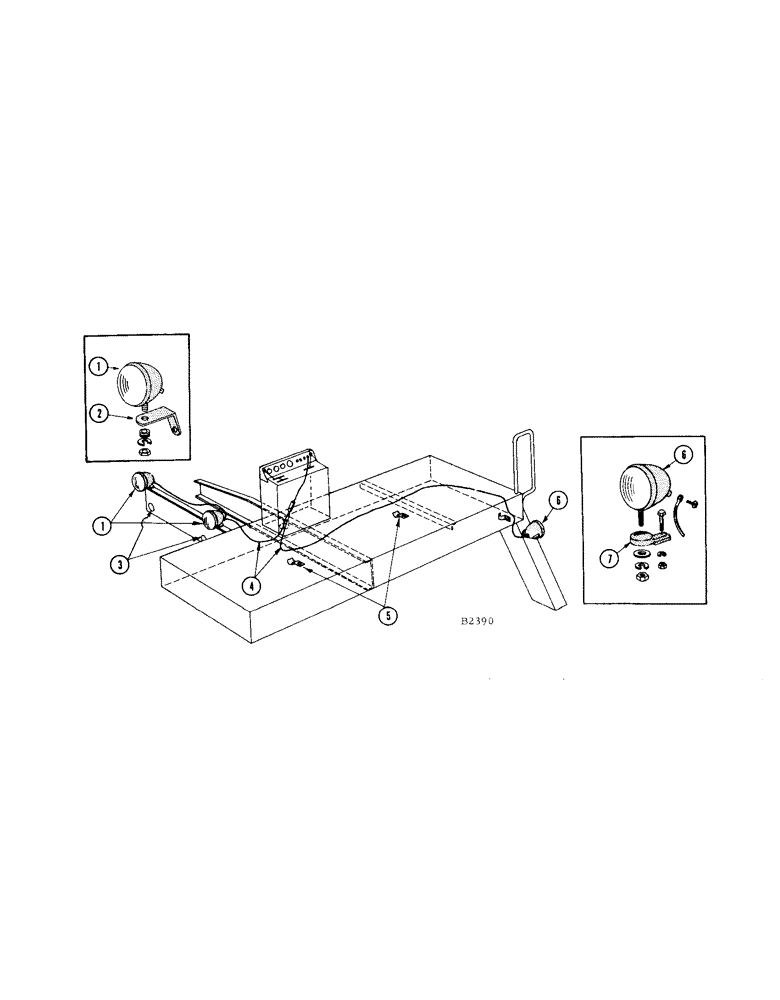

Запчасти Case IH 1660 (184[B]) - LIGHTING ATTACHMENT (55) - ELECTRICAL SYSTEMS

1

F82077

LAMP BASE

LAMP - head (12 - 16 volt)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

195-106

WASHER,1/2"

- SAE std. 1/2"

2шт.

2

F11398

BRACKET - head lamp mounting

2шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex.

1шт.

195-518

WASHER,1/4", SAE

1шт.

129-121

NUT,1/4"-28, G5

1шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex.

1шт.

129-123

NUT,3/8"-24, G5

1шт.

3

O3692N

GROMMET - rubber, head lamp

2шт.

4

F14025

WIRE - (pink to head lamp and dark blue to tail lamp)

1шт.

223-9

FUSE,9 Amp, Type SFE

- 9 amp.

1шт.

5

A27033

CLIP - wire, head and tail lamp

2шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. mach.

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

6

A20965

LAMP BASE

LAMP - combination, flood and tail

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

195-106

WASHER,1/2"

- U. S. std. flat 1/2"

1шт.

7

A34046

BRACKET

- tail lamp

1шт.

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1-1/4" N.F. hex.

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-123

NUT,3/8"-24, G5

1шт.
