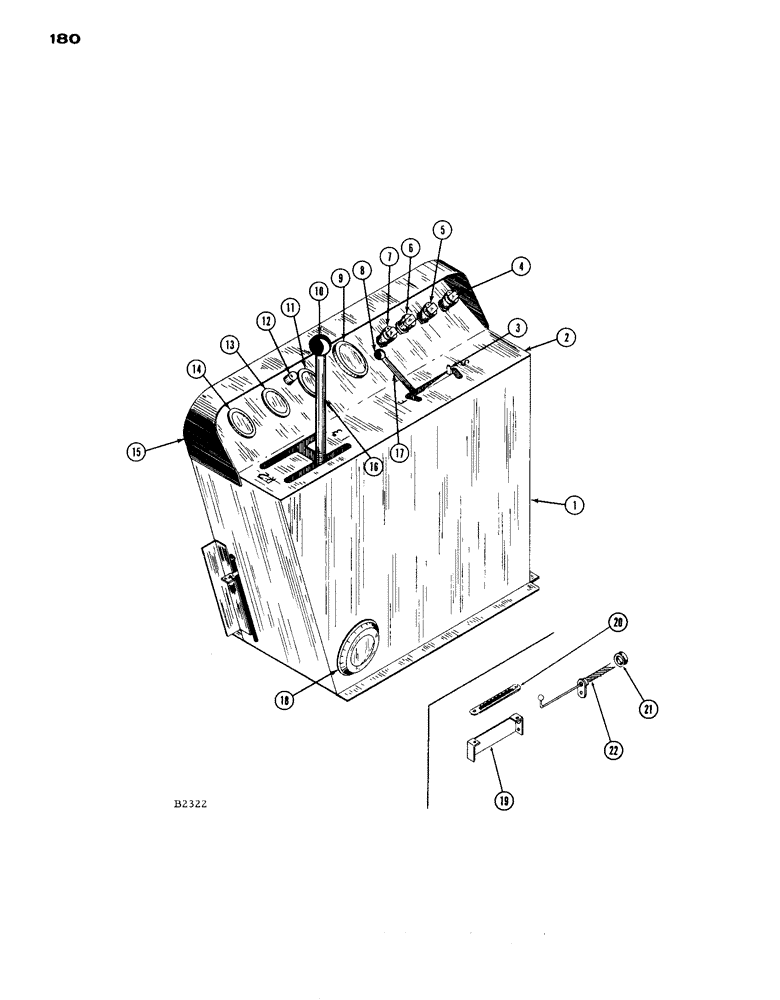

Запчасти Case IH 1660 (180) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

F87018

CONSOLE - instrument panel

1шт.

12-48

BOLT - 1/2" x 1/2" rhd. sq. nk.

2шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4" x 1/2" rhd. sq. nk.

2шт.

25-104

NUT,1/4"-20, G5

4шт.

2

F13867

PANEL - instrument

1шт.

3

F13122

BRACKET - idler positioning

1шт.

O1045FH

SPRING

- for Ref. 3

1шт.

4

F91851

SWITCH - flasher

1шт.

F22376

KNOB - flasher switch

1шт.

5

A10942

KIT

SWITCH - light

1шт.

A7817

KNOB

- light switch

1шт.

6

F91864

SWITCH

- ignition and starter

1шт.

F13869

X

KNOB - ignition and starter switch

1шт.

F14006

CLIP - for F91864

1шт.

7

F13010

KNOB

- choke

1шт.

F13896

CABLE - choke (Not Shown)

1шт.

8

F21683

KNOB

- throttle control rod

1шт.

9

F13114

SCREW

TACHOMETER

1шт.

F13115

GROMMET

- rubber

4шт.

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

- #10 x 3/4" tr. hd. mach.

4шт.

195-512

WASHER,#10

- SAE std. flat #10

4шт.

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - #10 - 32 N. F. Esna

4шт.

10

A23885

KNOB

- gear shift lever

1шт.

11

F13116

SCREW

GAUGE - oil pressure

1шт.

12

A24087

LAMP BASE

LIGHT - instrument panel, with wire

1шт.

A22349

BULB

- (#1445)

1шт.

13

F82423

GAUGE - temperature (#8368001 and after)

1шт.

F13117

GAUGE

- temperature (Before #8368001)

1шт.

14

F13118

AMMETER

1шт.

15

F87054

HOOD- instrument panel

1шт.

F13009

GASKET

MOLDING - hood (Not Shown)

1шт.

16

F13057

SCREW

LEVER - shift (see gear shift illustration)

1шт.

17

F13054

LEVER - throttle control

1шт.

18

D39286

GAUGE

KIT - engine hour meter

1шт.

F14007

HARNESS - electric cable (see electrical system)

1шт.

19

F14588

SUPPORT - gauge

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

20

F14589

PLATE - gauge

1шт.

187-1027

SCREW - #10 x 3/8" truss hd. slotted Type "A"

2шт.

21

F53340

GROMMET - scarf cut (speed cable thru cab)

1шт.

22

F14631

CABLE - speed indicator

1шт.

A26673

CLIP

2шт.

187-456

SCREW - #10 x 1/2" self-tapping truss hd. Type "A"

2шт.
