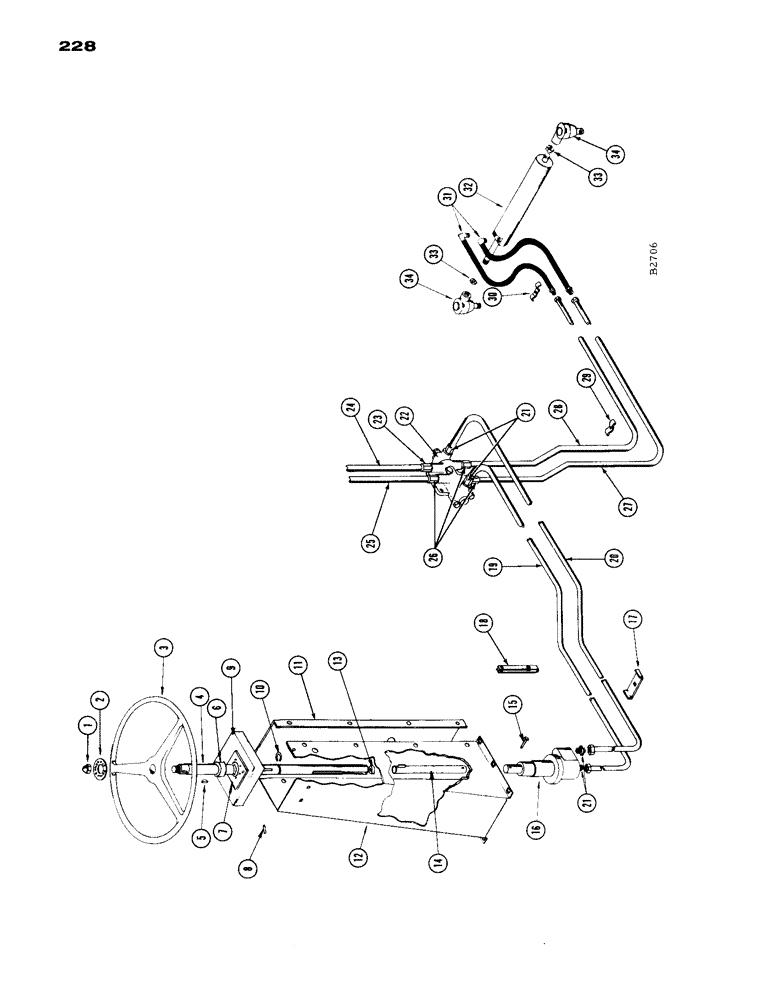

Запчасти Case IH 1660 (228) - HYDROSTATIC STEERING SYSTEM (41) - STEERING

1

A8744

NUT

- cap

1шт.

2

A8248

PLATE - steering wheel

1шт.

3

A7668

WHEEL

- steering

1шт.

4

F13049

SHAFT - steering

1шт.

5

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - Hi-pro #808

1шт.

6

F12987

NUT - adjusting

1шт.

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

BALL - 1/4" steel

6шт.

7

F86988

BEARING - steering shaft

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

8

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

1шт.

9

F1955

CAP - steering column

1шт.

175-417

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

- 1/4" x 1" truss hd. N.C. mach.

4шт.

195-518

WASHER,1/4", SAE

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

12-101

PIPE

NUT - 1/4" N.C. hex.

4шт.

10

F62205

RING, SNAP

SNAP RING - for Ref. 4, F13049

1шт.

11

F87024

PANEL - rear steering column

1шт.

12

F13031

COLUMN - steering

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.

6шт.

25-104

NUT,1/4"-20, G5

6шт.

13

F10666

CUSHION - rubber

1шт.

14

F86989

COLLAR - steering shaft

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

15

F12502

PIN - (3/8" x 1-7/16" straight)

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

F86570

PUMP - hand, hydrostatic

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

92-5

LOCK WASHER,5/16"

4шт.

17

F12441

CLAMP - hydraulic line

1шт.

18

F13963

HANGER - hydraulic line

2шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

19

F87607

LINE - hydraulic, inner hand pump to Ross valve

1шт.

20

F87608

LINE - hydraulic, outer, hand pump to Ross valve

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8 - F50X - S Parker, flared

4шт.

22

A37980

VALVE

- hydrostatic, power steering

1шт.

23

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - #6 - 8 F50X - S Parker, flared

1шт.

24

F87604

LINE - hydraulic, Ross, Serial Range: valve-reservoir

1шт.

25

F87603

LINE - hydraulic, pump to Ross valve

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - #6 F50X - S Parker, flared

3шт.

27

F13782

LINE - hydraulic, front of, Serial Range: valve-F12430

1шт.

28

F13783

LINE - hydraulic, rear of, Serial Range: valve-F12430

1шт.

29

F12067

CLIP - hydraulic line, for Ref. 27 and 28

1шт.

30

F17487

CLIP - hose (for F12430 hydraulic hose)

1шт.

14-4104

BOLT - 1/4" x 6-1/2" N.F. hex.

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

31

F12430

HOSE - hydraulic, steering cylinder

2шт.

32

F87848

CYLINDER - power steering

1шт.

33

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam

2шт.

34

F87308

SOCKET - cylinder

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

195-41

WASHER,5/8"

- SAE std. 5/8"

2шт.

25-119

NUT,9/16"-18, G5

- 9/16" N.F. hex. slotted

2шт.
