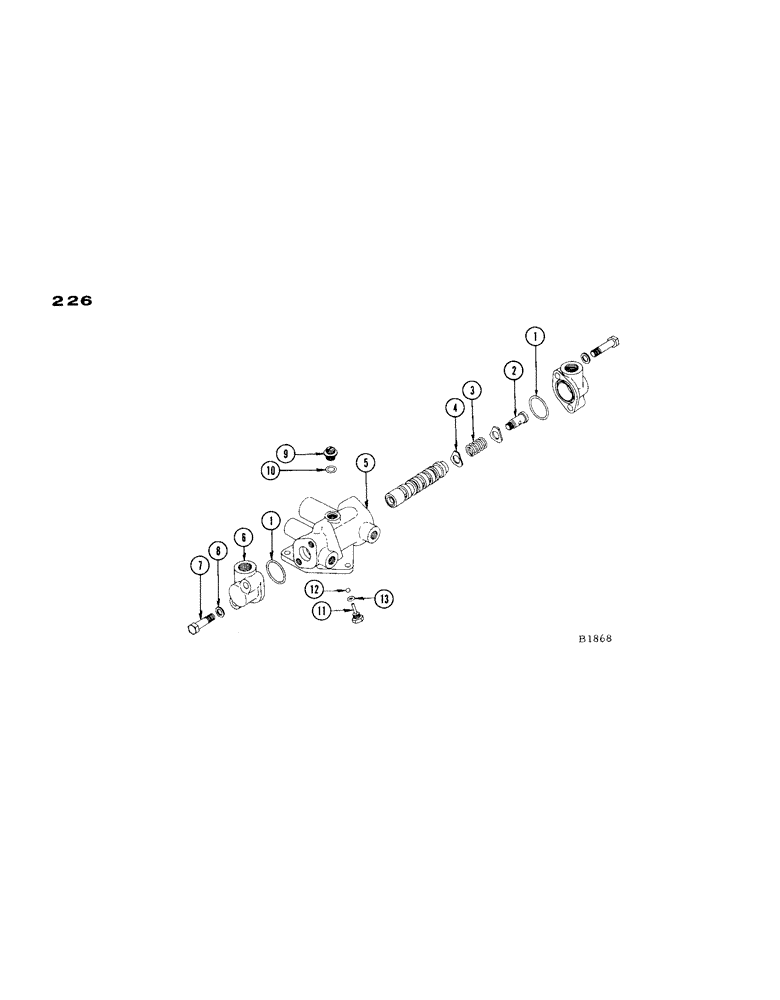

Запчасти Case IH 1660 (226) - A37980 POWER STEERING VALVE (41) - STEERING

1

F21003

O-RING,1.237" ID x 1.443" OD

SEAL - end cap

2шт.

2

F19623

SCREW,3/8" - 24 x 15/16"

- spring centering

1шт.

3

F19622

VALVE SPRING

SPRING - valve centering

1шт.

4

F19619

WASHER

- center

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

6

F19624

CAP

- end

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

8

F19626

WASHER - (11-16" O.D. x 25/64" I.D.) for Ref. 7

4шт.

9

F83122

PLUG

SCREW - adjusting

1шт.

10

F19628

O-RING

"O" RING

1шт.

11

F82943

VALVE

PLUG

1шт.

12

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

13

F19630

O-RING

"O" RING

1шт.
