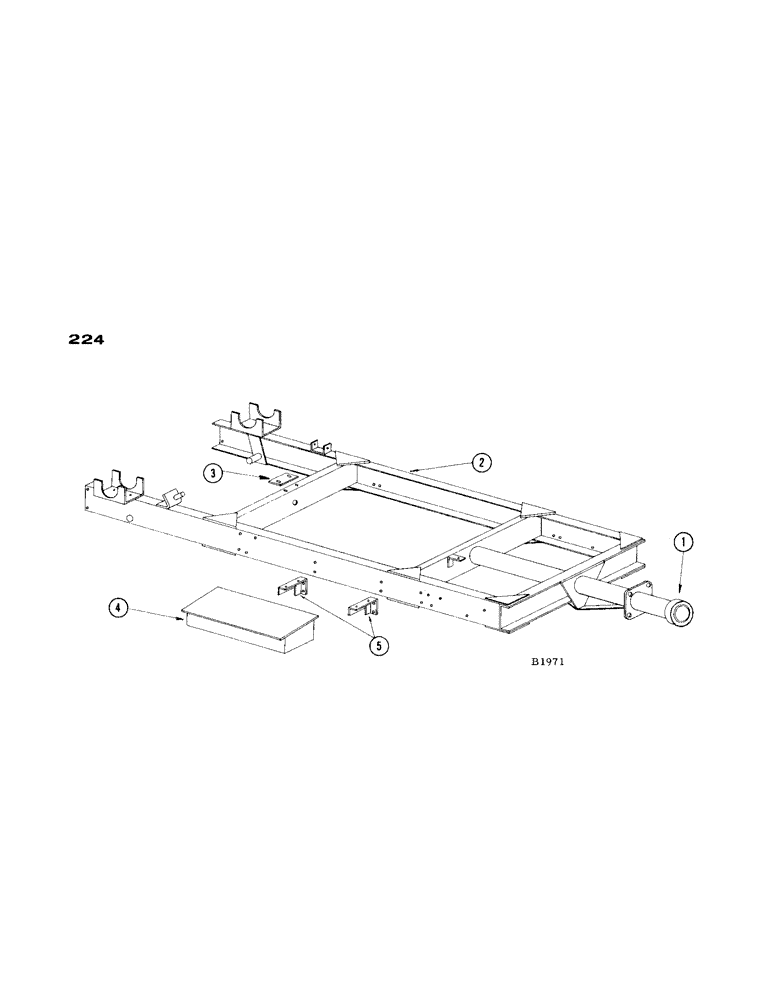

Запчасти Case IH 1660 (224) - MAIN FRAME AND TOOL BOX (39) - FRAMES AND BALLASTING

1

F8120

COLLAR

1шт.

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16" x 1-1/4" N.F. hex.

2шт.

131-7

LOCK NUT,7/16"-20

NUT - Elastic Stop

2шт.

2

F87049

FRAME - main

1шт.

3

F12228

PAD - transmission support

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.

2шт.

131-13

LOCK NUT,5/8"-18, GB

NUT - 5/8" N.F. Esna #29NE108

2шт.

4

3412HTA

TOOL BOX

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

5

F9510

ANGLE - tool box support

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

F9511

WRENCH - pitman adjustment screw (Not Shown)

1шт.
