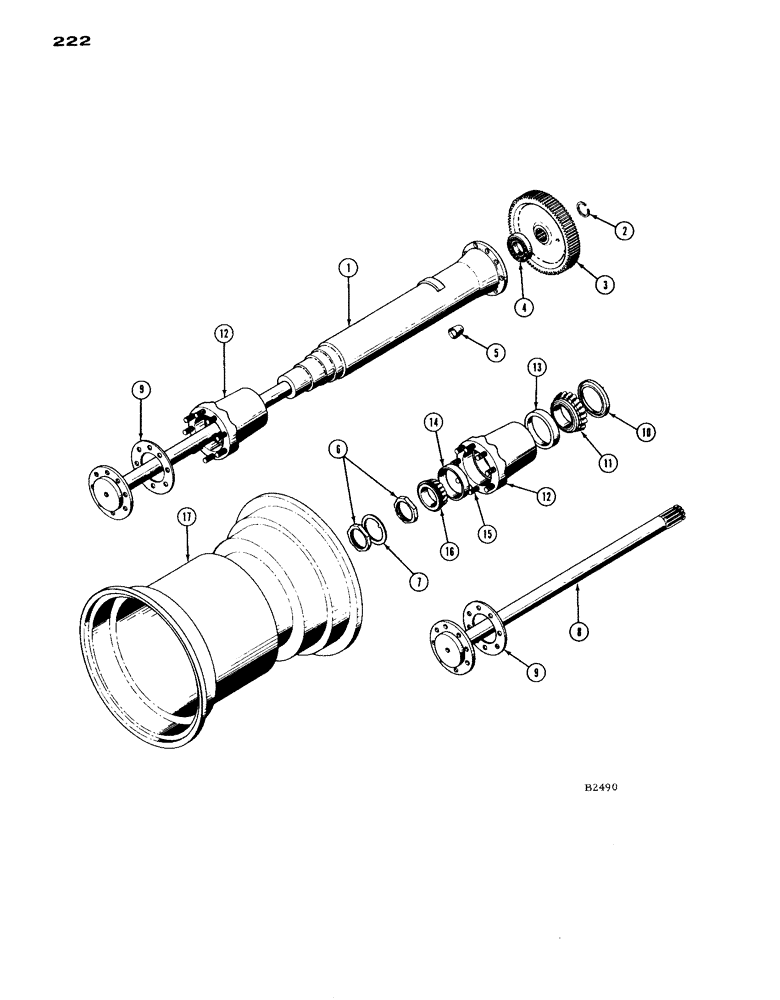

Запчасти Case IH 1660 (222) - MAIN AXLE AND HOUSING, DRIVE WHEELS AND HUBS (39) - FRAMES AND BALLASTING

1

F87744

HOUSING - axle, R.H.

1шт.

F87743

HOUSING - axle, L.H.

1шт.

2

F9815

SNAP RING - axle shaft

2шт.

3

F1282

GEAR - (79T) axle shaft and final drive

2шт.

4

F9812

BEARING

- final drive gear

2шт.

5

F9810

DOWEL - for F9806 stud

4шт.

6

F13542

LOCKNUT - hub bearing

4шт.

7

F13544

WASHER - hub bearing locknut

2шт.

8

F3159

SHAFT - axle

2шт.

9

F13545

GASKET - hub to axle shaft

2шт.

10

F13247

SEAL - oil, inner hub

2шт.

11

F13248

CUP ASSY.

CONE - inner, hub

2шт.

12

F88707

HUB - wheel

2шт.

13

F13546

CUP

BEARING CUP - inner

1шт.

14

A14985

BEARING CUP

- outer

1шт.

15

F14992

STUD - wheel hub (Replaces F13548)

8шт.

16

A14984

ROLLER BEARING

CONE - outer, hub

2шт.

17

F87127

WHEEL - DW - 16 (Replaced by F88294 when stock is exhausted)

2шт.

F88294

WHEEL - DW - 16 - 26 (Replaces F87127)

2шт.

F87621

WHEEL - DW - 20 (Replaced by F88296 when stock is exhausted)

2шт.

F88296

WHEEL - DW - 20 - 26 (Replaces F87621)

2шт.

F62206

NUT

- wheel

16шт.
