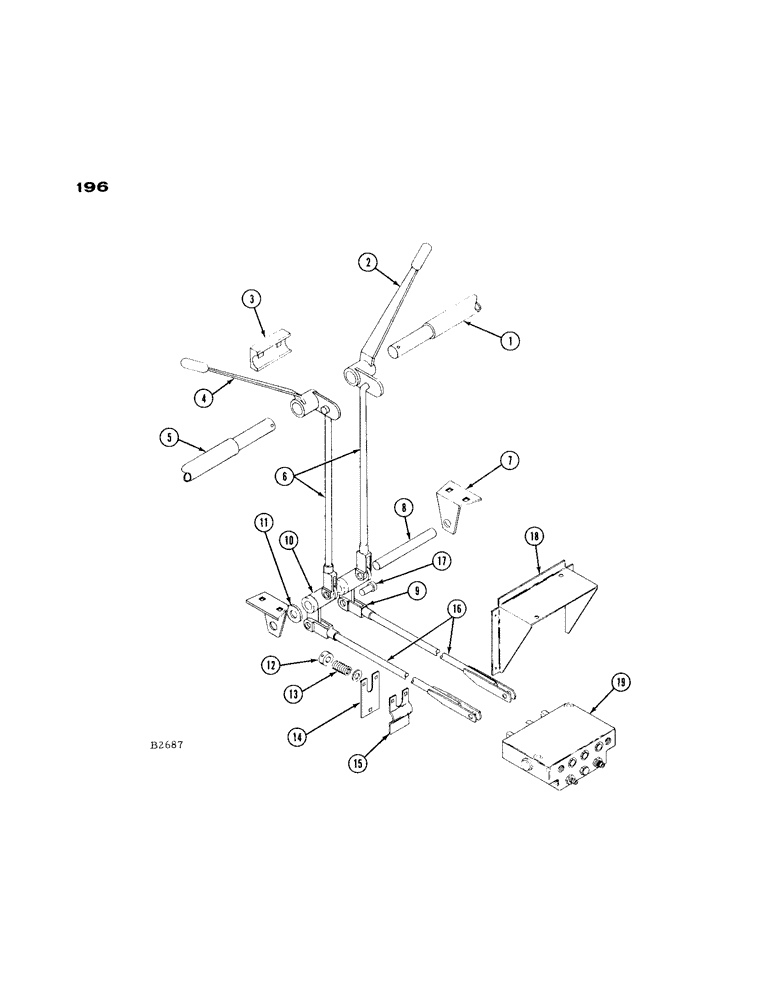

Запчасти Case IH 1660 (196) - HEADER LIFT AND VARIABLE, SPEED CONTROL LINKAGE (35) - HYDRAULIC SYSTEMS

1

F87022

HANDRAIL - front R.H. (see operator's platform)

1шт.

2

F1211

LEVER - control, R.H.

1шт.

3

F1078

JOINT

BLOCK - spacer, front handrail

1шт.

11-632

BOLT,Short NK, 3/8"-16 x 2", G2

- 3/8" x 2" rhd. sq. nk.

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

4

F1213

LEVER - L.H. control

1шт.

5

F87021

HANDRAIL - front L.H. (see operator's platform)

1шт.

6

F13030

ROD - control, upper

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

F11948

BRACKET - pivot, bellcrank

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

8

F11947

SHAFT - pivot, bellcrank

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - upper and lower control rods (both end of F1082)

4шт.

10

F1082

BELLCRANK

2шт.

11

O4413N

WASHER - for F11947 shaft

3шт.

12

F10117

COLLAR - adjusting

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

1шт.

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex jam

1шт.

13

230EB

SPRING

1шт.

14

F10910

CLAMP - V.S. clutch, toggle arm

1шт.

15

F10909

ARM - toggle, V.S. clutch

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

3шт.

25-4

LOCKWASHER - 1/4"

3шт.

16

F87529

ROD - control

2шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

2шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

18

F13787

BRACKET - mounting, control valve

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

4шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

F88156

VALVE - control

1шт.

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

BOLT - 5/16" x 2-1/4" N.F. hex.

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.

F13790

PIN

- clevis, for F88156 Ref. 19 (Not Shown)

3шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.
