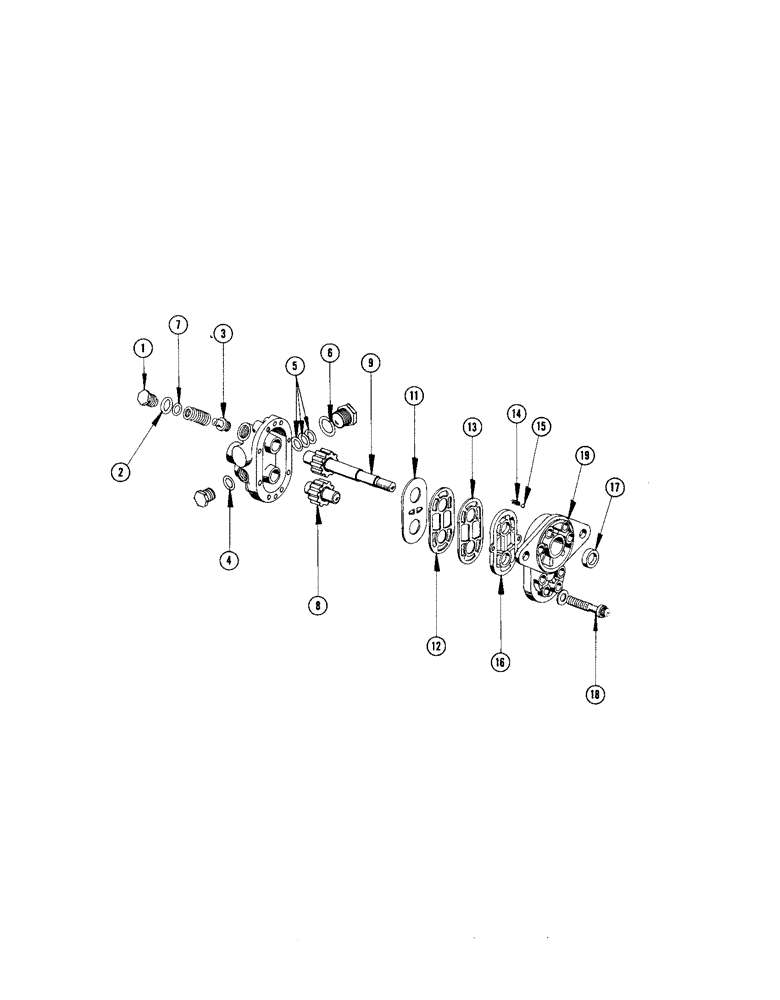

Запчасти Case IH 1660 (192[A]) - F88935 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

F10890

PLUG

- 9/16 - 18 UNF hex.

1шт.

2

F59121

O-RING

"O" RING - 7/16" I.D. x 3/32" thick

1шт.

3

FH732180

VALVE POPPET

POPPET

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - 5/8" I.D. x 3/32" thick

1шт.

5

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

"O" RING - 11/16" I.D. x 1/16" thick

3шт.

6

F10895

X

"O" RING - 7/8" I.D. x 3/32" thick

1шт.

7

F12267

WASHER

SHIM - relief valve

1шт.

8

F88937

GEAR

- idler (includes shaft)

1шт.

9

F88936

GEAR - drive (includes shaft)

1шт.

10

RESERVED

1шт.

F88938

GASKET KIT

KIT - seal repair

1шт.

11

F11404

DIAPHRAGM

1шт.

12

F11405

GASKET

- back up

1шт.

13

F10896

GASKET

SEAL - protector

1шт.

14

F9883

SPRING

2шт.

15

211-6

BALL,7/32" Dia

2шт.

16

F11409

SEAL

- diaphragm

1шт.

17

F11406

SEAL

1шт.

F59121

O-RING

"O" RING - 7/16" I.D. x 3/32" thick

1шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - 5/8" I.D. x 3/32" thick

1шт.

F30415

O-RING,3" ID

"O" RING - 3" I.D. x 1/16" thick

1шт.

f

10895

"O" RING - 7/8" I.D. x 3/32" thick

1шт.

18

F11407

X

CAP SCREW

8шт.

19

F79198

PLATE ASSY.

PLATE - front

1шт.

F30416

BODY

- pump (includes (2) dowel pins)

1шт.
