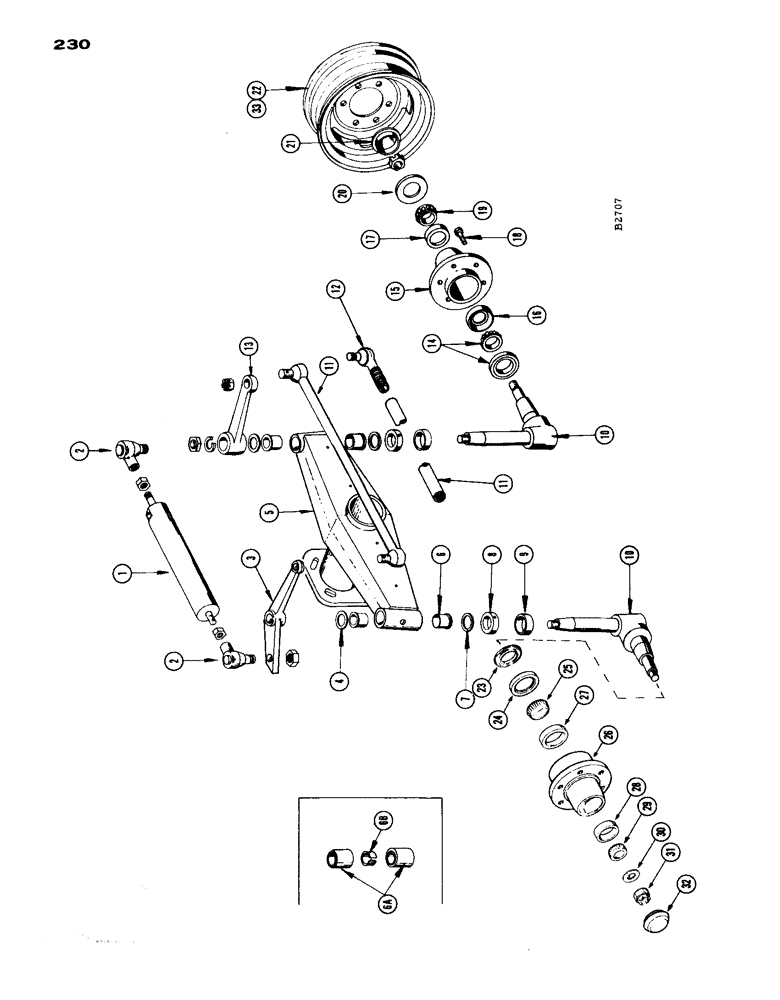

Запчасти Case IH 1660 (230) - STEERING ARMS AND AXLE, WHEELS FOR STEERING AXLE (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
1
F87848
CYLINDER - power steering
1шт.
2
F87308
SOCKET - cylinder
2шт.
3
F87343
CRANK - control arm (Wide Axle-Grain)
1шт.
F87420
CRANK - control arm (Narrow Axle-Grain)
1шт.
4
O168CB
WASHER - shim
1шт.
V20203
PLATE
WASHER
1шт.
5
F87412
AXLE - rear (Narrow-34") with Bushings
1шт.
F87415
AXLE - rear (Wide - 66") with Bushings
1шт.
F88491
AXLE - rear (wide-78") with Bushings
1шт.
6
F10298
BUSHING - for all rear axles (Before #8334601)
4шт.
6a
F14817
BUSHING - for rear axles (#8334601 and after)
4шт.
6b
F14819
SPACER - for rear axles (#8334601 and after)
2шт.
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - 1/8" x 45deg.
2шт.
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
FITTING - 1/8" x 67-1/2deg.
1шт.
7
F10300
WASHER
2шт.
8
A27602
THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"
BEARING
2шт.
9
F10299
SLEEVE - for A27602 bearing
2шт.
10
F88905
SPINDLE - R.H. & L.H. (#8368001 and after)
2шт.
126-140
WOODRUFF KEY,#G, 3/8" x 1 1/2", HT
2шт.
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
25-1516
NUT,Jam, 1"-14, G5
- 1" N.F. Jam
2шт.
F86417
SPINDLE - R.H. & L.H. (Grain) (Before #8368001)
2шт.
126-40
WOODRUFF KEY,#G, 3/8" x 1 1/2"
2шт.
25-1516
NUT,Jam, 1"-14, G5
- 1" N.F. hex. jam
2шт.
25-1316
NUT,1"-14, G5
NUT, SLOTTED, 1"-14, G5
2шт.
132-97
COTTER PIN,3/16" x 1 3/4"
Pin, Split (Cotter), 3/16" x 1 3/4"
2шт.
11
F12739
HOUSING
ROD - tie (wide axle - 66")
1шт.
F12740
ROD - tie (narrow axle - 34")
1шт.
F14937
ROD - tie (wide axle-78")
1шт.
12
F86782
END - tie rod, R.H. thread (for F12739, F12740 or F14937)
1шт.
25-1416
NUT,Jam, 1"-8, G5
- 1" - 8 N.C. jam R.H. thd.
1шт.
25-139
SLOTTED NUT,9/16"-18, G5
NUT - 9/16" - 18 N.F. slotted
1шт.
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
1шт.
F86783
END - tie rod, L.H. thread (for F12739, F12740 or F14937)
1шт.
129-350
NUT - 1" - 8 N.C. jam L.H. thd.
1шт.
25-139
SLOTTED NUT,9/16"-18, G5
NUT - 9/16" - 18 N.F. slotted
1шт.
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
1шт.
13
F3150
ARM - spindle, R.H.
1шт.
14
F86364
BEARING CONE
CONE and SEAL - wheel bearing, inner, Serial Range: -8368001
2шт.
15
F87265
HUB - wheel, Includes: Ref. 16 & 17, Serial Range: -8368001
2шт.
16
F62097
CUP ASSY.
CUP - inner bearing, Serial Range: -8368001
1шт.
17
F12408
CUP - outer bearing, Serial Range: -8368001
1шт.
18
F14769
BOLT - hub (Replaces B15558), Serial Range: -8368001
12шт.
129-166
JAM NUT,Jam, 9/16"-18, G5
, Serial Range: -8368001
12шт.
19
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
CONE - wheel bearing, outer, Serial Range: -8368001
2шт.
20
A31148
WASHER
- spindle, Serial Range: -8368001
2шт.
21
G57436
CYLINDER END CAP
CAP - hub, Serial Range: -8368001
2шт.
22
F87191
WHEEL - disc, for 7.50 x 18 4 ply Implement tire, Serial Range: -8368001
2шт.
A57250
OIL SEAL
KIT - oil seal & retainer, Includes: Ref. 23 & 24, Start Serial: 8368001
2шт.
23
NSS
NOT SOLD SEPARAT
SEAL - oil retainer - inner half, Start Serial: 8368001
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL - oil retainer - outer half, Start Serial: 8368001
1шт.
25
A29063
ROLLER BEARING,44.463 mm ID x 25.476 mm
CONE - inner bearing, Start Serial: 8368001
2шт.
26
A57338
HUB ASS'Y, Includes: Ref. 27 & 28, Start Serial: 8368001
2шт.
27
A29062
ROLLER BEARING,82.956 mm OD x 19.101 mm
CUP - inner bearing, Start Serial: 8368001
1шт.
28
A27631
CUP
- outer bearing, Start Serial: 8368001
1шт.
29
A29465
ROLLER BEARING,34.938 mm ID x 24.684 mm
CONE - outer bearing, Start Serial: 8368001
2шт.
30
A26789
BEARING WASHER
WASHER - spindle, Start Serial: 8368001
2шт.
31
25-1918
SLOTTED NUT,1 1/8"-12, G5, Thk
NUT - wheel spindle (slotted), Start Serial: 8368001
2шт.
132-97
COTTER PIN,3/16" x 1 3/4"
Pin, Split (Cotter), 3/16" x 1 3/4", Start Serial: 8368001
2шт.
32
A29425
CAP
- hub, Start Serial: 8368001
2шт.
33
F88910
WHEEL - 11L-15 (4 ply flotation tire), Start Serial: 8368001
2шт.
B18262
BOLT- hub, Start Serial: 8368001
12шт.
Выбрано товаров: 62
