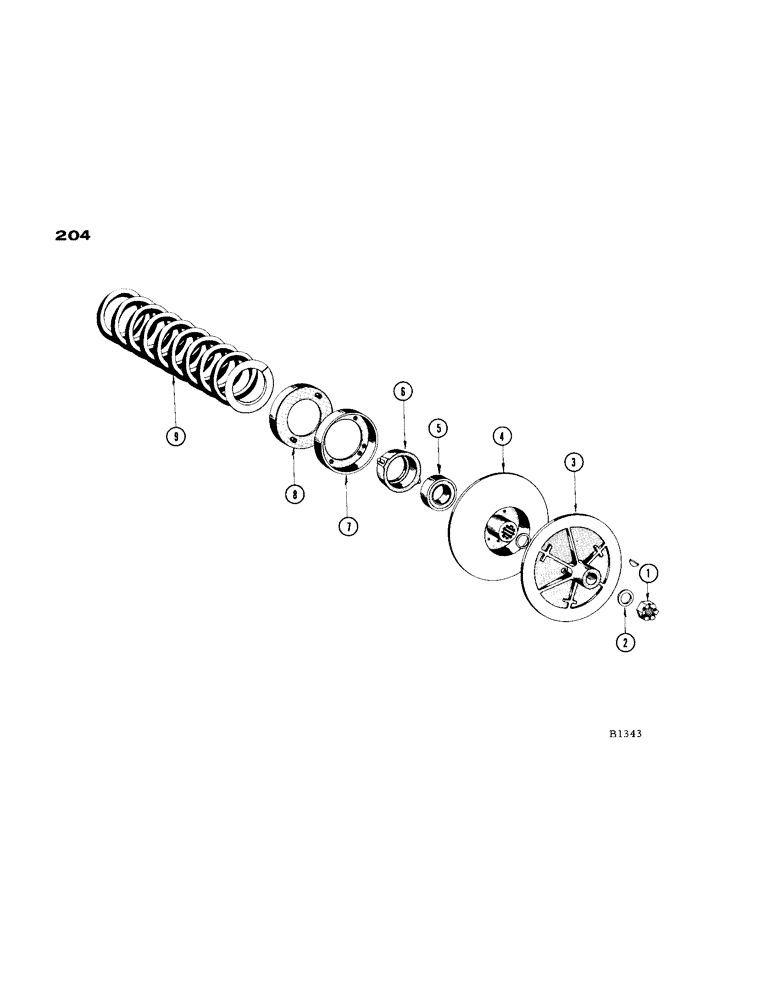

Запчасти Case IH 1660 (204) - VARIABLE SPEED TRACTION DRIVE (16) - TRACTION VARIATOR

1

F9830

NUT

- (1" N.F. slotted - L.H. thread)

1шт.

2

F10886

WASHER - hardened

1шт.

3

F86991

SHEAVE - half

1шт.

F12994

BUSHING

3шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

4

F86990

SHEAVE - half

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

5

F10898

BALL BEARING

BEARING

1шт.

6

F3045

CARRIER - bearing housing (F10898)

1шт.

7

F6044

PLATE

1шт.

8

F75779

PLATE - spring retaining

1шт.

9

F6043

SPRING

1шт.

F13587

SHAFT

- (see clutch shaft and housing) Replaced by F14812 when stock is exhausted)

1шт.

F14812

SHAFT

- (Replaces F13587)

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
