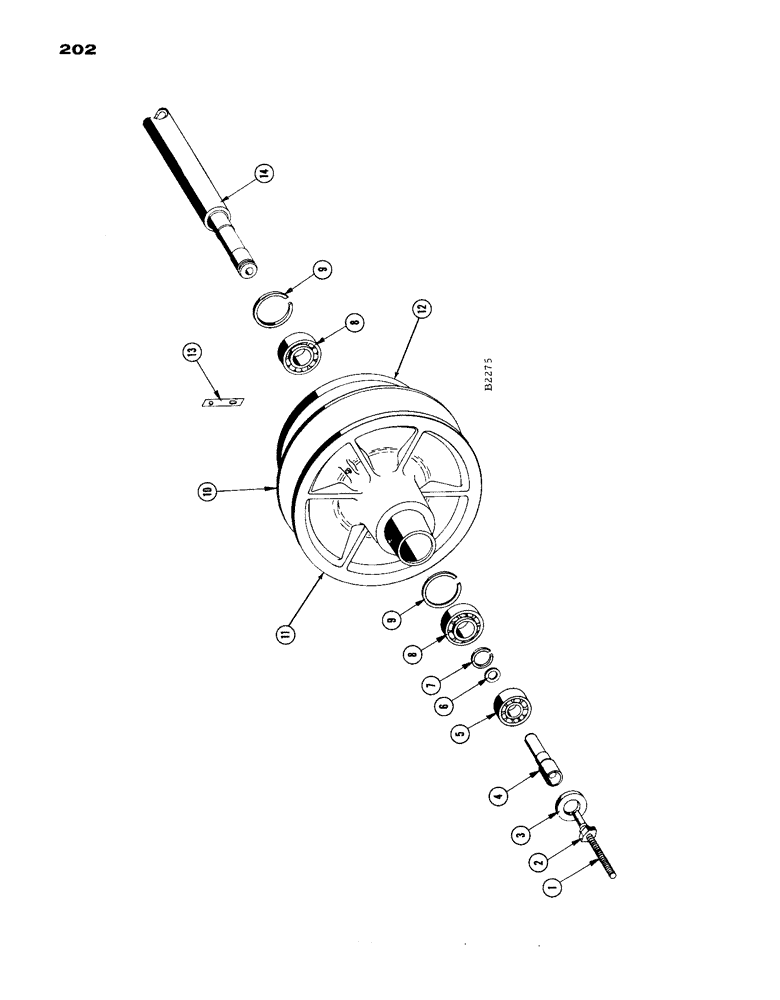

Запчасти Case IH 1660 (202) - VARIABLE SPEED TRACTION DRIVE SHEAVES (16) - TRACTION VARIATOR

1

F13696

ROD - adjusting

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex. jam

1шт.

2

O4027CS

NUT

- adjusting

1шт.

3

F10921

OIL SEAL

SEAL

1шт.

4

F12619

PLUG - bearing support

1шт.

5

F8890

BEARING, BALL

BEARING - adjusting rod

1шт.

6

F12966

WASHER

1шт.

7

A21619

CIRCLIP

SNAP RING

1шт.

8

F10753

BEARING

2шт.

9

B18276

RING, SNAP

SNAP RING

2шт.

A30091

RING, SNAP

SNAP RING - for sheave (Not Shown)

1шт.

10

F86724

SHEAVE - V.S traction drive (Replaced by F94073 when stocks are exhausted)

1шт.

F13346

BUSHING

- traction drive sheave

3шт.

136-60

PIN, SPLIT (COTTER)

COTTER - hair pin, 5/8" x 1-45/64"

3шт.

138-2009

PIN,3/16" x 1", Coiled

3шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - 1/4" - 28

2шт.

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" N.C. hex.

6шт.

10

F94073

X

SHEAVE - V.S. traction drive (Replaces F86724)

1шт.

F13346

BUSHING

- traction drive sheave

3шт.

136-60

PIN, SPLIT (COTTER)

COTTER - hair pin, 5/8" x 1-45/64"

3шт.

138-2009

PIN,3/16" x 1", Coiled

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" N.C. hex.

6шт.

10

NSS

NOT SOLD SEPARAT

SHEAVE - V.S. traction drive (Replaces F94073 and F86724 when stock is exhausted)

1шт.

11

F94074

SHEAVE

HALF and PINS

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

136-60

PIN, SPLIT (COTTER)

COTTER- hairpin, 5/8" x 1-45/64"

3шт.

12

F1765

SHEAVE HALF - #8368001 and after

1шт.

F1921

SHEAVE HALF - (Before #8368001)

1шт.

F13346

BUSHING

3шт.

F1922

HUB - (Before #8368001)

1шт.

F1766

HUB

- (#8368001 and after)

1шт.

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" N.C. hex. Gr. 8 (Before #8368001)

6шт.

113-313

BOLT - 7/16" x 1" N.C. hex. Gr. 9 (#8368001 and after)

6шт.

13

F30507

STRAP - lockwasher (#8368001 and after)

3шт.

F12618

STRAP - lockwasher (Before #8368001)

3шт.

14

F88236

SHAFT - V.S. upper (Replaces F87477 when stock is exh.)

1шт.

F87477

SHAFT - V.S. upper (Replaced by F88236 when stock is exh.)

1шт.

F13212

V-BELT

Variable Speed Traction Drive, Not Shown

1шт.

F13800

BELT

Traction Drive, Not Shown

1шт.
