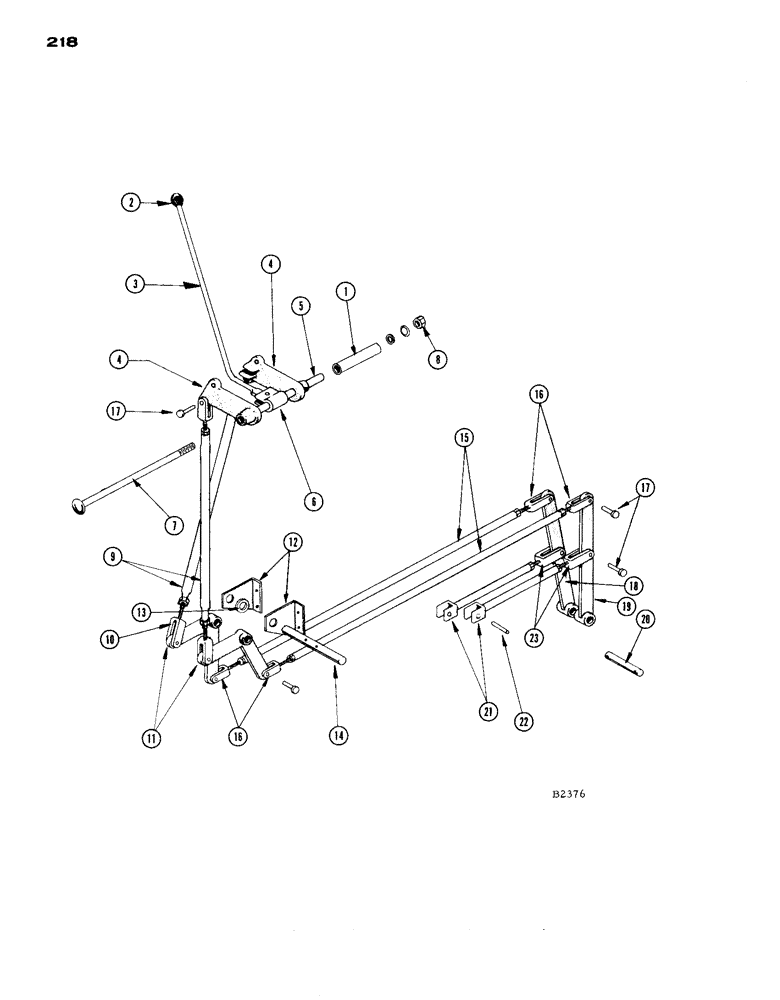

Запчасти Case IH 1660 (218) - GEAR SHIFT LINKAGE (14) - MAIN GEARBOX & DRIVE

1

F13055

SCREW

SPACER - pivot shaft

1шт.

2

A23885

KNOB

- gear shift lever

1шт.

3

F13057

SCREW

LEVER - gear shift

1шт.

4

F1956

ARM - selector

2шт.

5

F13059

SCREW

SHAFT - gear shift pivot

1шт.

6

F8171

CLAMP - shift lever

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

1шт.

131-5

LOCK NUT,3/8"-16, GB

NUT - 3/8" N.F. Esna #29-NE-064

1шт.

7

111-352

BOLT - 3/8" x 8" rhd. sq. nk.

1шт.

195-25

WASHER,3/8"

- SAE std. flat 3/8"

1шт.

8

131-5

LOCK NUT,3/8"-16, GB

STOP NUT - elastic, 3/8" - 24 N.F.

1шт.

9

F11958

ROD - shift, upper

2шт.

10

VR2694

CLEVIS - for Ref. 9, F11958

4шт.

11

F77542

BELLCRANK - gear shift pivot

2шт.

12

F11830

BRACKET - pivot, shift and clutch

2шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

13

O2736AB

WASHER - for F11968

2шт.

14

F11968

PIN - pivot (5/8" x 9-1/4") for F11830 bracket

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

15

F13606

ROD - shift, lower

2шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

2шт.

16

VR2694

CLEVIS - for Ref. 15

4шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , for VR2694, Ref. 10, 16 and 23 3/8" x 1.060"

10шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

10шт.

18

F77543

ARM - shift control (1st and reverse) Replaced by F88654 when stocks are exhausted

1шт.

F88654

ARM - shift control (1st and reverse) (2nd and 3rd) Replaces F77543 and F77544

2шт.

19

F77544

ARM - shift control (2nd and 3rd) Replaced by F88654 when stocks are exhausted

1шт.

20

F9279

PIN - pivot (attaches F77543 and F77544 to main frame)

1шт.

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

21

F87428

ROD - shift, with welded clevis

2шт.

22

F9282

PIN - clevis

2шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

23

VR2694

CLEVIS - for Ref. 21

2шт.
