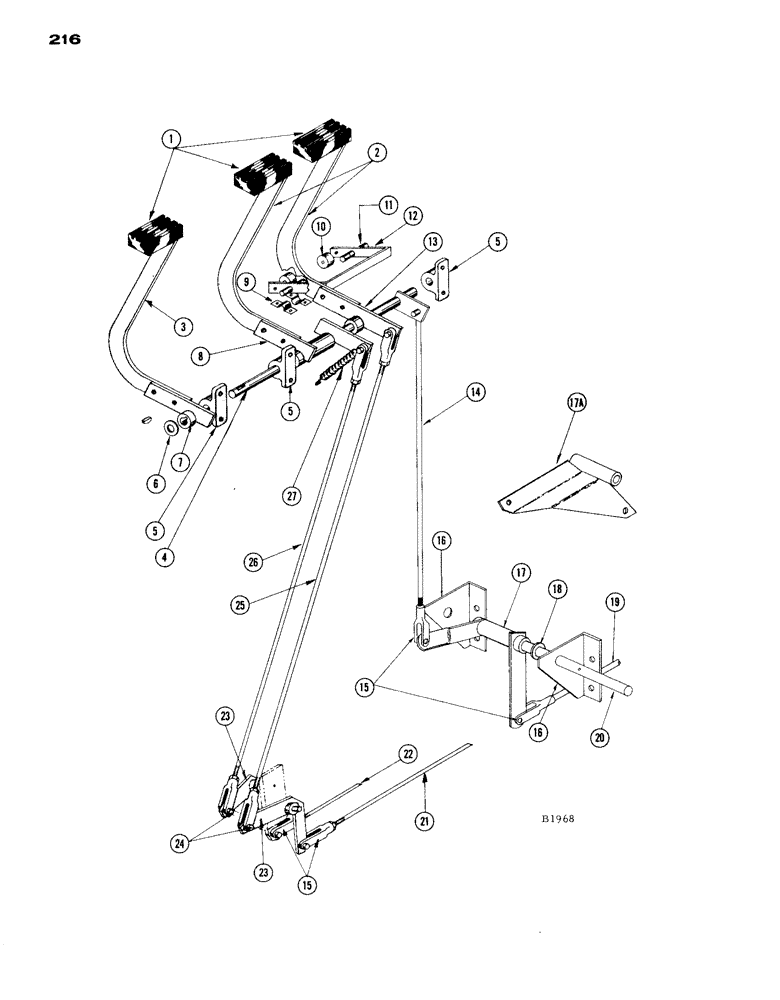

Запчасти Case IH 1660 (216) - BRAKE AND CLUTCH PEDALS (14) - MAIN GEARBOX & DRIVE

1

F9197

PAD

COVER - pedal, clutch and brake

3шт.

2

F77503

PEDAL - brake, same as Ref. 3

2шт.

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - 3/8" x 1-1/8" N.F. hex.

4шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

3

F77503

PEDAL - clutch, same as Ref. 2

1шт.

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - 3/8" x 1-1/8" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

4

F86093

SHAFT - pivot, clutch and brake pedal

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

5

F1227

BEARING - pivot, clutch and brake pedal

3шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

6шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

6

F62102

WASHER - for F86093 shaft

1шт.

7

F87017

HUB - clutch pedal

1шт.

8

F77499

HUB - for L.H. brake pedal

1шт.

219-33

LUBE NIPPLE,30 Degree Elbow, 5/16" NPTF

FITTING - grease

1шт.

9

F8161

CLIP - anchor, for Ref. 11

4шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4" x 1/2" rhd. sq. nk.

8шт.

25-104

NUT,1/4"-20, G5

8шт.

10

F8159

CAM - parking brake

2шт.

11

F8160

SHAFT - pivot, parking brake

2шт.

12

F8158

LEVER - parking brake

1шт.

14-618

SCREW,Hex, 3/8" - 24 x 1 1/8", Gr 5

BOLT - 3/8" x 1-1/8" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

13

F77498

HUB - for R.H. brake pedal

1шт.

219-33

LUBE NIPPLE,30 Degree Elbow, 5/16" NPTF

FITTING - grease

1шт.

14

F11971

ROD - clutch, upper

1шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for Ref. 14, 19, 21, 22, 25 and 26

1шт.

16

F11830

BRACKET - brake and clutch pivot

2шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

17

F88051

CRANK

BELLCRANK - clutch pivot (Replaced by F88510 when stocks are exhausted)

1шт.

17a

F88510

ARM ASSY.

BELLCRANK - clutch pivot (Replaces F88051)

1шт.

18

O2736AB

WASHER - clutch bellcrank pivot

2шт.

19

F87423

ROD - lower clutch

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

20

F11968

PIN - pivot (5/8" x 9-1/4") for Ref. 16

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21

F87425

ROD - lower brake, R.H.

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

22

F87427

ROD - lower brake, L.H.

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

23

F77540

BELLCRANK - brake pivot

2шт.

24

O5341CS

PIN - clevis, for 213-3

11шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

9шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

25

F87540

ROD - upper brake, R.H. w/clevis

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

26

F87538

ROD - upper brake, L.H. w/clevis

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

1шт.

27

O2533AB

SPRING - tightener arm

3шт.
