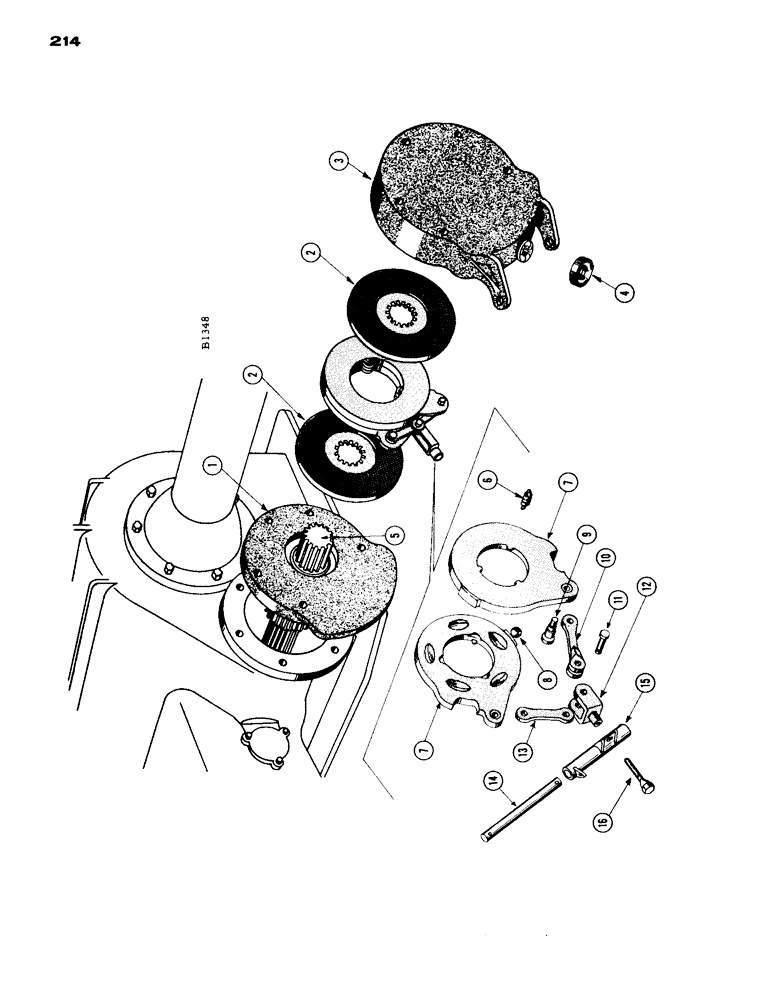

Запчасти Case IH 1660 (214) - DIFFERENTIAL BRAKE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

F77792

ADAPTER - brake housing plate

2шт.

F9744

OIL SEAL

SEAL - oil (Not Shown) see differential

1шт.

2

F77869

CLUTCH DISC

DISC - middle w/linings (linings not furnished separately)

4шт.

3

F1278

HOUSING - brake

2шт.

113-302

X

BOLT - 7/16" x 5" N.C. hex. Gr. 7-8 stl.

10шт.

92-7

LOCK WASHER,7/16"

10шт.

4

F9792

BOOT - dust, brake housing

2шт.

5

F3096

SHAFT - differential (see differential)

2шт.

6

A30897

SPRING

- actuating disc

6шт.

7

F1286

DISC - brake actuating

4шт.

8

211-19

BALL,7/8" Dia

- (.) for Ref. 7 7/8" Dia

10шт.

9

A30898

STEP BOLT

STUD

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF jam light

4шт.

10

F77868

LINK

- actuating disc, straddle

2шт.

11

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

F3089

YOKE - brake operating lever

2шт.

13

F3116

X

LINK - actuating disc, single

2шт.

14

F9255

PIN - pivot, brake lever

2шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

15

F1252

BRAKE - actuating, R.H.

1шт.

F1329

LEVER - actuating, L.H.

1шт.

16

F9256

BOLT - adjustment

2шт.

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex. jam

2шт.
