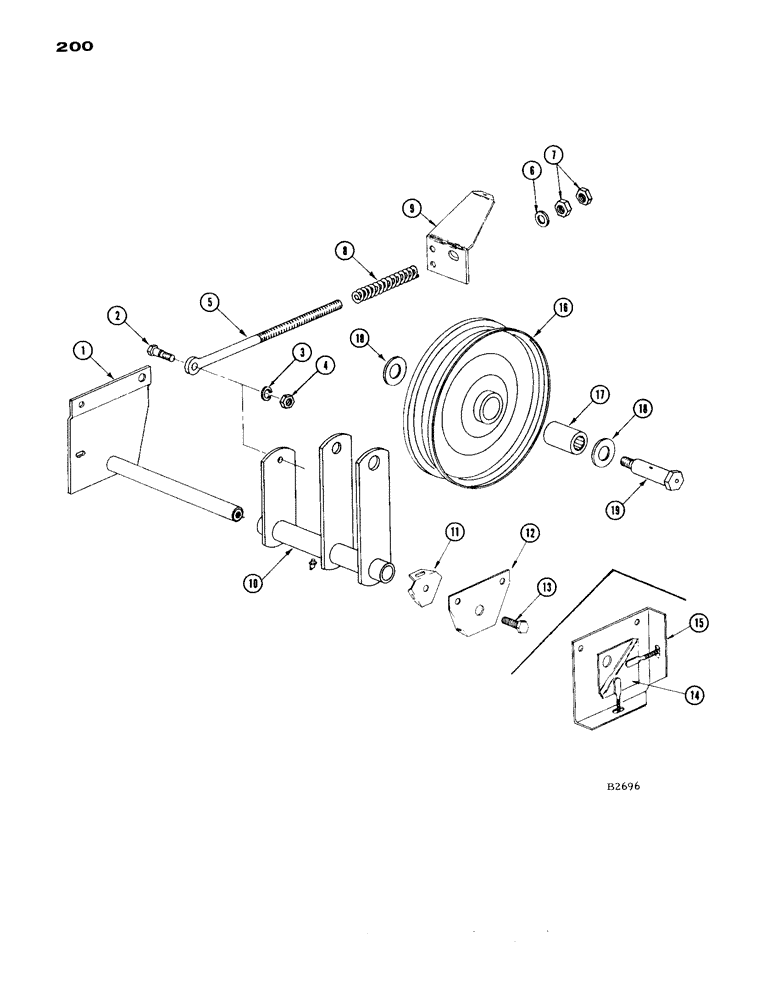

Запчасти Case IH 1660 (200) - MAIN DRIVE SHAFT, TRACTION DRIVE TIGHTENER (14) - MAIN GEARBOX & DRIVE

1

F87600

PLATE - anchor

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

2

F11259

BOLT - shoulder

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

5

F12641

ROD - adjusting

1шт.

129-122

NUT,5/16"-24, G5

2шт.

6

195-103

WASHER,5/16"

- 3/8" U.S. std. flat

1шт.

7

129-122

NUT,5/16"-24, G5

2шт.

8

F10901

SPRING - for Ref. 5

1шт.

9

F14846

ANCHOR - spring (Replaces F13959)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

10

F87601

HUB - pivot

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

11

F12508

CUP - adjustment, main drive idler (Before #8334601)

1шт.

11-548

BOLT - 5/16" x 3" rhd. sq. nk.

1шт.

131-4

LOCK NUT,5/16"-18, GB

Elastic stop 5/16"-18, GB

3шт.

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2

2шт.

12

F13974

BRACKET - main drive idler (before #8334601)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

13

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex. (for Ref. 1)

1шт.

95-8

WASHER,1/2"

flat, and lockwasher (92-8) 1/2"

1шт.

14

F88247

PLATE - adjusting (#8334601 and after)

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

15

F14630

BRACKET - main drive idler (#8334601 and after)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

16

F86575

SHEAVE - idler

1шт.

17

F18163

AIR CLEANER

BEARING

1шт.

18

O3736CK

WASHER - idler shaft

2шт.

F19583

BUSHING - plastic (Not Shown)

1шт.

19

F11615

SHAFT - idler

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
