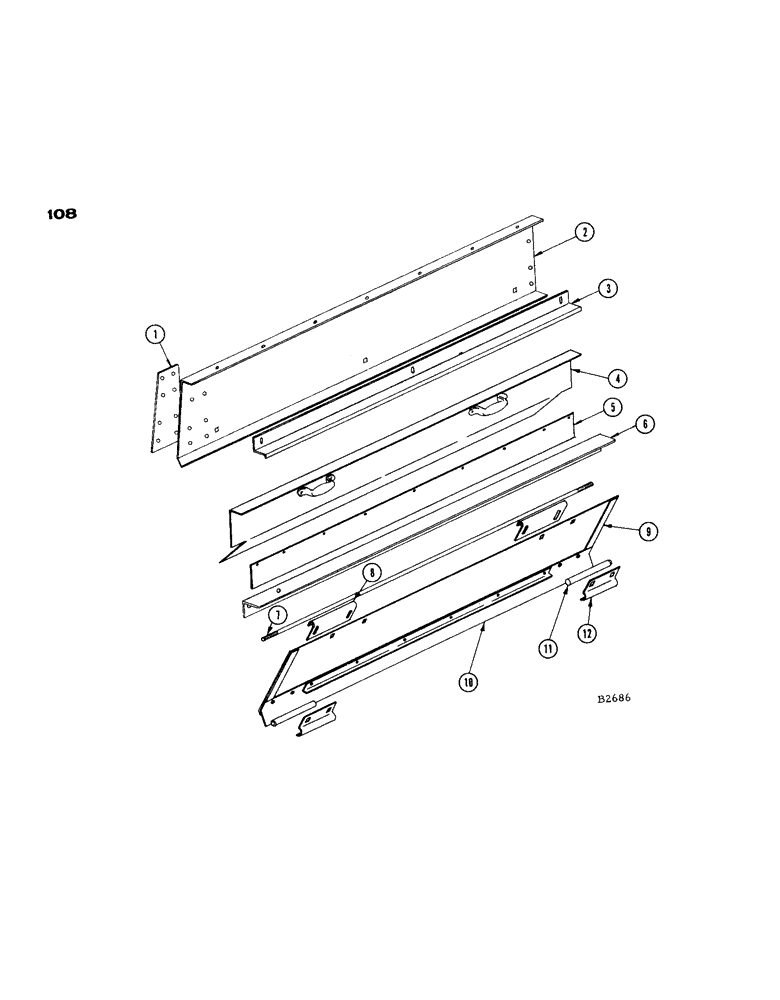

Запчасти Case IH 1660 (108) - CONVEYOR RAKE CONCAVE ACCESS SECTION (14) - MAIN GEARBOX & DRIVE

1

F13211

SCREW

GUSSET - front channel

1шт.

2

F13768

CHANNEL - cross, front

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

12шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

12шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

9шт.

195-18

WASHER,1/4"

- SAE std. flat 1/4"

9шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

9шт.

3

F13770

RETAINER - inspection door

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

3шт.

195-18

WASHER,1/4"

- SAE std. flat 1/4"

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

129-404

WING NUT,1/4"-20

- 1/4" N.C.

3шт.

4

F87624

SHEET - front cross

1шт.

228-3

HANDLE - door, #479 stanley

2шт.

49-35

RIVET - 3/16" x 5/16" W.B.

4шт.

5

F13762

WIPER - (rubber) feeder spout

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

11шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

195-18

WASHER,1/4"

- SAE std. flat 1/4"

11шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

11шт.

6

F13761

ANGLE - cross, front

1шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

1шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.

7

F13680

TIE ROD - front cylinder post

1шт.

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - #29E180 Esna

2шт.

8

F12569

CLAMP

3шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

6шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

6шт.

9

F87516

DOOR - boot, Includes: Ref. 10

1шт.

10

F13760

SEAL

1шт.

11

F11889

SHAFT - pivot

2шт.

12

F11890

CLAMP - pivot shaft

2шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

4шт.

25-104

NUT,1/4"-20, G5

4шт.
