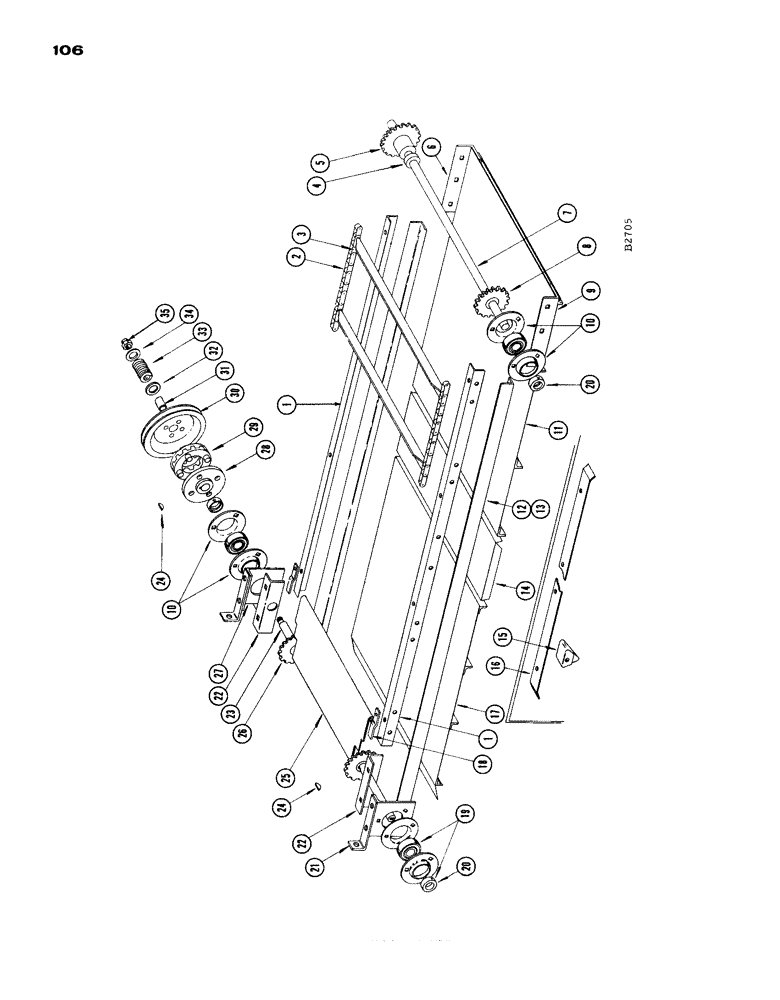

Запчасти Case IH 1660 (106) - CONVEYOR RAKE (14) - MAIN GEARBOX & DRIVE

1

F11855

SUPPORT - conveyor rake chain, R.H. and L.H.

2шт.

2

F87485

RAKE

- conveyor (Replaced by F88144 when stock depleted)

1шт.

3

F14540

SLAT - conveyor rake

17шт.

Required for Repairs for slats or attaching links

1шт.

F88151

LINK - attaching, L.H. (Not Shown)

17шт.

Required for Repairs for slats or attaching links

1шт.

F88150

LINK - attaching, R.H. (Not Shown)

17шт.

Required for Repairs for slats or attaching links

1шт.

F10673

LINK

- offset, #CA550 roller chain (Not Shown)

1шт.

F10674

LINK

- connecting, #CA550 roller chain (Replaced by F54319 when stock is exhausted) Not Shown

1шт.

F54319

LINK

- connecting, #CA550 roller chain (Replaces F10674 when stock is exhausted) Not Shown

1шт.

F10818

LINK

- roller, #CA550 roller chain (Not Shown)

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut (131-5)

34шт.

111-331

BOLT

- 3/8" x 3/4" rhd. sh. sq. nk. N.F., nut and l.w.

34шт.

F88144

RAKE

- conveyor (Replaces F87485)

1шт.

F14540

SLAT - conveyor rake

25шт.

F88151

LINK - attaching, L.H.

25шт.

F88150

LINK - attaching, R.H.

25шт.

F10673

LINK

- offset, #CA550 roller chain

1шт.

F10674

LINK

- connecting, #CA550 roller chain (Replaced by F54319 when stock is exhausted)

1шт.

F54319

LINK

- connecting, #CA550 roller chain (Replaces F10674 when stock is exhausted)

1шт.

F10818

LINK

- roller, #CA550 roller chain

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut (131-5)

50шт.

111-331

BOLT

- 3/8" x 3/4" rhd. sh. sq. nk. N.F., nut and l.w.

50шт.

4

F10357

COLLAR - for L.H. sprocket, F86031 (Before #8334601)

1шт.

5

F86031

SPROCKET - (7T) front, L.H. (Before #8334601)

1шт.

F88193

SPROCKET - (7T) front, L.H. (#8334601 and after)

1шт.

6

F11851

ANGLE - boot mounting, L.H.

1шт.

7

F13704

SHAFT - front conveyor rake (Before #8334601)

1шт.

F14592

SHAFT - front conveyor rake (#8334601 and after)

1шт.

O906B

WASHER

- (between L.H. brg. & Ref. 5) Before #8334601

2шт.

8

F86032

SPROCKET - (7T) front, R.H. (Before #8334601)

1шт.

F88193

SPROCKET - (7T) front, R.H. (#8334601 and after)

1шт.

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - 1/4" x 1-1/2" driv-loc type A-3

2шт.

9

F11850

ANGLE - boot mounting, R.H.

1шт.

10

B18282

FLANGE

- for 3074 CSA bearing

8шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

12шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

12шт.

11

F87449

FLOOR - conveyor, front

1шт.

12

NSS

NOT SOLD SEPARAT

ANGLE - conveyor rake, L.H.

1шт.

13

NSS

NOT SOLD SEPARAT

ANGLE - conveyor rake, R.H.

1шт.

14

F87487

FLOOR - access section

1шт.

15

F1368

DEFLECTOR - grain

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

16

F11856

STRIP

- wear, for F11855 support

2шт.

17

F87472

FLOOR - conveyor, rear

1шт.

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" N.C. mach.

6шт.

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- 1/4" x 3/4" N.C. mach.

8шт.

25-104

NUT,1/4"-20, G5

14шт.

18

F13699

CLIP - support

2шт.

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" N.C.. fl. hd. mach.

2шт.

25-104

NUT,1/4"-20, G5

2шт.

19

3074CSA

BALL BEARING

- front and rear rake shafts

4шт.

20

F62108

COLLAR

1шт.

21

F7811

LOCK STRAP - conveyor rake, tightener

2шт.

22

F10309

SHIELD - dust, rear rake shaft

2шт.

23

F13705

SHAFT - rear conveyor rake

1шт.

24

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

2шт.

25

F13706

COVER - rear conveyor shaft

1шт.

O9048HT

BUSHING - for F13706, Ref. 25

2шт.

26

F86033

SPROCKET - (7T) conveyor rake rear shaft

2шт.

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - 1/4" x 1-1/2" driv-loc type A-3

2шт.

27

F7812

BRACKET - tightener

2шт.

28

143CS

PLATE

- clutch (Exh. then use F89322), conveyor rake drive

1шт.

28

F89322

SCRAPER

PLATE - clutch (Replaces 143CS when exh.), conveyor rake drive

1шт.

29

T16665

RING - clutch

2шт.

30

F87484

SHEAVE and BEARING - conveyor rake

1шт.

31

F11042

BEARING

1шт.

32

O3885A

WASHER

- jump clutch spring, inner

1шт.

33

F14545

SPRING - jump clutch (Replaces O1090CH)

1шт.

34

A26376

WASHER

1шт.

35

131-7

LOCK NUT,7/16"-20

NUT - 3/4" - 16 N.F. Esna

1шт.

F13803

BELT

Drives, Tailings, Walker and Conveyor Rake

1шт.
