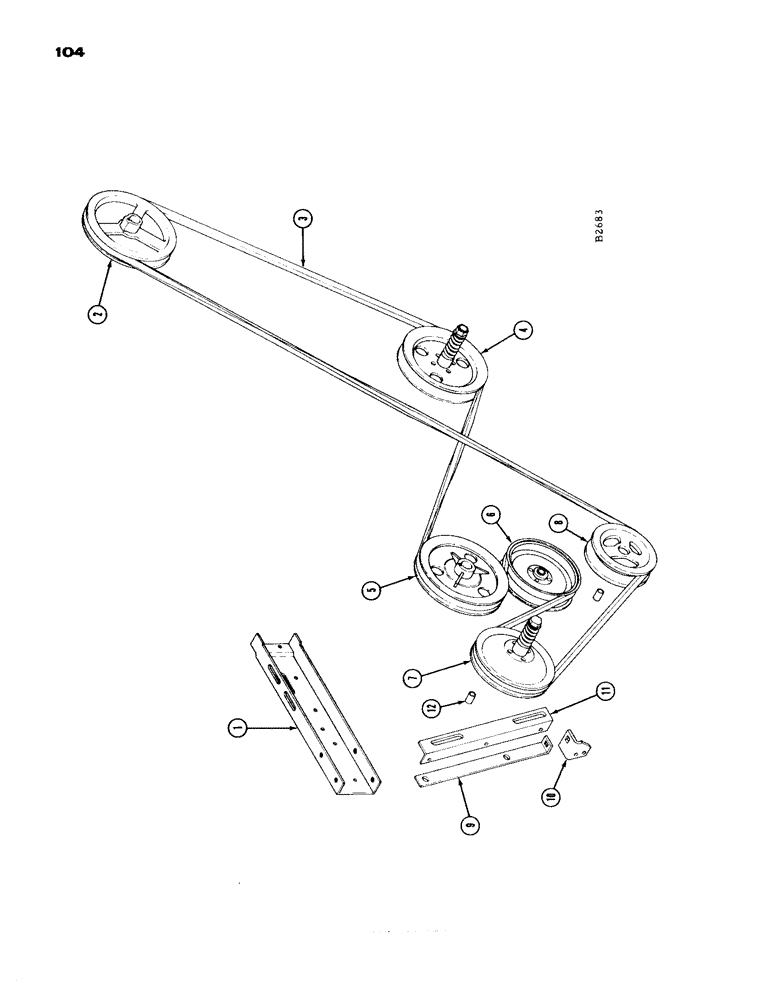

Запчасти Case IH 1660 (104) - TIGHTENER, CONVEYOR RAKE DRIVE, STRAWWALKER, TAILINGS AND SHOE DRIVE, AND DECALS (14) - MAIN GEARBOX & DRIVE

1

NSS

NOT SOLD SEPARAT

BRACKET - support, rear conveyor rake, L.H.

1шт.

2

F1981

SHEAVE - strawwalker drive

1шт.

3

F13803

BELT

Drives, Tailings, Walker and Conveyor Rake

1шт.

4

F87498

SHEAVE - tailings elevator drive

1шт.

5

F1984

SHEAVE - pitman, L.H.

1шт.

6

F80073

PULLEY ASSY.

SHEAVE - idler, upper

1шт.

14-1052

BOLT,Hex, 5/8" - 18 x 3-1/4"

- 5/8" x 3-1/4" N.F. hex.

1шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

1шт.

7

F87484

SHEAVE - conveyor rake

1шт.

F11042

BEARING

1шт.

8

F86211

SHEAVE - idler, lower

1шт.

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING

1шт.

O3338BF

SNAP RING

1шт.

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- 5/8" x 3" N.F. hex., for F86211 sheave

1шт.

195-41

WASHER,5/8"

- SAE std. flat 5/8"

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14-1110

NUT - 5/8" N.F. hex.

1шт.

9

F13772

STRAP - tightener

1шт.

111-358

BOLT - 3/8" x 4-1/2" rhd. sq. nk.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

10

F13775

BRACKET - anchor

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

11

F13773

SUPPORT - idler

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

3шт.

92-5

LOCK WASHER,5/16"

3шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

12

F13774

SPACER - for idler sheaves, Ref. 6 and 8

2шт.

B17135

SET OF DECALS - for 1660 Self Propelled Combine, before no. 8368001

1шт.

321-17

DECAL

PATENT - platform cross angle, before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

321-349

DECAL

"GREASE SPLINE" - (L.H. side sheet), before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

321-462

DECAL

"RICE SPECIAL", before no. 8368001

1шт.

321-583

DECAL

"SPECIAL", before no. 8368001

1шт.

321-653

DECAL

NAME and ADDRESS - (rear of seat support), before no. 8368001

1шт.

321-662

DECAL

SAFETY - (platform in front of ladder), before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

321-712

DECAL

FAN BELT WARNING - (R.H. side sheet near fan pulley), before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

321-741

DECAL

"FOLD BACK", before no. 8368001

1шт.

321-789

DECAL

"OIL RESERVOIR LEVEL", before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

321-808

DECAL

EAGLE - (both sides of rear hook), before no. 8368001

2шт.

321-925

DECAL

"SERVICE CHECK LIST" - (L.H. side of seat support), before no. 8368001

1шт.

321-944

"1660", before no. 8368001

1шт.

321-988

"CASE" - (front of grain bin), before no. 8368001

1шт.

321-989

"CASE" - (rear of hood), before no. 8368001

1шт.

321-1268

POWER SHAFT, before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

321-1063

DECAL

INSTRUCTIONS - air conditioning, before no. 8368001

1шт.

321-1064

DECAL

"TERMINAL BOX" - cab w/air conditioning, before no. 8368001

1шт.

321-1118

"WALKER DRIVE BELT", before no. 8368001

1шт.

Also included in F98013 set of decals.

1шт.

F98013

SET OF DECALS - for 1660 Self-Propelled Combine, no. 8368001 and after

1шт.

321-1465

"RICE SPECIAL", no. 8368001 and after

1шт.

321-1464

"SPECIAL", no. 8368001 and after

1шт.

321-1629

"SERVICE CHECK LIST" - (L.H. side of sheet support), no. 8368001 and after

1шт.

321-1462

"1660", no. 8368001 and after

2шт.

321-1432

"CASE", no. 8368001 and after

2шт.
