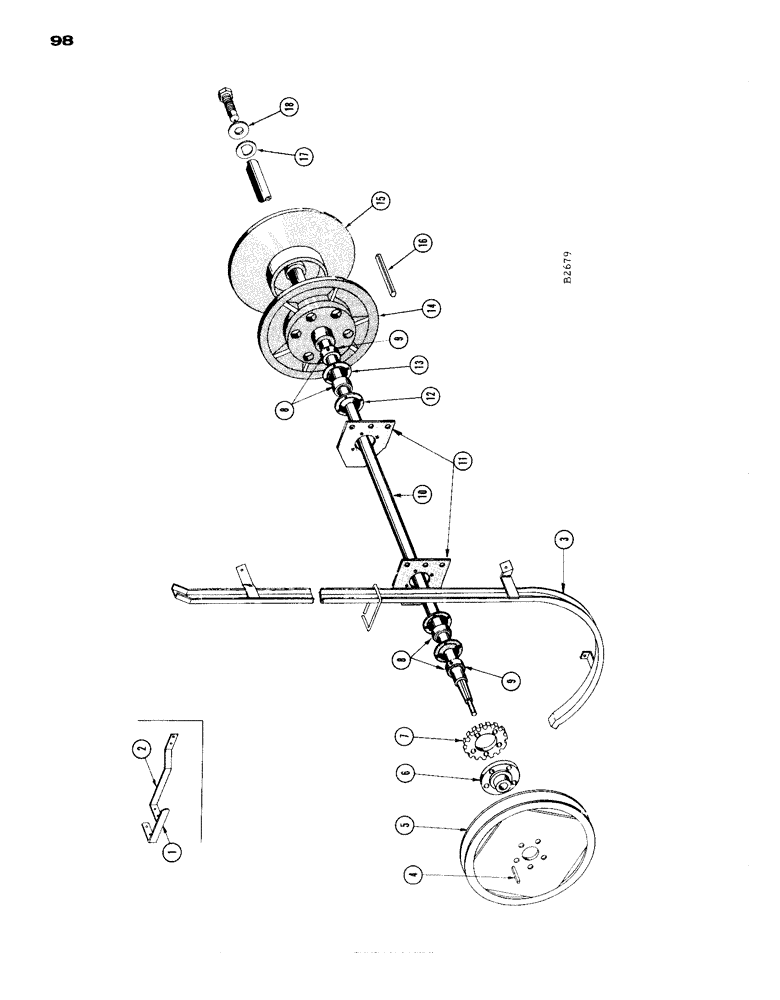

Запчасти Case IH 1660 (098) - MAIN COMBINE DRIVE SHAFT, V.S. CYLINDER DRIVE (14) - MAIN GEARBOX & DRIVE

1

F14485

GUIDE - main drive belt (outer)

1шт.

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

2

F14483

GUIDE - main drive belt (inner)

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

3

F87639

GUIDE - main drive belt

1шт.

4

O909CK

KEY - 5/16" sq. x 1-5/8" (for F1967 hub)

1шт.

5

F80956

SHEAVE - main combine drive

1шт.

F13799

BELT

"V" BELT - main combine drive (Not Shown) for Ref. 5

1шт.

F14857

V-BELT

Main Combine Drive, Pre-Stretched

1шт.

6

F1967

HUB - main drive sheave

1шт.

131-17

LOCK NUT

NUT - 7/8" - 14 N.F. Esna

1шт.

195-49

WASHER

- 7/8" SAE std. flat

1шт.

7

F13399

SPROCKET - (21T) beater drive

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

0 3/8" x 1-3/4" N.F. hex.

5шт.

92-6

LOCK WASHER,3/8"

5шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

5шт.

8

F84032

BEARING

2шт.

9

F62107

COLLAR

1шт.

10

F13689

SHAFT - main drive (V.S. cylinder)

1шт.

11

F8942

BRACKET - bearing, R.H. and L.H.

2шт.

12

F12599

FLANGE

- inner

2шт.

13

F12600

FLANGE - outer

2шт.

18-820

PLOW BOLT

BOLT - 1/2" x 1-1/4" #3 hd. N.C, plow

4шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

4шт.

92-8

LOCK WASHER,1/2"

8шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

8шт.

14

F1920

SHEAVE HALF - inner stationary, cylinder drive

1шт.

15

F1925

SHEAVE HALF - outer movable, cylinder drive

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" grease

1шт.

16

F12613

KEY - for Ref. 14

1шт.

17

F12636

WASHER

- "D"

1шт.

18

F12637

WASHER

1шт.
