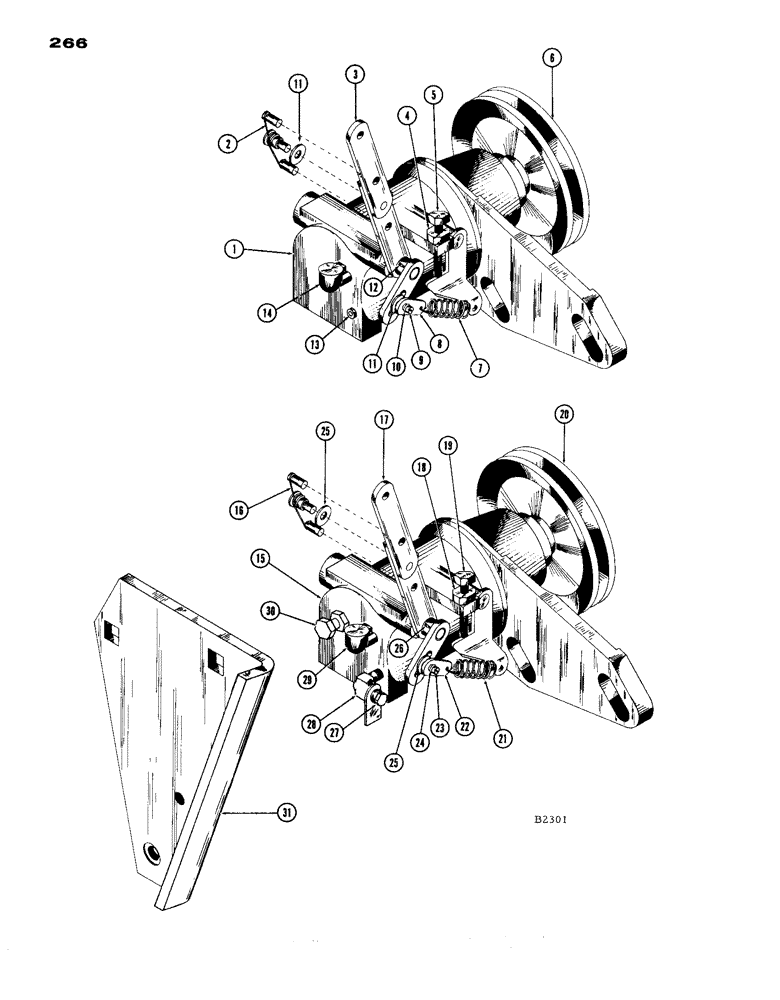

Запчасти Case IH 1660 (266) - GOVERNOR (10) - ENGINE

1

F87560

GOVERNOR and PULLEY - (Replaced by F88206 when stock is exhausted)

1шт.

2

F19653

SPRING - return

1шт.

3

F86933

LEVER

THROTTLE LEVER

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

Adjusting level (For ref. 5) Jam, 1/4"-28, G5

1шт.

5

F19650

SCREW - adjusting

1шт.

6

F19654

PULLEY

1шт.

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW - 5/16" 18 N.C. 2 thd. set (pulley)

1шт.

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , Pulley 5/32" x 1 1/4", Slotted

1шт.

7

F13339

SPRING

1шт.

8

F19652

LINK - throttle lever spring

1шт.

9

F19651

PIN - selector

1шт.

10

A7111P

RING - retaining (Truarc)

1шт.

11

195-518

WASHER,1/4", SAE

3шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - (for Ref. 9)

3шт.

12

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

13

F21182

OILER - oil level

1шт.

14

F21181

NECK FILLER

FILLER - oil

1шт.

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" rhd. sq. nk. and nut (25-116)

2шт.

195-25

WASHER,3/8"

- SAE std., and lockwasher (92-6) 3/8"

2шт.

15

F88206

GOVERNOR

- with pulley (Replaces F87560) (Exh. then use F98037)

1шт.

F98037

GOVERNOR - with pulley (Replaces F88206 when stocks exh.)

1шт.

16

F19653

SPRING - return

1шт.

17

F86933

LEVER

THROTTLE LEVER

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

Adjusting level (For ref. 19) Jam, 1/4"-28, G5

1шт.

19

F19650

SCREW - adjusting

1шт.

20

F19654

PULLEY

1шт.

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

(Pulley) Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , Pulley 5/32" x 1 1/4", Slotted

1шт.

21

F13339

SPRING

1шт.

22

F19652

LINK - throttle lever spring

1шт.

23

F19651

PIN - selector

1шт.

24

A7111P

RING - retaining (Truarc)

1шт.

25

195-518

WASHER,1/4", SAE

3шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - (for Ref. 23)

3шт.

26

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

27

F14821

OILER - oil level, with "O" Ring (Before #8368001)

1шт.

221-1661

PLUG

- oil fill (#8368001 and after)

1шт.

28

F14822

ELBOW - oiler (oil level)

1шт.

29

F88364

FILLER - oil, with gasket (Before #8368001)

1шт.

221-1661

PLUG

- oil (#8368001 and after)

1шт.

30

F82948

BUMPER SCREW ASSEMBLY

1шт.

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" rhd. sq. nk.; and nut (26-116)

2шт.

195-25

WASHER,3/8"

- flat; and lockwasher (92-6) 3/8"

2шт.

31

F13850

PLATE - governor

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- 3/8" x 4-1/2" N.C. hex.; and lockwasher (92-6)

1шт.

F13894

BELT

"V" BELT - governor drive (Not Shown)

1шт.

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, #5-1

1шт.
