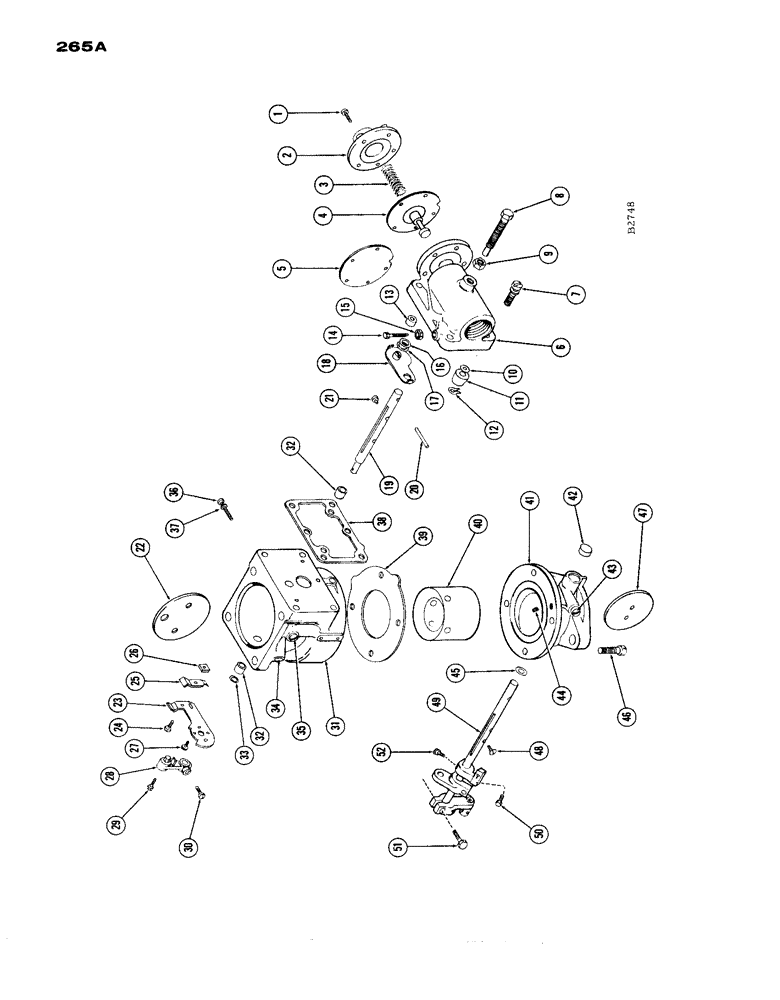

Запчасти Case IH 1660 (265A) - CARBURETOR, L. P. (10) - ENGINE

F87579

CARBURETOR - L. P. (Am. Bosch #CBY 175A 5573A)

1шт.

1

B50030

SCREW - economizer cover

2шт.

Part of repair kit P/N KT46127

1шт.

2

A41624

LAMP

COVER - economizer

1шт.

3

B50146

SPRING - economizer

1шт.

Part of repair kit P/N KT46127

1шт.

4

B50077

DIAPHRAGM ASSEMBLY - economizer

1шт.

5

B50147

DIAPHRAGM

1шт.

Part of repair kit P/N KT46127

1шт.

6

A41629

HOUSING - gas inlet

1шт.

7

B50043

SCREW - gas inlet housing

4шт.

Part of repair kit P/N KT46127

1шт.

8

A41635

SCREW - fuel adjusting (including locknut)

1шт.

9

86585245

SPECIAL NUT,JAM, 5/8" - 18

LOCKNUT - fuel adjusting screw

1шт.

10

B50075

WASHER - screw valve spring

1шт.

Part of repair kit P/N KT46127

1шт.

11

A41644

SPARE PART

VALVE - fuel adjusting screw

1шт.

12

B50073

X

SNAP RING

1шт.

Part of repair kit P/N KT46127

1шт.

13

A41637

SCREW - fuel orifice

1шт.

14

A41634

SCREW - starting adjusting (including locknut)

1шт.

Part of repair kit P/N KT46127

1шт.

15

B50148

LOCKNUT - adjusting screw

1шт.

Part of repair kit P/N KT46127

1шт.

16

B41642

WASHER - valve lever

1шт.

Part of repair kit P/N KT46127

1шт.

17

A41643

WASHER - valve lever spring

1шт.

Part of repair kit P/N KT46127

1шт.

18

A41631

LEVER

- valve

1шт.

Part of repair kit P/N KT46127

1шт.

19

A41638

SHAFT - choke (including pin)

1шт.

20

138-47

LOCK PIN,3/32" x 1 1/4", Slotted

Pin, , choke shaft 3/32" x 1 1/4", Slotted

1шт.

21

B50143

SCREW - choke shaft

2шт.

Part of repair kit P/N KT46127

1шт.

22

A41626

DISC - choke

1шт.

23

B50139

SUPPORT - choke tube (including Ref. 24, 25 and 26)

1шт.

24

A40044

PIPE

SCREW - clamp

1шт.

Part of repair kit P/N KT46127

1шт.

25

B50204

CLAMP - choke support

1шт.

Part of repair kit P/N KT46127

1шт.

26

A40046

NUT - clamp screw

1шт.

Part of repair kit P/N KT46127

1шт.

27

A40342

PROTECTOR

SCREW - choke support

2шт.

Part of repair kit P/N KT46127

1шт.

28

A40343

LEVER - choke swivel

1шт.

29

B50033

SCREW - choke level swivel

1шт.

Part of repair kit P/N KT46127

1шт.

30

F20881

SCREW - set, choke swivel

1шт.

Part of repair kit P/N KT46127

1шт.

31

A41630

HOUSING - airhorn (including bushings)

1шт.

32

A41623

BUSHING - choke shaft

2шт.

Part of repair kit P/N KT46127

1шт.

33

B50145

SEAL - dust (choke shaft)

1шт.

Part of repair kit P/N KT46127

1шт.

34

A9731

SCREW - balance tube orifice

1шт.

35

B50058

PLUG - 1/8" pipe

1шт.

36

169-123

SCREW - venturi (#12 x 1-1/4" fil. head slotted)

1шт.

Part of repair kit P/N KT46127

1шт.

37

A41641

SCREW

LOCKWASHER - venturi screw

1шт.

Part of repair kit P/N KT46127

1шт.

38

A41628

GASKET - gas inlet housing

1шт.

Part of repair kit P/N KT46127

1шт.

39

A41627

GASKET - air, Serial Range: horn-tube

1шт.

Part of repair kit P/N KT46127

1шт.

40

A41645

VENTURI ASSEMBLY

1шт.

41

A41640

TUBE - throttle, with bushings

1шт.

B50202

BUSHING - throttle shaft (Not Shown)

2шт.

42

A40557

PLUG - welch

1шт.

43

B50058

PLUG - 1/8" pipe

1шт.

44

A41636

PLUG - screw, orifice

1шт.

45

B50145

SEAL - dust (throttle shaft)

1шт.

Part of repair kit P/N KT46127

1шт.

46

A40560

SCREW - tube to air horn

4шт.

Part of repair kit P/N KT46127

1шт.

47

A41625

DISC - throttle

1шт.

48

B50143

SCREW - throttle shaft

2шт.

Part of repair kit P/N KT46127

1шт.

49

A41639

SHAFT - throttle (including lever and stop)

1шт.

50

A40340

SCREW - throttle stop adjusting

1шт.

Part of repair kit P/N KT46127

1шт.

51

A40925

SCREW - throttle lever

1шт.

Part of repair kit P/N KT46127

1шт.

52

F20881

SCREW - set, throttle stop

1шт.

Part of repair kit P/N KT46127

1шт.

KT46127

REPAIR KIT - Includes: Refs. 1, 3, 5, 7, 10, 12, 14 - 18, 21, 24 - 27, 29, 30, 32, 33, 36 - 39, 45, 46, 48 and 50 - 52

1шт.
