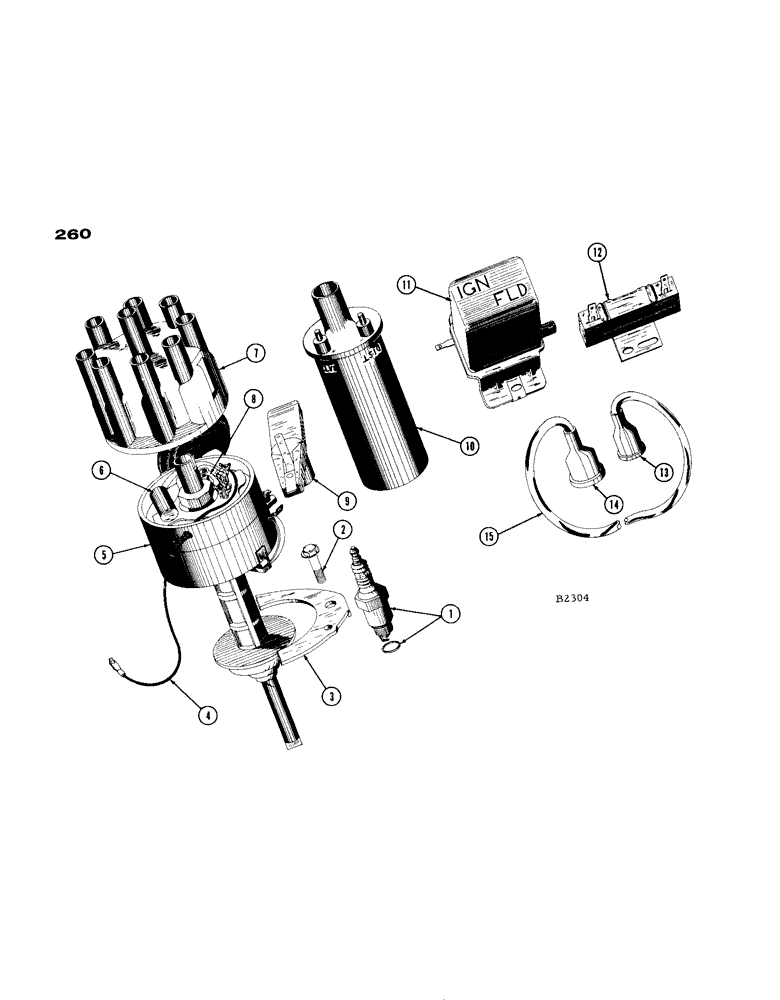

Запчасти Case IH 1660 (260) - IGNITION (10) - ENGINE

1

N12YC

SPARK PLUG

- with gasket

8шт.

2

F87909

SCREW - clamp, with washer

1шт.

3

F12901

CLAMP - ignition distributor

1шт.

4

F86922

CABLE - ignition coil, primary

1шт.

5

F87908

DISTRIBUTOR - ignition (less cap and rotor)

1шт.

F12900

GASKET - ignition distributor (Not Shown)

1шт.

6

F20511

CONDENSER

1шт.

7

F86900

CAP - distributor

1шт.

F86910

CABLE - spark plug ignition (Consists of 1 cable 44-1/2", 1 terminal, 1 nipple and 1 grommet) Not Shown

8шт.

8

F20510

BREAKER

CONTACT - distributor

1шт.

9

F8690

ROTOR - distributor

1шт.

10

F86920

COIL - ignition

1шт.

F14162

SUPPORT - ignition coil (Not Shown)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

2шт.

11

F12687

REGULATOR

- voltage (Chrysler #2098300)

1шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

and nut (131-1) Hex, 1/4"-28 x 1 1/4", G5

2шт.

195-18

WASHER,1/4"

- plain, and nut (25-114) 1/4"

4шт.

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10 rhd. N.F. machine

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

O1120CS

CUSHION - voltage regulator (Not Shown) Before #8334601

2шт.

F22434

GROMMET - rubber (Not Shown) #8334601 and after

2шт.

12

F86921

RESISTOR - coil, package

1шт.

13

F19785

NIPPLE, LUBE

NIPPLE - distributor

9шт.

14

F12903

NIPPLE, LUBE

NIPPLE - coil

1шт.

15

F87910

CABLE - ignition coil, secondary

1шт.

F19784

TERMINAL - secondary cable (Disbributor End) (Not Shown)

1шт.

F14165

COVER - vacuum tube advance (Not Shown)

1шт.

F88070

ALTERNATOR

- (Chrysler 2444599)

1шт.
