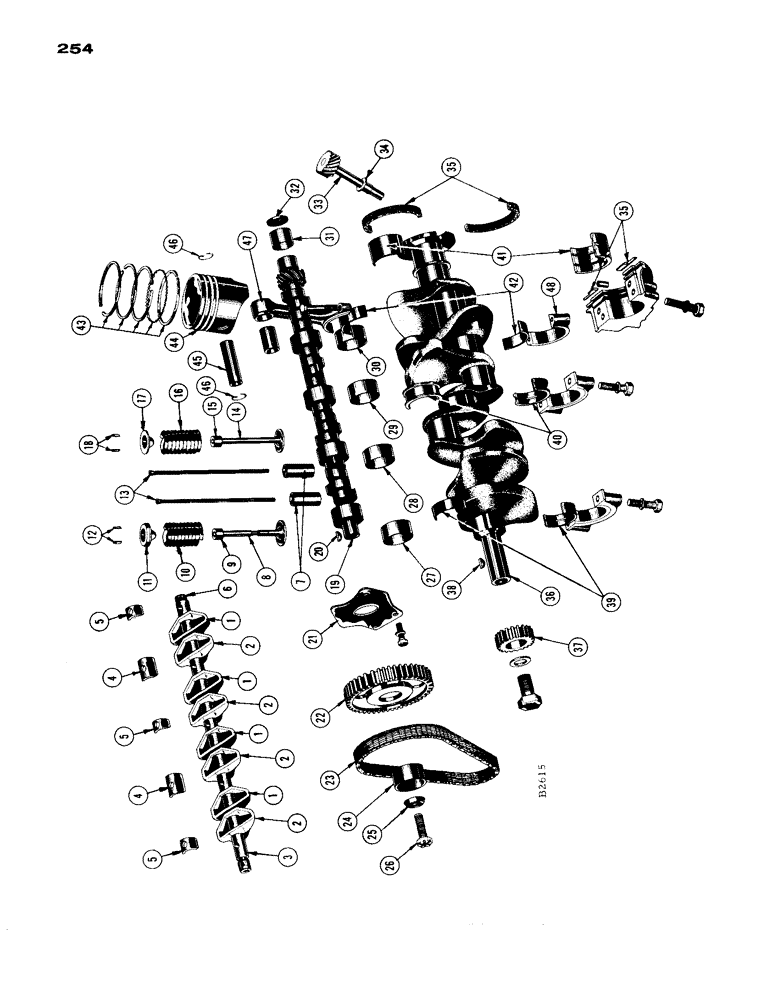

Запчасти Case IH 1660 (254) - ROCKER ASSEMBLIES AND VALVES, CAMSHAFT, CRANKSHAFT, PISTONS, RINGS AND CONNECTOR RODS (10) - ENGINE

1

F14237

ROCKER - valve, right

8шт.

2

F14238

ROCKER - valve, left

8шт.

3

F87904

SHAFT - rocker

2шт.

4

F14447

RETAINER - intermediate, rocker shaft

4шт.

5

F14446

RETAINER - ends and center, rocker shaft

6шт.

6

F19765

PLUG - shaft

4шт.

7

F87906

VALVE - tappet (Before #8334601)

16шт.

F88376

VALVE - tappet (#8334601 and after)

16шт.

8

F14442

VALVE - exhaust, standard

8шт.

9

F12894

SHIELD - valve stem, exhaust

8шт.

10

F14443

SPRING - valve- exhaust (Gas)

8шт.

F12890

SPRING - valve, exhaust (L.P.) see Ref. 16

8шт.

11

F86924

RETAINER and ROTATOR - valve spring, exhaust (Gas)

8шт.

F14444

RETAINER - valve spring, exhaust (L.P.) See Ref. 17

8шт.

12

F14445

LOCK - retainer, exhaust valve (Gas)

16шт.

F14907

LOCK

- retainer, exhaust valve (L.P.)

16шт.

13

F87905

ROD - push (Before #8334601)

16шт.

F88375

ROD - push (#8334601 and after)

16шт.

14

F14441

VALVE - intake, standard

8шт.

15

F12934

SHIELD - valve stem, intake

8шт.

16

F12890

SPRING - valve, intake

8шт.

17

F14444

RETAINER - valve spring, intake

8шт.

18

F12893

LOCK - retainer, intake valve

16шт.

F14450

SPACER - valve spring (Gas)

16шт.

F14902

SPACER - valve spring (L.P.)

16шт.

F88062

GASKET

SET - valve grind

1шт.

19

F14233

CAMSHAFT - (Replaced by F14849 when stock is exhausted)

1шт.

F14849

CUP

CAMSHAFT - (Replaces F14233 when stock is exhausted)

1шт.

20

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Sprocket, camshaft #9, 3/16" x 3/4"

1шт.

21

F14234

PLATE - thrust, camshaft sprocket (Replaced by F12883 when stock is exhausted)

1шт.

F12883

PLATE - thrust, camshaft sprocket (Replaces F14234)

1шт.

22

F1997

SPROCKET - camshaft

1шт.

23

F86887

CHAIN - timing

1шт.

24

F12879

ECCENTRIC - camshaft

1шт.

25

F12882

WASHER - retaining screw, camshaft sprocket

1шт.

26

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

27

F13378

CAMSHAFT BEARING

BEARING - camshaft, #1 (standard)

1шт.

28

F13379

SCREW

BEARING - camshaft, #2 (standard)

1шт.

29

F13380

SCREW

BEARING - camshaft, #3 (standard)

1шт.

30

F13381

SCREW

BEARING - camshaft, #4 (standard)

1шт.

31

F13382

BEARING - camshaft, #5 (standard)

1шт.

32

41-30

PLUG

- rear bearing (Replaces F13383)

1шт.

33

F86898

SHAFT - drive, oil pump and distributor

1шт.

34

F88063

BUSHING - drive shaft

1шт.

35

F86957

OIL SEAL

PACKAGE - rear crankshaft bearing

1шт.

36

F87903

CRANKSHAFT

1шт.

F12874

SLINGER - oil, crankshaft

1шт.

37

F14232

SPROCKET - crankshaft

1шт.

38

126-41

KEY - crankshaft

1шт.

39

F87916

BEARING PACKAGE - (#1-2-4) standard

3шт.

F87917

BEARING PACKAGE - (#1-2-4) .001 undersize

3шт.

F87918

BEARING PACKAGE - (#1-2-4) .002 undersize

3шт.

F87919

BEARING PACKAGE - (#1-2-4) .003 undersize

3шт.

F87920

BEARING PACKAGE - (#1-2-4) .010 undersize

3шт.

F87921

BEARING PACKAGE - (#1-2-4) .012 undersize

3шт.

40

F87922

BEARING PACKAGE - (#3) standard

1шт.

F87923

BEARING PACKAGE - (#3) .001 undersize

1шт.

F87924

BEARING PACKAGE - (#3) .002 undersize

1шт.

F87925

BEARING PACKAGE - (#3) .003 undersize

1шт.

F87926

BEARING PACKAGE - (#3) .010 undersize

1шт.

F87927

BEARING PACKAGE - (#3) .012 undersize

1шт.

41

F87170

BEARING PACKAGE - (#5) Standard

1шт.

F87171

BEARING PACKAGE _ (#5) .001 undersize

1шт.

F87172

BEARING PACKAGE - (#5) .002 undersize

1шт.

F87173

BEARING PACKAGE - (#5) .003 undersize

1шт.

F87174

BEARING PACKAGE - (#5) .010 undersize

1шт.

F87175

BEARING PACKAGE - (#5) .012 undersize

1шт.

42

F86968

BEARING PACKAGE - connector rod, standard

8шт.

F86963

BEARING PACKAGE - connector rod (.001 undersize)

8шт.

F86964

BEARING PACKAGE - connector rod (.002 undersize)

8шт.

F86965

BEARING PACKAGE - connector rod (.003 undersize)

8шт.

F86966

BEARING PACKAGE - connector rod (.010 undersize)

8шт.

F86967

BEARING PACKAGE - connector rod (.012 undersize)

8шт.

43

F14440

RING

SET - piston (standard to .009 oversize)

1шт.

F88060

RING SET - piston (.020 oversize)

1шт.

F88061

RING SET - piston (.040 oversize)

1шт.

44

F87902

PISTON and PIN - standard (Gas)

8шт.

F88419

PISTON and PIN - standard (L.P.)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

F14236

PIN - piston

1шт.

F12872

RING - lock, pin

2шт.

F87899

PISTON and PIN - .005 oversize (Gas)

8шт.

F88416

PISTON and PIN - .005 oversize (L.P.)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

F14236

PIN - piston

1шт.

F12872

RING - lock, pin

2шт.

F87900

PISTON and PIN - .020 oversizxe (Gas)

8шт.

F88417

PISTON and PIN - .020 oversize (L.P.)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

F14236

PIN - piston

1шт.

F12872

RING - lock, pin

2шт.

F87901

PISTON and PIN - .040 oversize (Gas)

8шт.

F88418

PISTON and PIN - .040 oversize (L.P.)

8шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

45

F14236

PIN - piston

1шт.

46

F12872

RING - lock pin

2шт.

47

F86890

ROD PACKAGE - connector

8шт.

48

NSS

NOT SOLD SEPARAT

CAP - bearing, connector rod

1шт.
