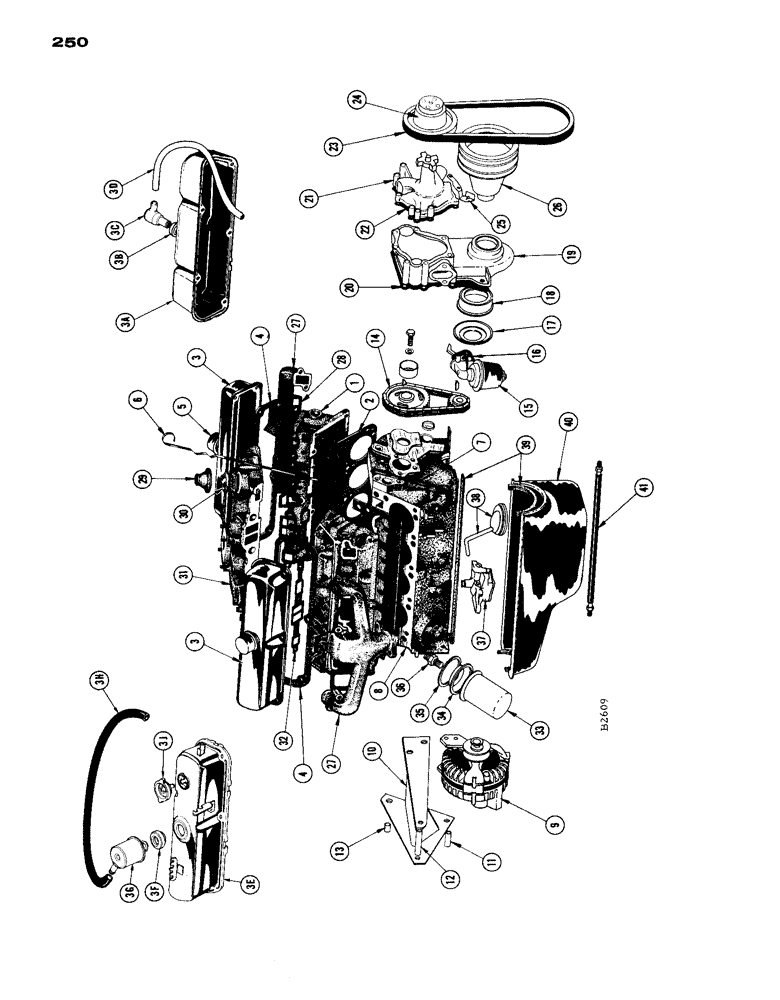

Запчасти Case IH 1660 (250) - CYLINDER HEAD, CYLINDER BLOCK (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
F88069
HEAD - cylinder (Gas)
2шт.
F88421
HEAD - cylinder (L. P.)
2шт.
F14247
BOLT - short, cylinder head (Not Shown)
10шт.
F14248
BOLT - medium, cylinder head (Not Shown)
8шт.
F14249
BOLT - long, cylinder head (Not Shown)
2шт.
2
F14246
GASKET - cylinder head
2шт.
3
F87914
COVER - cylinder head (L.P.) also Gas Before #8368001)
2шт.
3a
F30565
COVER - L.H. Cylinder head (Gas) (#8368001 and after)
1шт.
3b
F30569
GROMMET - vent valve (Gas) (#8368001 and after)
1шт.
3c
F30568
VALVE - vent (Gas) (#8368001 and after)
1шт.
3d
F30561
HOSE - vent valve to carb. (Gas) (#8368001 and after)
1шт.
3e
F30566
COVER - R.H. cylinder head (Gas) (#8368001 and after)
1шт.
3f
F30567
GROMMET - Breather (Gas) (#8368001 and after)
1шт.
3g
F30560
BREATHER - (Gas) (#8368001 and after)
1шт.
3h
F30559
HOSE
- Intake (Gas) (#8368001 and after)
1шт.
3j
F30570
CAP - oil filler (Gas) (#8368001 and after)
1шт.
114-122
BOLT,Hex, 5/16" - 24 x 2", Gr 5
10шт.
195-21
WASHER,5/16"
- flat 5/16"
10шт.
4
F14250
GASKET - cover, cylinder head
2шт.
5
F21213
BREATHER CAP - (L.P.) also Gas Before #8368001
2шт.
6
F12662
DIPSTICK - oil level indicator (Before #8368001)
1шт.
6
F23274
DIPSTICK - oil level indicator (#8368001 and after)
1шт.
7
F19762
TUBE - dipstick (Before #8368001)
1шт.
7
F23275
TUBE - dipstick (#8368001 and after)
1шт.
F88423
CYLINDER BLOCK - with pistons and rings (L.P.)
1шт.
8
F88283
ENGINE - short
1шт.
BLOCK - cylinder (Includes plugs, dowels, with oil pump and distributor drive shaft bushing)
1шт.
CRANKSHAFT - (Includes clutch shaft pilot bushing)
1шт.
BEARING SETS - main (#1-2-3-4-5 upper and lower halves)
5шт.
CAPS and SCREWS - main bearing
5шт.
SET OF OIL SEALS - (#5 main bearing)
1шт.
PISTONS W/ PINS - (Includes inserts and retaining rings)
8шт.
CONNECTOR RODS - (Includes caps, nuts screws and bushings)
8шт.
RING SETS - (see F12886)
8шт.
BEARING - camshaft (#1-2-3-4-5)
5шт.
9
F88070
ALTERNATOR
- with pulley
1шт.
F30496
STRAP - adjusting, alternator (Replaces F12667 when exh.)
1шт.
F12667
STRAP - adjusting, alternator (Exh, then use F30496)
1шт.
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
195-21
WASHER,5/16"
- SAE std. flat 5/16"
1шт.
92-5
LOCK WASHER,5/16"
1шт.
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
- 3/8" x 1" N.F. hex.
1шт.
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
1шт.
10
F87835
BRACKET - alternator
1шт.
11
F14453
SPACER - alternator bracket, lower
1шт.
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
92-6
LOCK WASHER,3/8"
1шт.
12
F14163
SPACER - for alternator and bracket
1шт.
14-668
BOLT - 3/8" x 4-1/4" N.F. hex. Hex, 3/8"-24 x 4 1/4", G5
1шт.
230-4616
LOCK NUT,3/8"-24, GA
NUT - 3/8" gripco N.F. hex.
1шт.
13
H1521S
BUSHING
SPACER - alternator bracket, upper
1шт.
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
92-6
LOCK WASHER,3/8"
1шт.
14
F86887
CHAIN - timing
1шт.
15
F86745
PUMP - fuel (Gas)
1шт.
16
F14240
GASKET - fuel pump
1шт.
13-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
- 3/8" x 1-3/8" N.C. hex., and lockwasher (92-6)
2шт.
17
F12874
SLINGER - oil
1шт.
18
F87915
OIL SEAL ASSEMBLY - chain case cover
1шт.
19
F86923
COVER - chain case
1шт.
20
F12885
GASKET - cover, chain case
1шт.
21
F86912
PUMP - water
1шт.
22
F12904
GASKET - water pump
1шт.
23
F12793
V-BELT
"V" BELT - fan drive
1шт.
24
F1936
PULLEY - fan
1шт.
25
F86888
INDICATOR - timing
1шт.
26
F88702
PULLEY - fan drive (Replaces F1985) See page 193
1шт.
F18610
WASHER - for F88702
1шт.
14-1224
BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5
- 3/4" x 1-1/2" N.F. hex., for F88702
1шт.
27
F1999
MANIFOLD - exhaust
2шт.
28
F14241
GASKET - exhaust manifold
2шт.
F14243
STUD - exhaust manifold (Not Shown)
4шт.
F14245
X
NUT - exhaust manifold (Not Shown)
4шт.
F14244
SCREW - exhaust manifold (Not Shown)
4шт.
F19793
WASHER - exhaust manifold (Not Shown)
8шт.
29
F1998
CYLINDER - water outlet
1шт.
113-311
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
2шт.
30
F86914
THERMOSTAT - 180deg.
1шт.
31
F87913
MANIFOLD - intake
1шт.
32
F88064
GASKET
SET - intake manifold (Gas)
1шт.
F88420
GASKET SET - intake manifold (L.P.)
1шт.
F12914
SEALER - gasket, intake manifold (Not Shown)
1шт.
33
A37189
FILTER, ELEMENT
FILTER - oil (throw-away type)
1шт.
34
F12678
PLATE - oil filter adapter
1шт.
35
F12680
GASKET
1шт.
36
F12677
ADAPTER - oil filter to cylinder block
1шт.
37
F87907
PUMP - oil
1шт.
F14235
SPRING - relief valve, oil pressure (Not Shown)
1шт.
F14449
GASKET - pump cover (Not Shown)
1шт.
38
F86897
PIPE and STRAINER - suction
1шт.
39
F87065
GASKET
KIT - oil pan
1шт.
40
F86895
OIL PAN - front drain
1шт.
F83016
SCREW - oil pan attaching, with washer (not shown)
18шт.
F14448
GASKET - drain plug (Not Shown)
1шт.
41
F13895
HOSE - oil drain
1шт.
221-525
CAP,1/2" NPT
- pipe 1/2" NPT
1шт.
F88066
GASKET
SET - engine gasket kit
1шт.
F14246
GASKET - cylinder head, engine gasket kit
2шт.
F14250
GASKET - head cover, engine gasket kit
2шт.
F12885
GASKET - chain case cover, engine gasket kit
1шт.
F12911
GASKET - water outlet cylinder, engine gasket kit
1шт.
F12904
GASKET - water pump body, engine gasket kit
1шт.
F14240
GASKET - fuel pump flange, engine gasket kit
1шт.
F12900
GASKET - ignition distributor, engine gasket kit
1шт.
F87065
GASKET
SET - oil pan, engine gasket kit
1шт.
F88064
GASKET
SET - intake manifold (Gas), engine gasket kit
1шт.
F86957
OIL SEAL
ASSEMBLY - crankshaft bearing, engine gasket kit
1шт.
F87915
OIL SEAL ASSEMBLY - chain case cover, engine gasket kit
1шт.
F12934
OIL SHIELD - valve stem. engine gasket kit
16шт.
F88420
GASKET SET - intake manifold (L.P.) order separately, engine gasket kit
1шт.
F88062
GASKET
KIT - gasket, valve grind gasket kit
1шт.
F14246
GASKET - cylinder head, valve grind gasket kit
2шт.
F14250
GASKET - head cover, valve grind gasket kit
2шт.
F88064
GASKET
SET - intake manifold (Gas), valve grind gasket kit
1шт.
F12934
OIL SHIELD - valve stem, valve grind gasket kit
16шт.
F88420
GASKET SET - intake manifold (L.P.) order separately, valve grind gasket kit
1шт.
Выбрано товаров: 116
