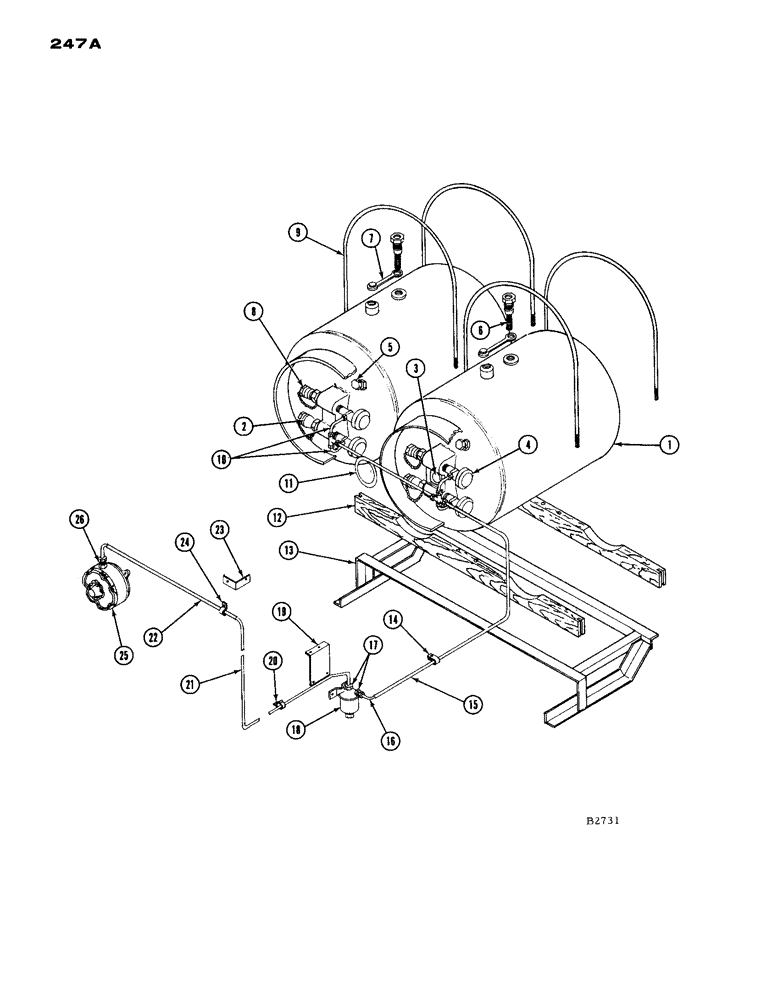

Запчасти Case IH 1660 (247A) - FUEL TANK , L. P. (10) - ENGINE

1

F77873

TANK - fuel

2шт.

2

A29942

VALVE - liquid filter

1шт.

A40631

CAP and CHAIN

1шт.

3

A20423

GAUGE - visible

1шт.

4

4003AA

X

VALVE - vapor and liquid outlet

2шт.

5

A29941

GAUGE - fixed fuel level

1шт.

6

A20696

SEAL

VALVE - safety relief

1шт.

7

A20697

WIPER

CAP - safety relief valve

1шт.

8

A9320

VALVE - vapor return

1шт.

A40630

CAP and CHAIN

1шт.

9

F14581

"U" BOLT

4шт.

195-902

WASHER

- 1/2" malleable sq. beveled

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex., and l. w. (92-8) f. w. (195-33)

8шт.

10

A27685

TUBE - tank, Serial Range: valve-tee

4шт.

A26388

X

NUT - (not shown)

1шт.

222-1432

TEE - 3/8" #52 LB Imp. (left tank)

1шт.

222-564

TEE - 3/8" #84 LB Imp. (right tank)

1шт.

11

F14582

FUEL LINE -, Serial Range: tank-tank

1шт.

F14583

LOOM - for F14582

1шт.

12

F4123

BLOCK - tank

2шт.

13

F88244

SUPPORT - dual tank

1шт.

14

A26696

NO LONGER SERVICED

CLIP - fuel line

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., and nut (25-114)

1шт.

195-18

WASHER,1/4"

- flat, and lockwasher (92-4) 1/4"

1шт.

15

F14628

LOOM - for F13810

1шт.

16

F13810

FUEL LINE -, Serial Range: tank-filter

1шт.

17

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - 3/8" x 1/4" NPT #88 LB Imp. (for A24535)

2шт.

18

A24535

FILTER

- liquid (American Bosch #FLT 25 B1)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

19

F13809

BRACKET - filter

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

and nut (25-115) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

20

F12300

CLIP - fuel line

1шт.

21

F13906

FUEL LINE -, Serial Range: regulator-filter

1шт.

22

F14587

LOOM - for F13906

1шт.

23

F13907

CLIP - fuel line (for F9263)

1шт.

24

F9263

CLIP - fuel line (for F13906)

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., and nut (25-114)

1шт.

25

F87580

REGULATOR - vaporizer

1шт.

26

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - 3/8" x 1/4" NPT #88 LB Imp. (for F13906)

1шт.
