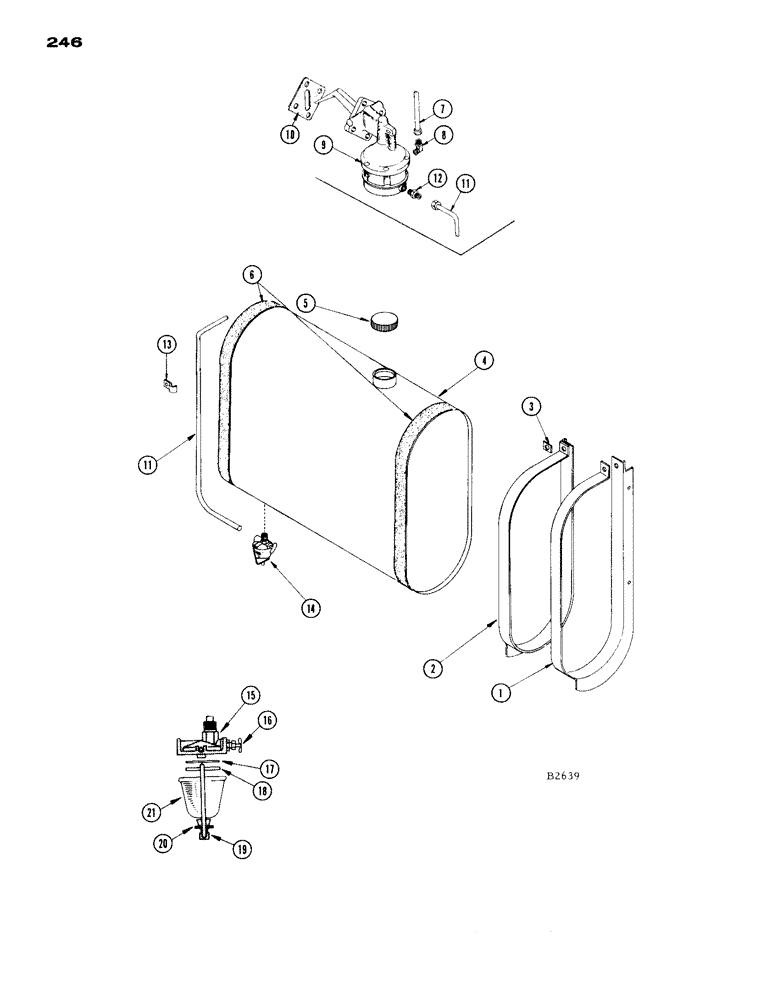

Запчасти Case IH 1660 (246) - FUEL TANK, STRAINER AND PUMP, GASOLINE ENGINE (10) - ENGINE

1

F87612

SUPPORT - rear, fuel tank

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex.

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

2

F87613

SUPPORT - front, fuel tank

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

3

F8190

WASHER - fuel tank strap

2шт.

4

F79391

FUEL TANK

1шт.

5

F6541

CAP

- fuel tank

1шт.

6

F11082

CUSHION - felt

2шт.

7

F13859

LINE - fuel, Serial Range: pump-carburetor

1шт.

222-4024

CONNECTOR - 5/16" O.D. x 1/8" NPT Imp. #68FL (carb.)

1шт.

222-113

TUBE NUT,9/16"-24

NUT - 5/16" O.D. Imp. #61FL

2шт.

222-103

SLEEVE,5/16" Tube

", Imp. #60FL 5/16" Tube

2шт.

8

222-4044

ELBOW

- 5/16" O.D. x 1/8" NPT, Imp. #69FL

1шт.

9

F86745

PUMP - fuel

1шт.

10

F14240

GASKET - fuel pump

1шт.

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8" x 1-3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

11

F14174

LINE - fuel, Serial Range: strainer-pump

1шт.

12

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" O.D. x 1/8" NPT, Imp. #68FL (both ends of F14174)

2шт.

13

F9263

CLIP - fuel line, for Ref. 11

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

15

A11214

HEAD

1шт.

16

A11205

VALVE

- needle

1шт.

17

A11211

FILTER SCREEN

SCREEN

1шт.

18

A11208

GASKET

- cork

1шт.

19

A11212

BAIL

1шт.

20

A11210

ADJUSTER

CAP and NUT

1шт.

21

A11209

BOWL

- glass

1шт.
