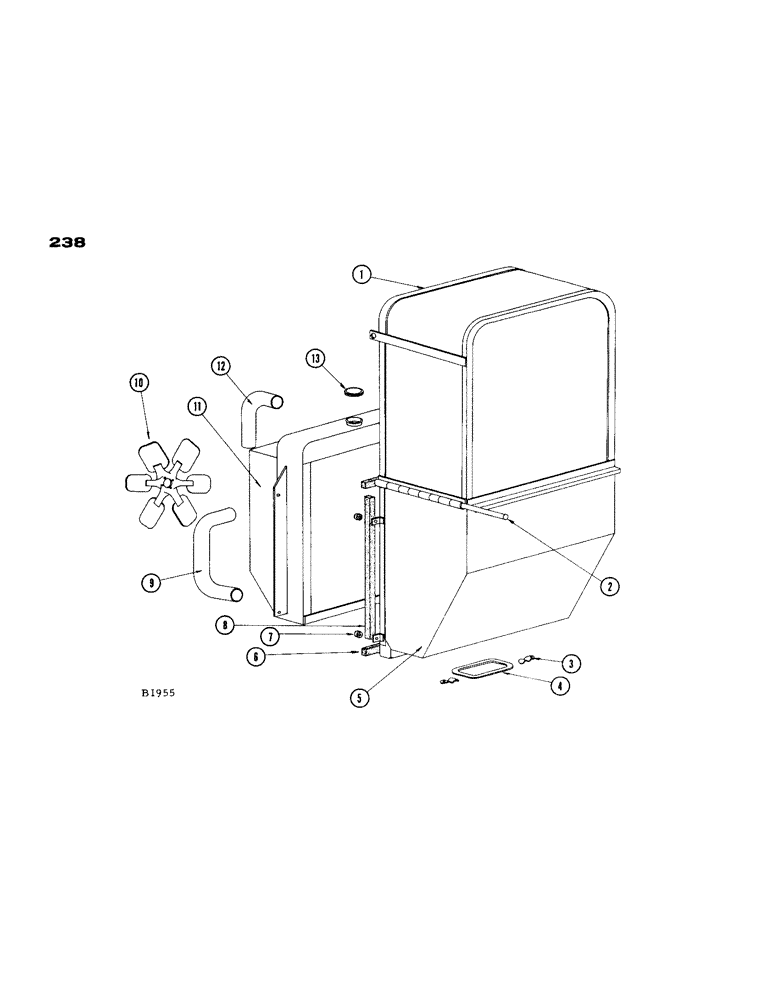

Запчасти Case IH 1660 (238) - RADIATOR FRAME AND SCREEN (10) - ENGINE

1

F86778

SCREEN - air

1шт.

2

F9318

ROD - hinge

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

F86525

CLIP

- access door

2шт.

151-123

RIVET - 3/16" x 1/4" #2160 semi-tub

2шт.

4

F8077

DOOR - access

1шт.

5

F86755

AIR STACK - radiator

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

129-404

WING NUT,1/4"-20

- 1/4" N.C.

2шт.

6

F12047

SEAL - top and bottom

2шт.

7

F10666

CUSHION - for radiator bracket

4шт.

8

F12057

SEAL - side

2шт.

9

F12675

RADIATOR HOSE,1.50" ID x 7.03", SAE 20R4

Lower 1.50" ID x 7.03", SAE 20R4

1шт.

214-22

X

CLAMP - #10-1/2 hose

2шт.

10

F86749

FAN - radiator

1шт.

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

92-5

LOCK WASHER,5/16"

4шт.

11

F13284

RADIATOR

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

4шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

8шт.

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" sq. pipe

1шт.

12

F14157

HOSE - radiator, top

1шт.

214-22

X

CLAMP - #10-1/2 hose

2шт.

13

F5922

CAP

- radiator pressure

1шт.
