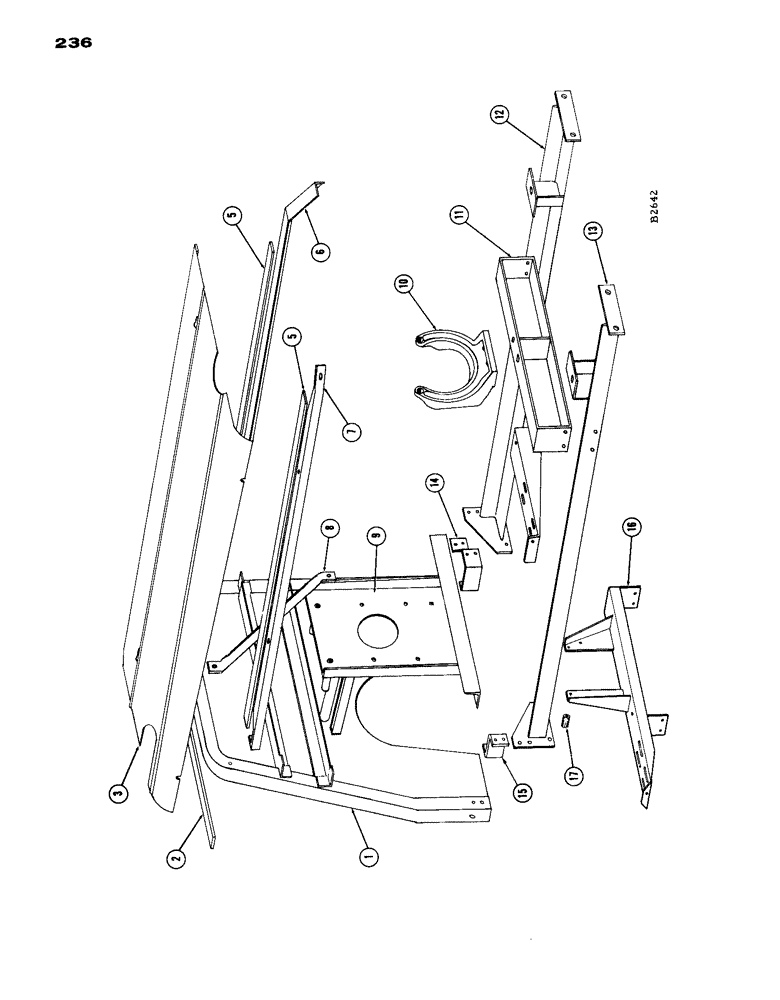

Запчасти Case IH 1660 (236) - ENGINE HOOD AND SUPPORTS (10) - ENGINE

1

F86748

FIREWALL - (Replaced by F88368 when stock is exhausted)

1шт.

F88368

FIREWALL - (Replaces F86748) Before #8359001

1шт.

F88523

FIREWALL - (#8359001 thru #8368000)

1шт.

F88893

FIREWALL - (#8368001 and after)

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex.

4шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

5шт.

2

F12933

SEAL - engine hood, L.H.

1шт.

3

F88898

HOOD - engine

1шт.

4

RESERVED

1шт.

5

F12733

SEAL - engine hood

2шт.

6

F86756

ANGLE - hood support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

7

F86757

ANGLE - hood support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

8

F12688

BRACE - engine firewall

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

NUT - 3/8" N.F. hex.

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

2шт.

9

F87576

MOUNT - engine, left (Before #8359001) Replaced by F88688 when stocks are exhausted

1шт.

F88688

MOUNT - engine, left (#8359001 and after) Replaces F87576

1шт.

10

F12649

BRACKET - right hand mounting (Before #8334601)

1шт.

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" x 3-1/2" N.C. hex.

1шт.

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8" x 3-1/4" N.C. hex.

3шт.

92-6

LOCK WASHER,3/8"

4шт.

11

F87574

MOUNT - engine, right (Before #8334601)

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

2шт.

195-25

WASHER,3/8"

- SAE std. flat 3/8"

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

12

F87578

RAIL - engine mounting, front (Before #8334601)

1шт.

F88390

RAIL - engine mounting, front (#8334601 and after)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

14-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

- 7/16" x 1" N.F. hex.

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

13

F87577

RAIL - engine mounting, rear (Before #8334601)

1шт.

F88389

RAIL - engine mounting, rear (#8334601 and after)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

14-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

- 7/16" x 1" N.F. hex.

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

O935L

SPACER - for F88389 and F88390 (Before #8368001)

2шт.

14

F11187

BRACKET - front motor hood, L.H.

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

92-5

LOCK WASHER,5/16"

2шт.

15

F30351

BRACKET - rear hood support L.H. (#8368001 and after)

1шт.

F10702

BRACKET - rear hood support L.H. (Before #8368001)

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

16

F88388

MOUNT - engine, right (#8334601 and after)

1шт.

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

17

F14863

SPACER - for 3/8" x 2-3/4" bolt of F88388

3шт.
