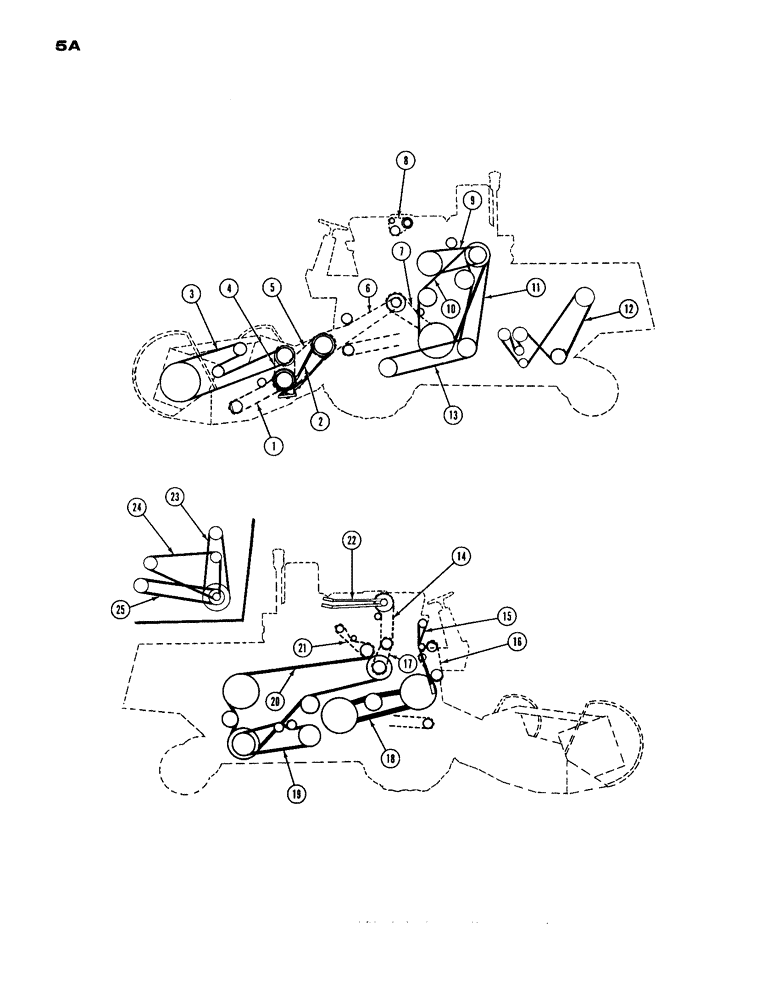

Запчасти Case IH 1660 (005[A]) - BELT AND CHAIN DRIVE REFERENCE (05) - SERVICE & MAINTENANCE

1

F11689

X

CHAIN - header auger drive

1шт.

2

F13540

"V" BELT - sickle drive (14 ft. header)

1шт.

F13541

BELT

Sickle Drive, 16 and 19 foot headers

1шт.

3

F13577

SCREW

"V" BELT - reel drive

1шт.

4

F30503

CHAIN - reel drive jackshaft drive (#8366851 and after)

1шт.

F13565

SCREW

CHAIN - reel drive jackshaft drive (std. header) (Before #8366851)

1шт.

F52649

X

CHAIN - reel drive jackshaft drive (pick-up header) (Before #8366851)

1шт.

5

F8392

CHAIN - main header drive (14 ft. - 16 ft. - 19 ft.)

1шт.

F30050

CHAIN - main header drive (20 ft. header)

2шт.

6

F87327

X

CHAIN - upper feed rake shaft drive

1шт.

7

F98032

CHAIN - beater drive

1шт.

8

F12469

CHAIN - grain elevator drive (#8368001 and after)

1шт.

F11247

CHAIN - grain elevator drive (Before #8368001)

1шт.

F14525

CHAIN - grain elevator drive (Hi-Speed)

1шт.

9

F11139

BELT

Drives Grain Bin Auger Drive Jackshaft

1шт.

10

F13799

BELT

"V" BELT - main combine drive

1шт.

F14857

V-BELT

Main Combine Drive, Pre-Stretched

1шт.

11

F13800

BELT

Traction Drive

1шт.

12

F13803

BELT

Rake, Strawwalker and Shoe Drive

1шт.

13

F13212

V-BELT

Variable Speed Traction Drive

1шт.

14

F11237

X

CHAIN - distribution auger drive

1шт.

F14632

CHAIN - distribution auger drive (Hi-Speed)

1шт.

15

F12633

"V" BELT - V.S. cylinder control

1шт.

16

F7904

X

CHAIN - discharge auger drive (tailings)

1шт.

17

F11149

X

CHAIN - distribution auger jackshaft drive

1шт.

18

F12604

V-BELT,1.75" W

Variable Speed Cylinder Drive 1.75" W

1шт.

19

F9468

BELT

Fan Drive, Standard and Slow speed

1шт.

F10269

BELT

Fan Drive, See F9468, High Speed Attachment

1шт.

20

F7865

BELT

Shoe and Grain Auger Drive

1шт.

21

F13872

CHAIN - grain bin auger drive

1шт.

22

F18303

V-BELT

V-BELT, Grain Bin Distribution Auger Drive

1шт.

23

F13894

BELT

"V" BELT - governor drive

1шт.

24

F12793

V-BELT

"V" BELT - engine fan and alternator

1шт.

25

F8047

BELT

Hydraulic Pump Drive

1шт.

F8549

"V" BELT - rear roller drive (pickup attachment)

1шт.

F12180

BELT

"V" BELT - strawchopper, rear

1шт.

F14230

BELT

"V" BELT - pickup jackshaft drive

1шт.

F19549

V-BELT,153.00" L

Front, Strawchopper, Front 153.00" L

1шт.

O2179CK

V-BELT 169.75" L, Straw spreader drive 169.75" L

1шт.

B12470

CHAIN (AG)

CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #40 roller chain)

1шт.

B12471

CHAIN (AG)

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #40 roller chain)

1шт.

B12472

CHAIN (AG)

CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #40 roller chain)

1шт.

B12473

CHAIN (AG)

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #40 roller chain)

1шт.

B12474

CHAIN (AG)

CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #50 roller chain

1шт.

B12475

CHAIN (AG)

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #50 roller chain)

1шт.

B12476

CHAIN (AG)

CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #50 roller chain)

1шт.

B12477

CHAIN (AG)

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #50 roller chain)

1шт.

B12478

CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #60 roller chain)

1шт.

B12479

CHAIN (AG)

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #60 roller chain)

1шт.

B12480

CHAIN (AG)

CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #60 roller chain)

1шт.

B12481

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #60 roller chain)

1шт.

B12482

CLIP

CLILP - spring, for B12509 conn. link (Pkg. of 25)

1шт.

B12483

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #CA-2040 roller chain)

1шт.

B12484

CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #Ca-2-4- roller chain)

1шт.

B12485

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #CA-2040 roller chain)

1шт.

B12486

CHAIN (AG)

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #A-2040 roller chain)

1шт.

B12487

CHAIN SECTION - (contains 9 riveted links, 1 conn. link #A-2040 roller chain)

1шт.

B12488

CHAIN (AG)

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #A-2040 roller chain)

1шт.

B12501

LINK

- connecting, #40 roller chain

1шт.

B12502

OFFSET LINK

LINK - offset, #40 roller chain

1шт.

B12503

ROLLER

LINK - roller, #40 roller chain

1шт.

B12504

CLIP - spring, for B12501 conn. link (Pkg. of 25)

1шт.

B12505

LINK

- connecting, #50 roller chain

1шт.

B12506

LINK

- offset, #50 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, #50 roller chain

1шт.

B12508

CLIP

- spring, for B12505 conn. link (Pkg. of 25)

1шт.

B12509

DRAG LINK

LINK - connecting, #60 roller chain

1шт.

B12510

CHAIN LINK

LINK - offset, #60 roller chain

1шт.

B12511

LINK

- roller, #60 roller chain

1шт.

B12512

CONNECTOR, ELEC

LINK - connecting, #CA-2040 roller chain

1шт.

B12513

LINK - roller, #CA-2040 roller chain

1шт.

B12514

LINK

LIN - connecting, #A-2040 roller chain

1шт.

B12513

LINK - offset, #A-2040 roller chain

1шт.

B12516

LINK

- roller, #A-2040 roller chain

1шт.

B12517

CHAIN (AG)

CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #CA-2050 roller chain)

1шт.

B12518

CHAIN (AG)

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #CA-2050 roller chain)

1шт.

B12519

CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #CA-2050 roller chain)

1шт.

B12520

CHAIN (AG)

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #CA-2050 roller chain)

1шт.

B12521

LINK

- connecting, #CA-2050 roller chain

1шт.

B12522

LINK

- offset, #CA-2050 roller chain

1шт.

B12523

DRAG LINK

LINK - roller, #CA-2050 roller chain

1шт.

B13030

HARDWARE

ROLLER CHAIN - #40 - 10 ft. roll (240 links)

1шт.

B13031

CHAIN (AG)

ROLLER CHAIN - #50 - 10 ft. roll (192 links)

1шт.

B13032

CHAIN

ROLLER CHAIN - #60 - 10 ft. roll (160 links)

1шт.

B17102

CHAIN (AG)

ROLLER CHAIN - #CA-2040, 10 ft. roll (120 links)

1шт.

B17103

CHAIN (AG)

ROLLER CHAIN - #A-2040, 10 ft. roll (120 links)

1шт.

B17104

CHAIN (CE)

ROLLER CHAIN - #CA-2050, 10 ft. roll (100 links)

1шт.

B17138

CHAIN (AG)

CHAIN SECTION - (Contains 5 riveted links, 1 conn. link #80 roller chain)

1шт.

B17139

LINK

CHAIN SECTION - (Contains 9 riveted links, 1 conn. link #80 roller chain)

1шт.

B17140

CHAIN SECTION - (Contains 19 riveted links, 1 conn. link #80 roller chain)

1шт.

B17141

LINK

CHAIN SECTION - (Contains 49 riveted links, 1 conn. link #80 roller chain)

1шт.

B17157

LINK

- connecting, #80 roller chain

1шт.

B17158

CHAIN (AG)

ROLLER CHAIN - #80, 10 ft. roll

1шт.

K3497

LINK

- offset, #80 roller chain

1шт.

D24870

LINK

- roller, #80 roller chain

1шт.

B15926

LINK

CHAIN - 10 ft. roll, #25 steel

1шт.

F7904

X

CHAIN - discharge auger drive (27 riveted, 1 offset and 1 conn. link) Use 1-B12487, 3-B12488 and 1-B12515 offset link #A-2040 roller chain or make from B17103

1шт.

F8392

CHAIN - main header drive (147 riveted, 2 offset and 1 conn. link) Use 2-B12478, 2-B12479, 1-B12481 chain, 1-B12509 conn. link, 2-B12510 offset links and 1-B12511 roller links #60 roller chain or make from B13032

1шт.

F8655

X

CHAIN - lower roller drive, Pickup Attachment (53 riveted, 3 offset and 1 conn. link) Use 2-B12483, 2-B12485 #CA-2040 chains, 1-B12512 conn. link, 1-B12513 roller link and 3-B12515 offset links #A-2040 or make from B17102

1шт.

F9024

X

CHAIN - cylinder drive

1шт.

F11149

X

CHAIN - distribution auger jackshaft drive (75 riveted, 2 offset and 1 conn. link) Use 1-B12470, 1-B12471, 1-B12473 chain and 2-B12502 offset links #40 or make from B13030

1шт.

F11237

X

CHAIN - distribution auger drive (181-riveted, 1-conn. link) Use 3-B12470, 1-B12471, 1-B12472 chain, 1-B12503 roller link and 1-B12501 conn. link #40 or cut from B13030 (Before #8366851)

1шт.

F14979

CHAIN - distribution auger drive (235-riveted, 1-conn. link) Use 4-B12470, 1-B12471, 1-B12472 and 1-B12473 or cut from B13030 (#8366851 and after)

1шт.

F11247

CHAIN - grain elevator drive (67-riveted, 1-offset, 1-conn. link) Use 1-B12470, 1-B12472, 1-B12473 chain, 1- B12503 roller, 1-B12502 offset and 1-B12501 conn. link #40 or cut from B13030 (Before #8368001)

1шт.

F12469

CHAIN - grain elevator drive (71-riveted, 1-offset, 1-conn. link) Use 1-B12470, 1-B12472, 2-B12473 and 1-B12502 offset link #40 or cut from B13030 (#8368001 and after)

1шт.

F11689

X

CHAIN - header auger drive (89 riveted, 2 offset and 1 conn. link) Use 1-B12478, 1-B12479, 2-B12480 chains and 2-B12510 offset links #60 or make from B13032

1шт.

F12378

X

CHAIN - ScourKleen drive (105 riveted, 4 offset and 1 conn. link) Use 2-B12470, 1-B12473 chain and 4-B12502 offset links #40 or make from B13030

1шт.

F12379

X

CHAIN - grain elevator drive extension (71 riveted, 4 offset and 1 conn. link) Use 1-B12470, 1-B12471 chain, 4-B12502 offset, 1-B12503 roller and 1-B12501 conn. link #40 or make from B13030

1шт.

F13565

SCREW

CHAIN - drives reel drive jackshaft (77-riveted, 2-offset, 1- conn. link, 5-riveted, 1-offset, 1-conn. link) Use 1- B12474, 1-B12476, 4--B12477 chains and 3-B12506 offset links #50 roller chain or cut from B13031 (Before #8366851)

1шт.

F98032

CHAIN - beater drive

1шт.

F13872

CHAIN - grain bin auger drive (115 riveted and 1 conn. link) Use 2-B12474, 1-B12476 and 1-B12477 #50 roller chains or make from B13031

1шт.

F14525

CHAIN - grain elevator drive-Hi-Speed (61 riveted, 1 offset and 1 conn. link) Use 1-B12470, 2-B12473 chains and 1-B12502 offset link #40 or cut from B13030

1шт.

F14632

CHAIN - distribution auger drive - Hi-Speed - (167 riveted, 1 offset and 1 conn. link) Use 3-B12470, 3-B12473 chains and 1-B12502 offset link #40 or cut from B13030

1шт.

F30050

CHAIN - main header drive - 20 ft. hdr. (91 - riveted and 1-conn. link) use 1-B12478, 1-B12479, 1-B12480 and 2-B12481 chain #60 or make from B13032

2шт.

F52649

X

CHAIN - drives reel drive jackshaft, pick-up header (73- riveted, 1-offset, 1-conn. link) Use 1-B12474, 4- B12477 chain and 1-B12506 offset link #50 roller chain or cut from B13031 (Before #8366851)

1шт.

F30503

1шт.

CHAIN - drives reel drive jackshaft (73-riveted, 4-spring clip connectors, 1-plain link, 1-offset link, 2 sets of: 5- riveted links) Use 1-B12474, 1-B12476, 2-B12477, 1- B12506, 4-B12508, 2-B12477 and 1-B12507 #50 roller chain or cut from B13031 (#8366851 and after)

1шт.

F87327

X

CHAIN - drives upper feed rake shaft (101 riveted, 1 offset and 1 conn. link) Use 2-B17141 chains, 1-D24870 roller link, 1-K3497 offset link and 1-B17157 conn. link #80 roller chain or cut from B17158

1шт.

O895CB

X

CHAIN - pickup main drive (73 riveted, 1 offset and 1 conn. link) Use 1-B12474, 4-B12477 chains and 1-B12506 offset link #50 roller chain or make from B13031

1шт.

F11165

RUBBER FLIGHT

FLIGHT - rubber, 5 inch

1шт.

NSS

NOT SOLD SEPARAT

FLIGHT - steel (see F79708), 5 inch

1шт.

F79708

STEEL FLIGHT

CHAIN and STEEL FLIGHT - special (Consists of chain and 1 flight), 5 inch

1шт.

F79799

RUBBER FLIGHT

CHAIN and FLIGHT - (Consists of chain and flight), 5 inch

1шт.

F86419

CHAIN and FLIGHT - (Consists of chain and 2 flights), 5 inch

1шт.

F86421

CHAIN and FLIGHT - (Consists of chain and 5 flights), 5 inch

1шт.

F86423

CHAIN (AG)

CHAIN and FLIGHT - (Consists of chain and 10 flights), 5 inch

1шт.

F86425

CHAIN (CE)

CHAIN and FLIGHT - (Consists of chain and 20 flights), 5 inch

1шт.

NSS

NOT SOLD SEPARAT

FLIGHT - rubber (see F77894), 7 inch

1шт.

F11479

FLIGHT - steel (see F79706), 7 inch

1шт.

F77894

CHAIN and FLIGHT - (Consists of chain and 1 flight), 7 inch

1шт.

F78446

CHAIN and FLIGHT - (Consists of chain and 2 flights), 7 inch

1шт.

F79706

CHAIN and STEEL FLIGHT - special (Consists of chain and 1 flight), 7 inch

1шт.

F86420

CHAIN and FLIGHT - (Consists of chain and 5 flights), 7 inch

1шт.

F86422

CHAIN and FLIGHT - (Consists of chain and 10 flights), 7 inch

1шт.

F86424

CHAIN and FLIGHT - (Consists of chain and 20 flights), 7 inch

1шт.

F88527

CHAIN and FLIGHT, 5 inch

1шт.

F22711

PLOW BOLT

FLIGHT - (rubber), 5 inch

1шт.

NSS

NOT SOLD SEPARAT

CHAIN- (consists of 1 attaching and 2 roller links), 5 inch

1шт.

F54319

LINK

- connecting, 5 inch

1шт.

F10673

LINK

- offset, 5 inch

1шт.

F10818

LINK

- roller, 5 inch

1шт.

F92261

PINS and COTTERS - Pkg. of 25, 5 inch

1шт.

F88528

CHAIN and FLIGHT, 7 inch

1шт.

F14984

FLIGHT - (rubber), 7 inch

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - (consists of 1 attaching & 2 roller links), 7 inch

1шт.

F88529

CHAIN and FLIGHT, 7 inch

1шт.

F14985

FLIGHT - (steel), 7 inch

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - (consists of 1 attaching & 2 roller links), 7 inch

1шт.

F54319

LINK

- connecting, 7 inch

1шт.

F10673

LINK

- offset, 7 inch

1шт.

F10818

LINK

- roller, 7 inch

1шт.

F92261

PINS and COTTERS - Pkg. of 25, 7 inch

1шт.
